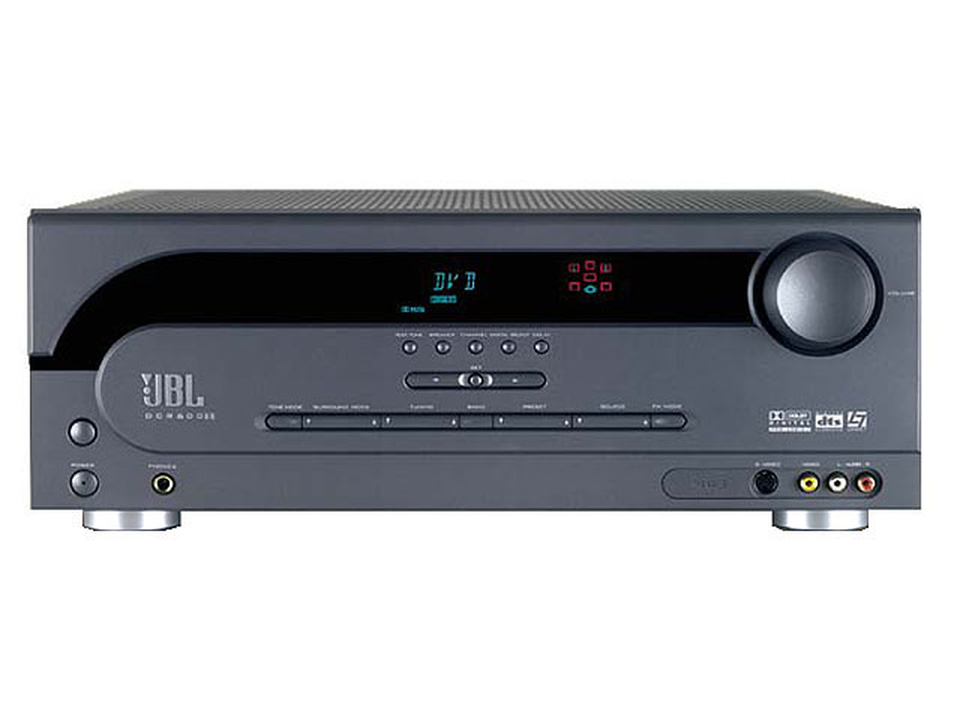

DCR 600 II

Dolby Digital/DTS Receiver w/Logic 7 Decoding. Part of the CINEMA PROPACK 600 II system.

Verkauft von 2002 bis 2002

Dokumente & Downloads

Benutzerhandbücher

Bedienungsanleitung (Englisch) 3.91 MB

Kurzanleitung

Kurzanleitung (Englisch)

Produktdetails

Allgemeine Spezifikationen

Unit Power Consumption: 72W idle, 580W maximum

Audio Spezifikationen

Two-Channel Stereo Mode: 100W per channel continuous RMS power into 8 ohms @ 0.08% THD, 80Hz – 20kHz

Five-Channel Cinema Mode: 100W per channel dynamic RMS power into 8 ohms @ 0.08% THD, 80Hz – 20kHz (Plus 100W into 8 ohms @ 0.08% THD, 20Hz to 80Hz for subwoofer)

Input Level/Impedance: 200mV/47k ohms

Signal-to-Noise Ratio: 95dBA

Surround System Adjacent Channel Separation: Analog Decoding – 40dB Dolby Digital – 55dB DTS – 55dB

Frequency Response: 10Hz – 100kHz(+0/–3dB)

Abmessungen

Weight: 31 lb (14.1kg)

Dimensions: Width... 17.3 inches (440mm); Height... 6.5 inches (165mm); Depth... 17.1 inches (435mm)

Videospezifikationen

Video Formats: NTSC

Input Level/Impedance: 1Vp-p/75 ohms

Output Level/Impedance: 1V/75 ohms

Video Frequency Response: 10Hz – 8MHz (–3dB)

Tuner Specifications

Frequency Range: AM... 520kHz – 1710kHz

Frequency Range: FM... 87.5 – 108MHz

Signal-to-Noise Ratio: AM... 45dB

Usable Sensitivity: FM... 1.3µV/13.2dBf

Signal-to-Noise Ratio: FM... 70dB (mono) 68dB (stereo)

Usable Sensitivity: AM... 500µV (loop)

Distortion: AM... 0.8% (1kHz, 50% Modulation)

Distortion: FM... 0.2% (mono) 0.3% (stereo)

Selectivity: AM... ± 10kHz, 30dB

Stereo Separation: FM... 40dB @ 1kHz

Selectivity: FM... ± 400kHz, 70dB

Image Rejection: FM... 80dB

IF Rejection: FM... 90dB

Tuner Output Level: FM... 500mV @ 1kHz, ±75kHz Deviation

Part of the JBL Cinema ProPack 600II system, the DCR600II A/V receiver packs a whalloping punch of 5 times 100 watts per channel, plus a sixth dedicated subwoofer channel that supplies 100 watts to any passive subwoofer added to this unit. With Dolby Digital, Dolby Pro Logic II, DTS and Logic 7 decoding, the DCR600II can handle just about any movie, and play it back the way you want to hear it.
