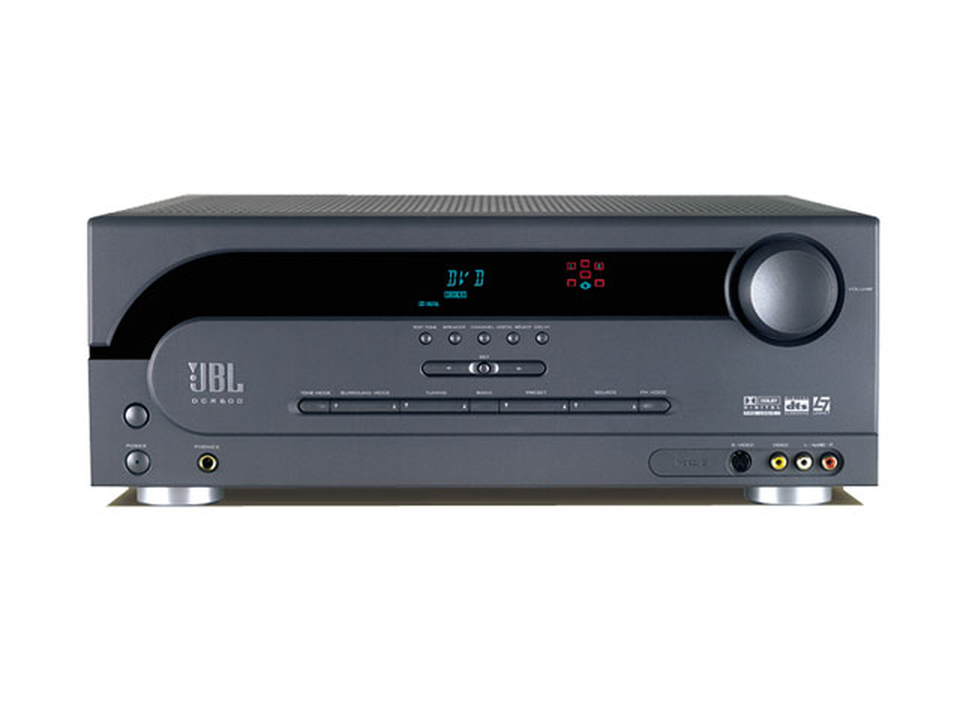

DCR 600

100W x 5 Dolby Digital/DTS Receiver With Logic 7, VMAx and MP3 Decoding. Part of the CINEMA PROPACK 600 system.

Verkauft von 2001 bis 2001

Dokumente & Downloads

Benutzerhandbücher

Bedienungsanleitung (Englisch) 1.24 MB

Anderes

Packaging and Accessories (Englisch) 25.48 KB

Produktdetails

Allgemeine Spezifikationen

Unit Power Consumption: 72W idle, 580W maximum

Audio Spezifikationen

Two-Channel Stereo Mode: 75W per channel continuous RMS power into 8 ohms @ 0.08% THD, 100Hz – 20kHz (frequencies below 100Hz are handled by SCS135S powered subwoofer)

Five-Channel Cinema Mode: 100W per channel dynamic RMS power into 8 ohms @ 0.08% THD, 100Hz – 20kHz (frequencies below 100Hz are handled by SCS135S powered subwoofer)

Input Level/Impedance: 200mV/47k ohms

Signal-to-Noise Ratio: 95dB

Surround System Adjacent Channel Separation: Analog Decoding – 40dB Dolby Digital – 55dB DTS – 55dB

Frequency Response: 10Hz – 100kHz (+0/–3dB)

Abmessungen

Width: 17.3 inches (440mm)

Height: 6.5 inches (165mm)

Depth: 17.1 inches (435mm)

Weight: 31 lb (14.1kg)

Videospezifikationen

Video Formats: NTSC

Input Level/Impedance: 1Vp-p/75 ohms

Output Level/Impedance: 1V/75 ohms

Video Frequency Response: 10Hz to 8MHz (–3dB)

Tuner Specifications

Frequency Range: AM... 520 – 1710kHz

Frequency Range: FM... 87.5 – 108MHz

Signal-to-Noise Ratio: AM... 45dB

Usable Sensitivity: FM... 1.3µV/13.2dBf

Signal-to-Noise Ratio: FM... 70dB (mono) 68dB (stereo)

Usable Sensitivity: AM... 500µV (loop)

Distortion: AM... 0.8% (1kHz, 50% Modulation)

Distortion: FM... 0.2% (mono) 0.3% (stereo)

Selectivity: AM... ± 10kHz, 30dB

Stereo Separation: FM... 40dB @ 1kHz

Selectivity: FM... ± 400kHz, 70dB

Image Rejection: FM... 80dB

IF Rejection: FM... 90

Tuner Output Level: FM... 500mV @ 1kHz, ±75kHz Deviation

Packed with features, the DCR600 includes Dolby Digital and DTS decoding; Logic 7 Cinema and Music surround modes; two modes of VMAx virtual surround sound; MP3 decoding; Dolby Pro Logic, Dolby 3 Stereo, 5-Channel Stereo and Theater surround modes; 192kHz/24-Bit output DACs; five digital inputs, including 2 on the front panel; two digital outputs; four A/V inputs with S- and Composite video; two analog audio inputs; an FM Stereo/AM tuner with 30 presets; and programmable power-up volume.
