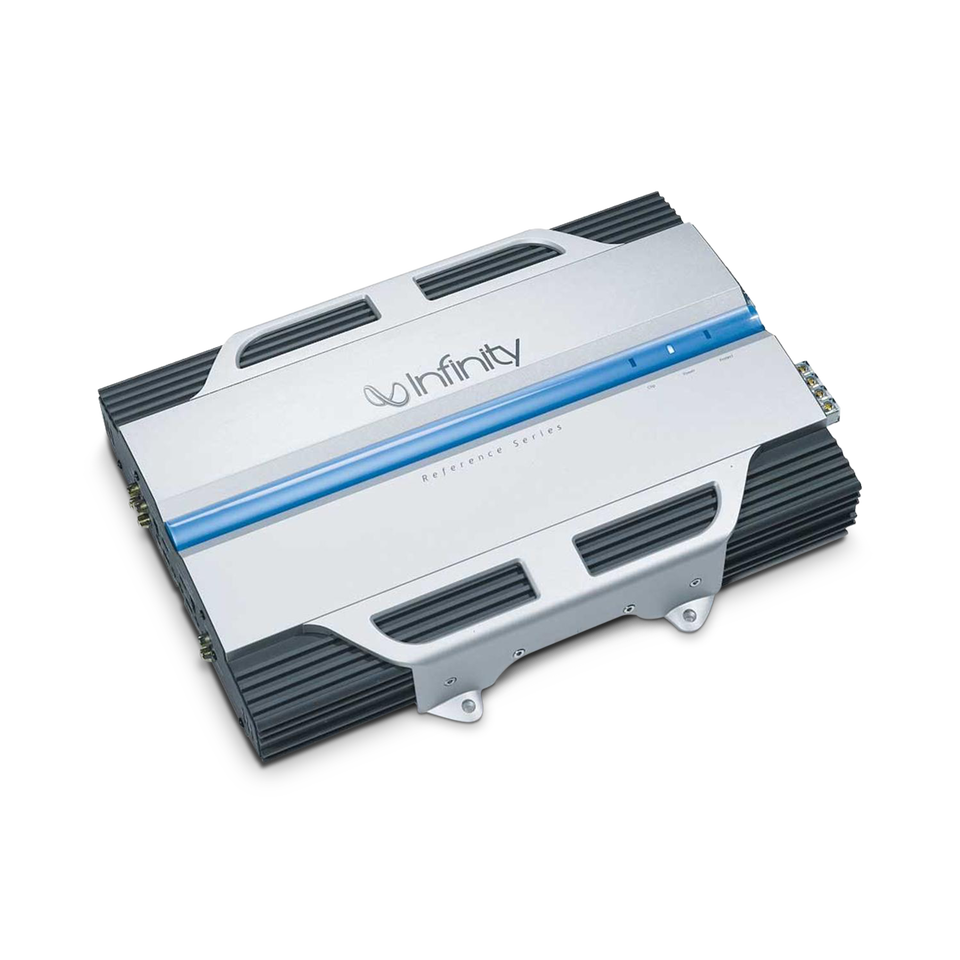

REFERENCE 1211A

REFERENCE 1211A

Subwoofer Amplifier - Digital (854 watts x 1)

Documents & Downloads

Product Specifications

Total Power
1516 Total Watts
RMS
4 ohms, 854 watts x 1 channel. 2 ohms, 1300 watts x 1 channel.
Dimensions
18-1/2" L x 12" W x 2-11/16" H
RMS
Power @ 4 ohms 854 watts x 1 channels
RMS
Power @ 2 ohms 1300 watts x 1 channels
Number of Channels
1 - Mono
Total Peak Power Output
1516 watts
Total RMS Power Output
1300 watts
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
< 1%
Preamp Outputs
Yes
Low-Pass Crossover Frequency
32 - 320 Hz
Signal-to-Noise Ratio
72A dB
Bass Boost
Dynamic Bass Optimizer
CEA Rated
Yes
Amplifier Power (RMS)
1300 watts x 1 channel @ 2 ohms, 14.4V supply and ≤1% THD + N
Amplifier Power (RMS)
854 watts x 1 channel @ 4 ohms, 14.4V supply and ≤1% THD + N
Signal-to-Noise Ratio
72 dBA (reference 1 watt into 4 ohms)
Dynamic Power
1516 watts @ 2 ohms
Effective Damping Factor
6.357 @ 4 ohms
Frequency Response
17Hz – 302Hz (-3dB)
Maximum Input Signal
5.7V
Input Sensitivity
MAXIMUM... 260mV
Output Regulation
.132 dB @ 4 ohms
MSRP U.S.
$574.95 each
Amp Bluetooth
Connectivity

1200 Watt Mono sub Amp Class D

1200 Watt Class D Subwoofer Amplifier
