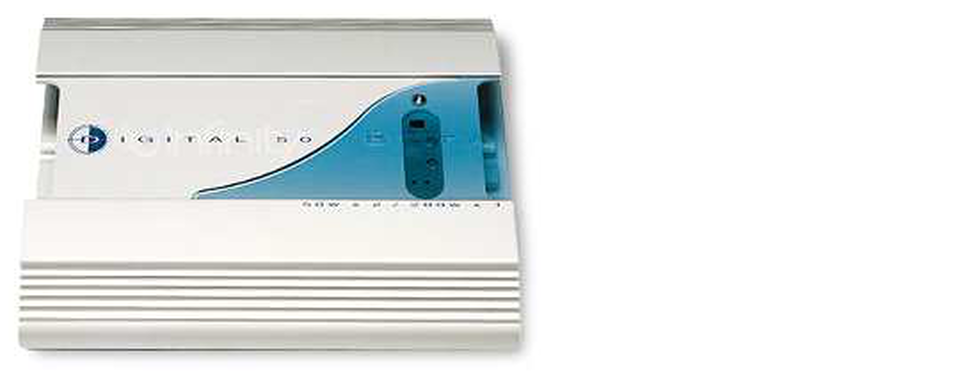

BETA DIGITAL 50

2-Channel Power Amplifier - Digital (50 watts x 2)

Documents & Downloads

Manuals

Owners Manual (English) 494.04 KB

Product Specifications

General Specifications

Output 4 Ohms: 50w x 2

Output 2 Ohms: 100w x 2

Output 4 Ohms Bridged: 200w x 1

Signal-to-Noise Ratio: >90dB

Frequency Response: 20Hz – 20kHz (±3dB)

Channel Separation: >50dB

Simultaneous Stereo/Mono: Yes

Variable Bass Boost: No

Preamp Level Inputs: Yes

Preamp Outputs: No

Input Sensitivity: LINE... 250mV – 9v

Operating Range: 11 – 16 VDC

MSRP U.S.: $499.95 each

Operating Range 11 - 16 VDCBalanced Differential Input Stage YesLine Level Sensitivity 250mV - 9vPreamp Outputs NoPreamp Level Inputs YesVariable Bass Boost NoSimultaneous Stereo/Mono YesChannel Separation (dB) >50dBFrequency Response 20Hz - 20kHzSignal to Noise (dBA) >90dBOutput 4 Ohms Bridged 200w x 1Output 2 Ohms 100w x
