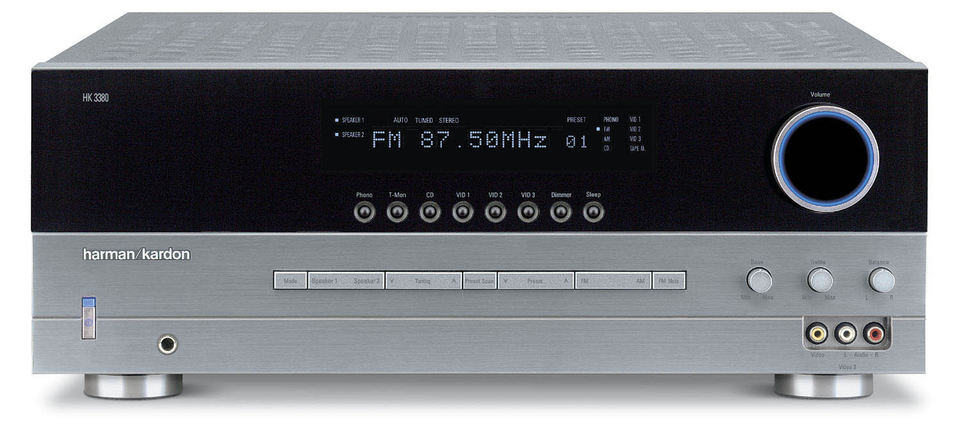

HK 3380

HK 3380

Stereo Receiver (80 watts x 2)

Sold from 2004 until 2007

Predecessor Product: HK 3375
Successor Product: HK 3385
Made in: China

Documents & Downloads

Product Specifications

Power Requirements
AC 120V/60Hz
Power Consumption
3W standby, 200W maximum (both channels driven)
Digital Inputs (coaxial/optical)
None
Analog Inputs
1 A/V on front panel
Analog Inputs
3 A/V on rear panel
Analog Inputs
3 audio-only
Analog Inputs
tuner
On-Screen Display
No
Multizone Capability
Speaker A/B switch
Remote Control
Five-device system remote
Shipping Weight (System, Accessories, Packing)
25.1 lb (11.41kg)
MSRP U.S.
$349.95 each
# of Amplifier Channels
2
Stereo Mode:
Continuous Average Power (FTC) per Channel
80 Watts per channel, 20Hz – 20kHz @ <0.07% THD, both channels driven into 8 ohms 100 Watts per channel, 20Hz – 20kHz @ <0.2% THD, both channels driven into 4 ohms
Input Level/Impedance
200mV/47k ohms - Linear (High-Level)
Signal-to-Noise Ratio
95dB (IHF-A)
Frequency Response
10Hz – 110kHz (+0/-3dB @ 1 watt)
Transient Intermodulation Distortion (TIM)
Unmeasurable
Rise Time
16µsec
Slew Rate
40V/µsec
Width
17.4 inches (442mm)
Height
6.6 inches (168mm)
Depth
15 inches (382mm)
Weight
20.9 lb (9.48kg)
Dimensions:
Carton Dimensions
21.5 inches x 9.9 inches x 17.9 inches (545mm x 251mm x 455mm)
Television Format
NTSC/PAL/SECAM
Signal Format System
Composite
Input Level/Impedance
1Vp-p/75 ohms, unbalanced
Sync Polarity
Negative
Output Level/Impedance
1V/75 ohms, unbalanced
Video Frequency Response
10Hz – 10MHz
Frequency Range
AM... 520 – 1710kHz
Frequency Range
FM... 87.5 – 108MHz
Signal-to-Noise Ratio
AM... >40dB
Usable Sensitivity
FM... IHF 1.12µV/13.5dBf
Signal-to-Noise Ratio
FM... Mono/Stereo 73/72dB
Usable Sensitivity
AM... Loop 500µV/M
Distortion
AM... 1kHz, 50% Mod 0.8%
Distortion
FM... Mono/Stereo 0.3/0.4%
Selectivity
AM... ± 10kHz, >25dB
Stereo Separation
FM... 40dB @ 1kHz
Selectivity
FM... ± 400kHz, 65dB
Image Rejection
FM... >80dB
IF Rejection
FM... >100dB
Tuner Output Level
FM... 1kHz, ±100kHz, Dev 500mV
Amplifier Power (RMS)
80 x 2 @ 8 ohms, (20Hz – 20kHz, <0.07% THD) (all channels driven at full power)
High Instantaneous Current Capability (HCC)
± 42 Amps

Perfect for a main music system, the HK 3380 uses the same discrete high-current, ultrawide-bandwidth-amplifier technology found in our AVR Series receivers. It also has four video inputs (including one on the front panel), a multicomponent system remote control, a 30-preset AM/FM section, a phono preamp, a subwoofer output, a dimmable fluorescent display, pre-out/main-in jacks and even a nine-step, 90-minute sleep timer.
