Support Overview / Speakers / In-Wall / In-Ceiling / ERS 110

ERS 110

2-Way 6-1/2 inch Round In-Wall/Ceiling Speaker

Documents & Downloads

Other

DIY Troubleshooting (English) 314.27 KB

Product Specifications

General Specifications

Finish: White

Technology: CMMD

Frequency Response: 52Hz – 20kHz (±3dB)

Recommended Amplifier Power (RMS): 125 watts

Sensitivity (2.83 volts @ 1 meter): 89dB

Nominal Impedance: 8 ohms

Crossover Frequency(ies): 2300Hz; 24dB/octave

Low-Frequency Transducer (Woofer): 6-1/2 inch (165mm) CMMD

High-Frequency Transducer (Tweeter): 3/4 inch (19mm) CMMD

MSRP U.S.: $329.95 per pair

Dimensions

Weight: 3.1 lb (1.4kg)

Dimensions: Diameter... 9-3/16 inch (233mm)

Mounting Depth: 3-1/2 inch (89mm)

Cutout Dimensions: 7-7/8 inch (200mm)

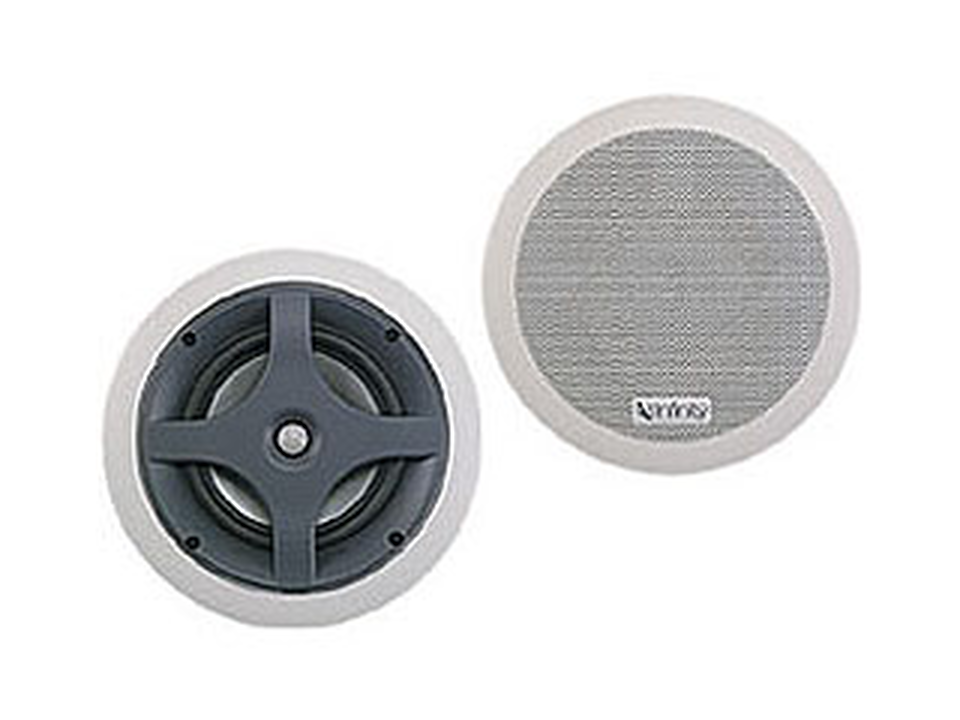

The ERS 110 is a round 2-way in-wall/ceiling speaker for use in a wide variety of applications, from stereo and whole-house music systems to complete home theaters. The ERS 110 incorporates Infinity's patented Ceramic Metal Matrix Diaphragm (CMMD;) technology to eliminate unwanted resonances and deliver clear, undistorted sound. The ERS 110 also incorporates a proprietary waveguide design to ensure smooth distribution of sound throughout the listening area. The white grilles and frames are paintable and allow the speakers to blend into any decor.
