CASCADE MODEL 9

CASCADE MODEL 9

Dual 7-3/4 inch x 3-3/8 inch Flat-Panel Drivers 2-way Floorstanding Loudspeaker

Documents & Downloads

Product Specifications

Finish
Real-Wood Cherry Veneer, High-Gloss Black, High-Gloss Silver
Technology
CMMDMRS Driver
Frequency Response
80Hz – 20kHz (±3dB)
Frequency Response
72Hz – 40kHz (-6dB)
Recommended Amplifier Power (RMS)
10 – 150 Watts
Sensitivity (2.83 volts @ 1 meter)
87dB
Nominal Impedance
8 ohms
Crossover Frequency(ies)
1,500Hz; 24dB/octave
Low-Frequency Transducer (Woofer)
Dual 7-3/4 inch x 3-3/8 inch (197mm x 85mm) CMMD, magnetically shielded
High-Frequency Transducer (Tweeter)
1 inch (25mm) CMMD
FinishEU
Real-Wood Cherry Veneer, High-Gloss Black
MSRP U.S.
$999.95 each
Weight
28.2 lb (12.8kg)
Dimensions (H x W x D)
47 inch x 10-1/2 inch x 11-1/2 inch (1194mm x 267mm x 292mm)

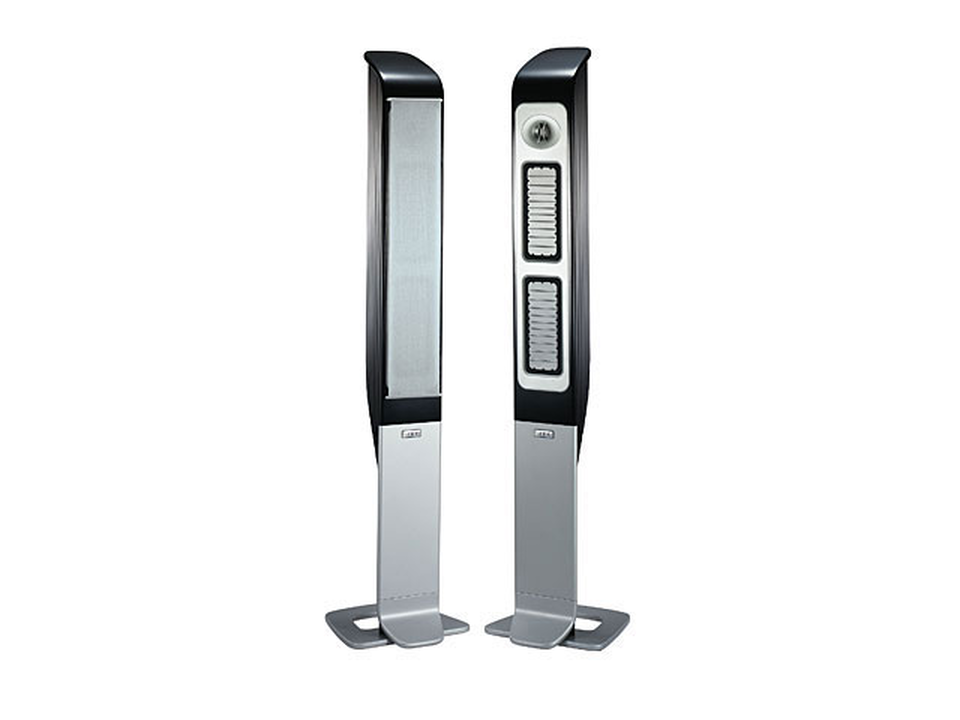

The Infinity Cascade; Model Nine floorstanding loudspeaker utilizes two patent-pending Maximum Radiating Surface (MRS) flat-panel drivers with Ceramic Metal Matrix Diaphragms (CMMD) and a 1 inch CMMD tweeter mounted in Infinity's proprietary Constant Acoustic Impedance; (CAI;) waveguide to deliver uncompromising sonic performance from a strikingly beautiful loudspeaker. The Cascade Model Nine is magnetically shielded and available in a choice of real-wood cherry veneer, high-gloss black or high-gloss silver finish.
