Product Specifications
- Frequency Response
- 35Hz – 20kHz (–6dB)
- Weight
- CENTER... 1.89 lb (0.86kg)
- Weight
- SATELLITES... 1.1 lb (0.5kg)
- Weight
- SUBWOOFER... 30 lb (13.6kg)
- Dimensions
- CENTER... Width... 7.63 inches (194mm) Height... 3.25 inches (83mm) Depth... 3.75 inches (95mm)
- Dimensions
- SATELLITES... Width... 3.19 inches (81mm) Height... 4.38 inches (111mm) Depth... 3.75 inches (95mm)
- Dimensions
- SUBWOOFER... Width... 13 inches (330mm) Height... 15 inches (381mm) Depth... 14 inches (356mm)
- Configuration
- Floor-firing, bass-reflex ported enclosure
- Subwoofer Transducer
- 8 inch cone
- Configuration
- 2-Way, video-shielded
- Recommended Amplifier Power (RMS)
- Use with DCR600II only
- Nominal Impedance
- 8 ohms
- Sensitivity (1 watt @ 1 meter)
- 86dB
- High-Frequency Transducer (Tweeter)
- One 1/2 inch titanium-laminate cone
- Midrange Transducer
- One 3 inch cone
- Configuration
- 2-Way, video-shielded
- Recommended Amplifier Power (RMS)
- Use with DCR600II only
- Nominal Impedance
- 8 ohms
- Sensitivity (1 watt @ 1 meter)
- 86dB
- High-Frequency Transducer (Tweeter)
- One 1/2 inch titanium-laminate dome
- Midrange Transducer
- Dual 3 inch cones

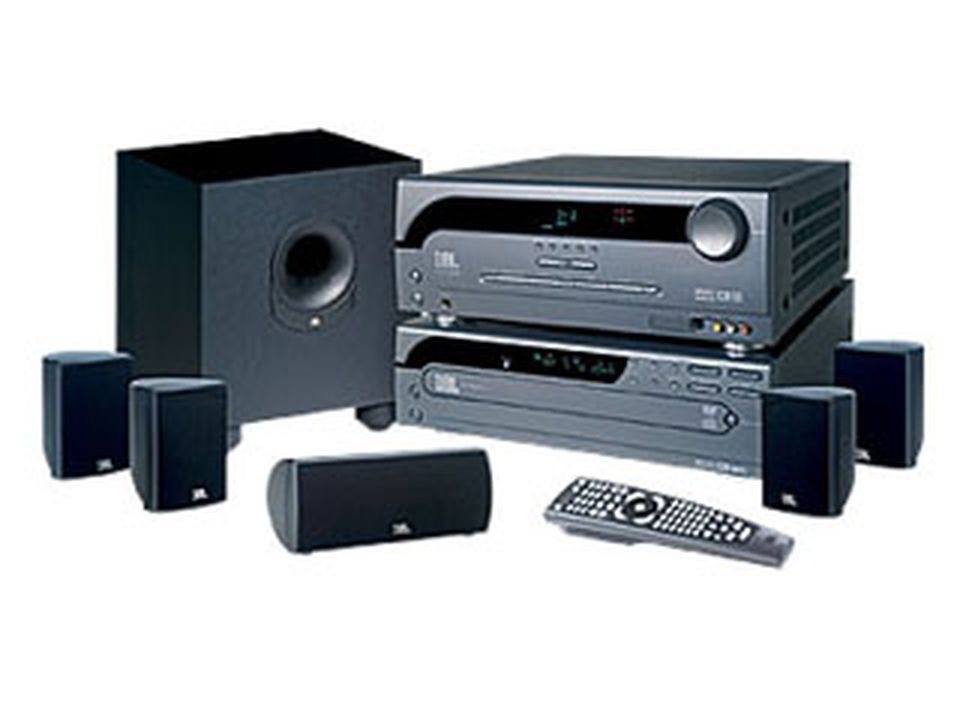

This Home Cinema speaker package includes all the speakers you need to re-create the excitement of a movie theater. The four satellites are true 2-way speakers with Titanium-laminate dome tweeters. The center-channel speaker uses the same transducers as the satellites for seamless pans, but uses two midranges for extra power and clarity in the dialogue channel. The 100-watt powered subwoofer delivers thunderous, penetrating bass. All cables and satellite wall-mount brackets are included. Part of the JBL Cinema ProPack 600 system.
