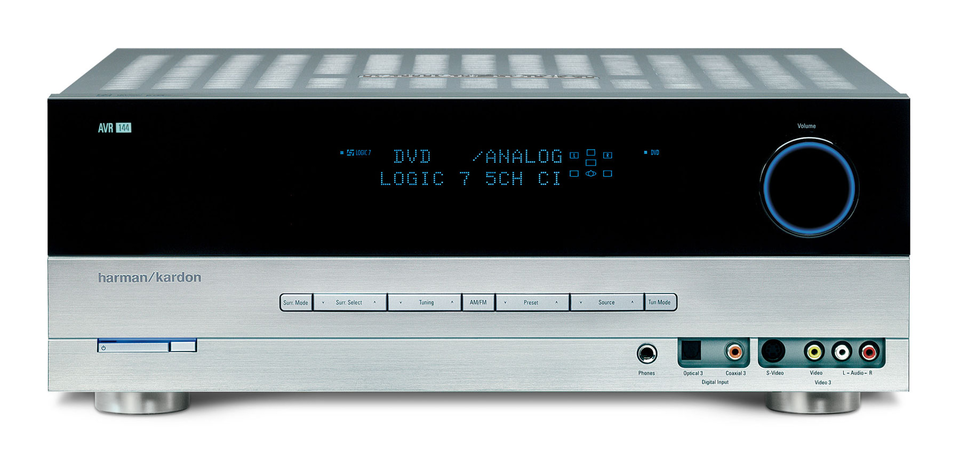

AVR 144

Audio/Video Receiver With Dolby Digital & DTS (40 watts x 2 | 30 watts x 5)

Vendu à partir de 2007 jusqu’au 2007

Produit prédécesseur:	AVR 140
Produit successeur:	AVR 154
Fait en:	China
Note:	This is the new Super Low Budget No Frills AVR Series.

Documents et téléchargements

Guide de démarrage rapide

Guide de Démarrage Rapide (Anglais)

Autre

Packaging and Accessories (Anglais) 488.44 KB

Caractéristiques du produit

Caractéristiques Générales

Power Requirements: AC 120V/60Hz

Power Consumption: 65W idle, 540W maximum (5 channels driven)

Digital Inputs (coaxial/optical): 2/2 on rear; 1/1 on front

Analog Inputs: 1 A/V on front panel

Analog Inputs: 2 audio-only

Analog Inputs: 3 A/V on rear panel

Analog Inputs: 6-channel input

Analog Inputs: tuner

On-Screen Display: Yes

Multizone Capability: No

Auto Setup: No

Remote Control: Seven-device, programmable remote

Shipping Weight (System, Accessories, Packing): 26 lb (11.8kg)

MSRP U.S.: $449.95 each

Caractéristiques Audio

# of Amplifier Channels: 5

Continuous Average Power (FTC) per Channel (stereo mode): 40 Watts per channel, 20Hz – 20kHz, @ <0.07% THD, both channels driven into 8 ohms

Front L & R Channels: 30 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms

Center Channel: 30 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms

Surround Channels: 30 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms

Input Level/Impedance: 200mV/47k ohms - Linear (High-Level)

Signal-to-Noise Ratio: 100dB (IHF-A)

Surround System Adjacent Channel Separation:

Dolby Pro Logic I and II: 40dB

Dolby Digital: 55dB

DTS: 55dB

Frequency Response: 10Hz – 130kHz (+0/-3dB @ 1 watt)

Transient Intermodulation Distortion (TIM): Unmeasurable

Slew Rate: 40V/µsec

Dimensions

Width: 17-5/16 inch (440mm)

Height: 6-1/2 inch (165mm)

Depth: 15 inch (382mm)

Weight: 21.12 lb (9.6kg)

Dimensions:

Carton Dimensions (W x H x D): 21-7/8 inch x 10-1/2 inch x 18-5/16 inch (555mm x 266mm x 465mm)

Spécifications vidéo

Television Format: NTSC

Input Level/Impedance: 1Vp-p/75 ohms

Output Level/Impedance: 1V/75 ohms

Video Frequency Response:

Composite and S-Video: 10Hz – 8MHz (–3dB)

Component Video: 10Hz – 100MHz (–3dB)

Tuner Specifications

Frequency Range: AM... 520 – 1720kHz

Frequency Range: FM... 87.5 – 108.0MHz

Signal-to-Noise Ratio: AM... 45dB

Usable Sensitivity: FM... IHF 1.3µV/13.2dBf

Signal-to-Noise Ratio: FM... Mono/Stereo 70/68dB

Usable Sensitivity: AM... Loop 500µV

Distortion: AM... 1kHz, 50% Mod 0.8%

Distortion: FM... Mono/Stereo 0.2/0.3%

Selectivity: AM... ± 10kHz, 30dB

Stereo Separation: FM... 40dB @ 1kHz

Selectivity: FM... ± 400kHz, 70dB

Image Rejection: FM... 80dB

IF Rejection: FM... 90dB

Amplifier Specifications

Amplifier Power (RMS): 30 x 5 @ 8 ohms (20Hz – 20kHz, <0.07% THD) (all channels driven at full power)

High Instantaneous Current Capability (HCC): ± 25 Amps

The AVR 144 puts Harman Kardon sound within the reach of almost any budget, with world-class features such as Logic 7 processing, high-current amplification, A/V Sync delay, component video switching and a host of audio enhancements. Dream no more; the AVR 144 makes high-performance home theater a reality for nearly everyone.
