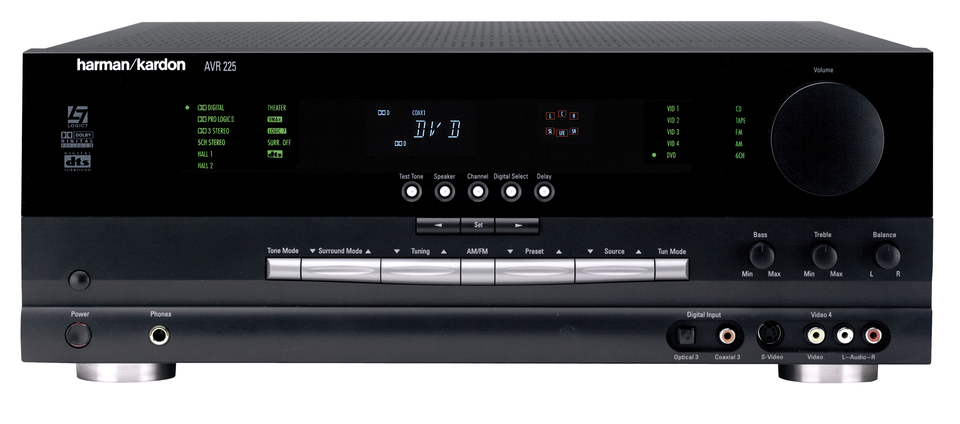

AVR 225

AVR 225

Audio/Video Receiver With Dolby Digital & DTS (65 watts x 2 | 55 watts x 5)

Vendu à partir de 2002 jusqu’au 2003

Produit prédécesseur: AVR 220
Produit successeur: AVR 230
Fait en: China

Documents et téléchargements

Caractéristiques du produit

Power Requirements
AC 120V/60Hz
Power Consumption
68W idle, 540W maximum (2 channels driven)
MSRP U.S.
$549.95 each
Continuous Average Power (FTC) per Channel (stereo mode)
65 Watts per channel, 20Hz – 20kHz, @ <0.07% THD, both channels driven into 8 ohms
Front L & R Channels
55 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
Center Channel
55 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
Surround Channels
55 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
Input Level/Impedance
200mV/47k ohms - Linear (High-Level)
Signal-to-Noise Ratio
95dB (IHF-A)
Analog Source Decoding
45dB
Dolby Digital
55dB
DTS
55dB
Frequency Response
10Hz – 100kHz (+0/-3dB @ 1 watt)
Transient Intermodulation Distortion (TIM)
Unmeasurable
Slew Rate
40V/µsec
Weight
26.8 lb (12.2kg)
Dimensions (H x W x D)
6.6 inch x 17.3 inch x 15.4 inch (168mm x 440mm x 390mm)
Television Format
NTSC
Input Level/Impedance
1Vp-p/75 ohms
Output Level/Impedance
1V/75 ohms
Video Frequency Response
10Hz – 8MHz (–3dB)
Frequency Range
AM... 520 – 1720kHz
Frequency Range
FM... 87.5 – 108.0MHz
Signal-to-Noise Ratio
AM... 45dB
Usable Sensitivity
FM... IHF 1.3µV/13.2dBf
Signal-to-Noise Ratio
FM... 70/68 dBA (Mono/Stereo)
Usable Sensitivity
AM... Loop 500µV
Distortion
AM... 1kHz, 50% Mod 0.8%
Distortion (Mono/Stereo)
FM... 0.2/0.3%
Selectivity
AM... ± 10kHz, 30dB
Stereo Separation
FM... 40dB @ 1kHz
Selectivity
FM... ± 400kHz, 70dB
Image Rejection
FM... 80dB
IF Rejection
FM... 90dB
High Instantaneous Current Capability (HCC)
± 28 Amps
