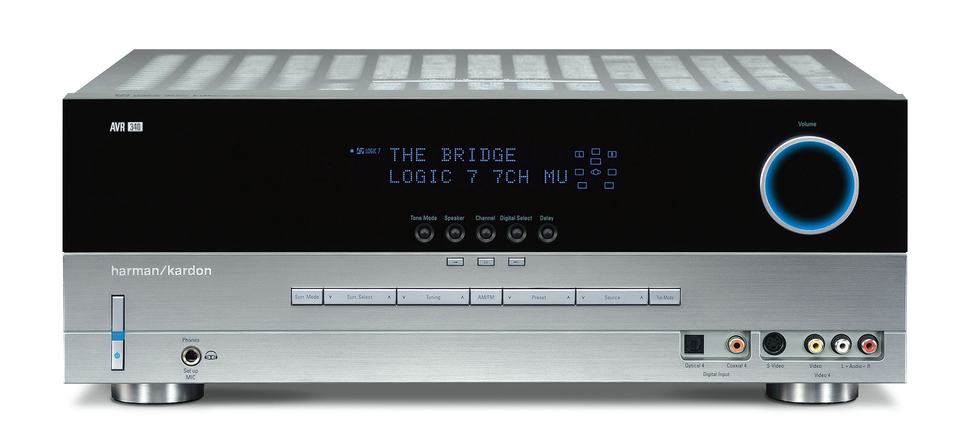

AVR 340

Audio/Video Receiver With Dolby Digital & DTS (70 watts x 2 | 55 watts x 7)

Vendu à partir de 2005 jusqu’au 2006

Produit prédécesseur:	AVR 335
Fait en:	China

Documents et téléchargements

Guide de démarrage rapide

Guide de Démarrage Rapide (Anglais) 474.05 KB

Autre

Packaging and Accessories (Anglais) 200.64 KB

Caractéristiques du produit

Caractéristiques Générales

Power Requirements: AC 220 – 240V / 50Hz

Power Consumption: 118W idle, 890W maximum (7 channels driven)

Digital Inputs (coaxial/optical): 3/3 on rear; 1/1 on front

Analog Inputs: 1 A/V on front panel

Analog Inputs: 2 audio-only

Analog Inputs: 4 A/V on rear panel

Analog Inputs: 6-/8-channel input

Analog Inputs: tuner

On-Screen Display: Yes, with component video

Multizone Capability: Audio; A-BUSREADY; surround back channels assignable to remote zone; ZoneII remote

Auto Setup: EzSet/EQ room equalization

Remote Control: eight-device, programmable remote

MSRP U.S.: $899.95 each

Caractéristiques Audio

# of Amplifier Channels: 7

Continuous Average Power (FTC) per Channel (stereo mode): 70 Watts per channel, 20Hz – 20kHz, @ <0.07% THD, both channels driven into 8 ohms

Front L & R Channels: 55 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms

Center Channel: 55 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms

Surround Channels (L & R Side, L & R Back): 55 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms

Input Level/Impedance: 200mV/47k ohms - Linear (High-Level)

Signal-to-Noise Ratio: 100dB (IHF-A)

Surround System Adjacent Channel Separation:

Dolby Pro Logic I and II: 40dB

Dolby Digital: 55dB

DTS: 55dB

Frequency Response: 10Hz – 130kHz (+0/-3dB @ 1 watt)

Transient Intermodulation Distortion (TIM): Unmeasurable

Slew Rate: 40V/µsec

Dimensions

Width: 17.3 inch (440mm)

Height: 5.9 inch (150mm)

Depth: 13.8 inch (350mm)

Weight: 24.4 lb (11.1kg)

Dimensions:

Spécifications vidéo

Television Format: NTSC

Input Level/Impedance: 1Vp-p/75 ohms

Output Level/Impedance: 1V/75 ohms

Video Frequency Response:

Composite and S-Video: 10Hz – 8MHz (–3dB)

Component Video: 10Hz – 50MHz (–3dB)

Tuner Specifications

Frequency Range: AM... 520 – 1720kHz

Frequency Range: FM... 87.5 – 108.0MHz

Signal-to-Noise Ratio: AM... 45dB

Usable Sensitivity: FM... IHF 1.3µV/13.2dBf

Signal-to-Noise Ratio: FM... Mono/Stereo 70/68dB

Usable Sensitivity: AM... Loop 500µV

Distortion: AM... 1kHz, 50% Mod 0.8%

Distortion: FM... Mono/Stereo 0.2/0.3%

Selectivity: AM... ± 10kHz, 30dB

Stereo Separation: FM... 40dB @ 1kHz

Selectivity: FM... ± 400kHz, 70dB

Image Rejection: FM... 80dB

IF Rejection: FM... 90dB

Amplifier Specifications

Amplifier Power (RMS): 55 x 7 @ 8 ohms (20Hz – 20kHz, <0.07% THD) (all channels driven at full power)

High Instantaneous Current Capability (HCC): ± 35 Amps

Tune up your room; no tools required. Thanks to EzSet/EQ;, the AVR 340 not only establishes all system speaker parameters, it measures how the speakers inchsound inch in your room and equalizes their output to compensate for any room-based acoustic situation. Add a wide range of convenience features such as video cross conversion, component output for simplified connectivity, A-BUSREADY multiroom capability, and compatibility with The Bridge;, and you'll be enjoying movies and music quicker than ever.
