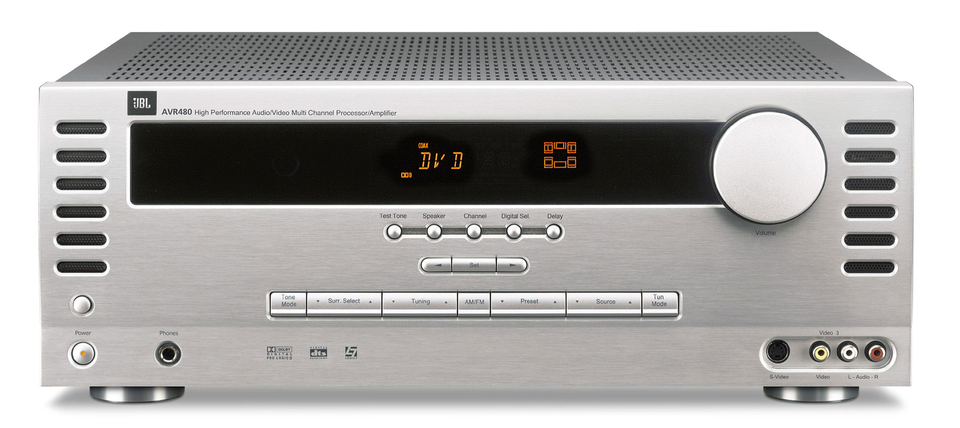

AVR 480

5.1-Channel High-Performance Audio/Video Processor/Amplifier

Verkocht vanaf 2004 tot nu

Downloads

Handleidingen

Owners Manual (English) 838.19 KB

Quick Start Guide

Quick Start Guide (English) 691.38 KB

Product Specificaties

Algemene specificaties

Power Requirements: AC 220 – 240V/50Hz

Power Consumption: 72W idle, 580W maximum (5 channels driven)

Audio specificaties

Amplifier Power (RMS): Front Channels... 100W + 100W (6 ohms/EIAJ)

Amplifier Power (RMS): Front Channels... 75W + 75W (8 ohms/20Hz – 20kHz, 0.08% THD)

Amplifier Power (RMS): CENTER... 100W (6 ohms/EIAJ)

Amplifier Power (RMS): CENTER... 75W (8 ohms/20Hz – 20kHz, 0.08% THD)

Amplifier Power (RMS): SURROUND CHANNELS... 100W + 100W (6 ohms/EIAJ)

Amplifier Power (RMS): SURROUND CHANNELS... 75W + 75W (8 ohms/20Hz – 20kHz, 0.08% THD)

Input Level/Impedance: 200mV/47k ohms - Linear (High-Level)

Signal-to-Noise Ratio: 90dB (IHF-A)

Surround System Adjacent Channel Separation:

Analog Decoding (Dolby Pro Logic, etc.): 40dB

Dolby Digital: 55dB

DTS: 55dB

Frequency Response: 10Hz – 65kHz (+0/-3dB @ 1 watt)

High Instantaneous Current Capability (HCC): ± 25 Amps

Transient Intermodulation Distortion (TIM): Unmeasurable

Afmetingen / Gewicht

Weight: 11kg (24.2 lb)

Dimensions (H x W x D): 168mm x 440mm x 435mm (6.6 inch x 17.3 inch x 17.1 inch)

Specificaties voor video

Video Formats: PAL/NTSC

Input Level/Impedance: 1Vp-p/75 ohms

Output Level/Impedance: 1V/75 ohms

Video Frequency Response: 10Hz – 8MHz (-3dB)

Tuner Specifications

Frequency Range: AM... 522 – 1620kHz

Frequency Range: FM... 87.5 – 108.0MHz

China, Singapore: FM... 0.05MHz

Korea: FM... 0.1MHz

Signal-to-Noise Ratio: AM... 45dB

Usable Sensitivity: AM... Loop... 500 µV

Usable Sensitivity: FM... IHF 1.3µV/13.2dBf

Distortion: AM... 1kHz, 50% Mod...0.8%

Signal-to-Noise Ratio: FM... 70/65 dBA (DIN, 60 dBµV) (Mono/Stereo)

Distortion (Mono/Stereo): FM... 0.15/0.3%

Selectivity: AM... ± 9kHz, 30dB

Stereo Separation: FM... 35dB @ 1kHz

Selectivity: FM... ±300kHz... 65 dB

Image Rejection: FM... 80dB

IF Rejection: FM... 90dB

AVR480 - 5.1 CHANNELS OF SOUND. LIMITLESS CONNECTIVITY. With connections for up to four video devices (three with both composite and S-video inputs), front-panel inputs for camcorders, video games and MP3 players, three additional analog and two digital audio inputs, and even a coaxial digital output for a direct connection to digital recorders, the JBL AVR480 is one of the most versatile A/V receivers ever made. And with onboard Dolby Digital and DTS decoding using Cirrus chip technology, plus JBL's innovative high-current design, it's also one of the most capable. From Hollywood's ultimate thrill ride to the most stirring passages of classical music, the AVR480 delivers a heightened, Synthesis-like experience as only JBL can. And it may make you yearn for still more digital stuff to connect.
