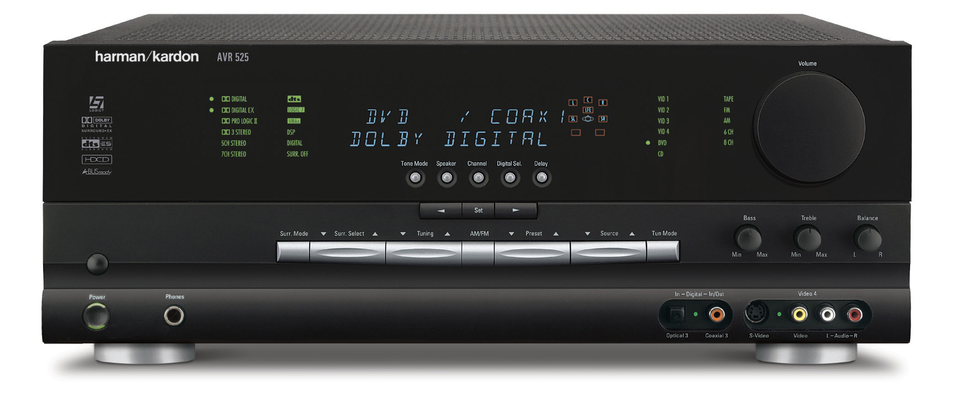

AVR 525

Audio/Video Receiver With Dolby Digital & DTS (85 watts x 2 | 70 watts x 7)

Verkocht vanaf 2002 tot 2003

Voorganger product:	AVR 520
Gemaakt in:	China

Downloads

Quick Start Guide

Snelstartgids (Engels) 357.75 KB

Overige

Packaging and Accessories (Engels) 651.36 KB

Product Specificaties

Algemene specificaties

Power Requirements: 120V AC/60Hz

Power Consumption: 120W @ idle, 1,040W @ rated output (7 channels driven)

MSRP U.S.: $1199.95 each

Audio specificaties

Continuous Average Power (FTC) per Channel (stereo mode): 85 Watts per channel @ <0.07% THD, 20Hz – 20kHz, both channels driven into 8 ohms

Front L & R Channels: 70 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms

Center Channel: 70 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms

Surround Channels (L & R Side, L & R Back): 70 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms

Input Level/Impedance: 200mV/47k ohms - Linear (High-Level)

Signal-to-Noise Ratio: 95dB (IHF-A)

Dolby Pro Logic I and II: 40dB

Dolby Digital: 55dB

DTS: 55dB

Frequency Response: 10Hz – 100kHz (+0/-3dB @ 1 watt)

Transient Intermodulation Distortion (TIM): Unmeasurable

Slew Rate: 40V/µsec

Afmetingen / Gewicht

Width: 17.3 inch (440mm)

Height: 6.5 inch (165mm)

Depth: 17.1 inch (435mm)

Weight: 44 lb (20kg)

Specificaties voor video

Television Format: NTSC

Input Level/Impedance: 1Vp-p/75 ohms

Output Level/Impedance: 1V/75 ohms

Composite and S-Video: 10Hz – 8MHz(–3dB)

Component Video: 10Hz – 50MHz(–3dB)

Tuner Specifications

Frequency Range: AM... 520 – 1710kHz

Frequency Range: FM... 87.5 – 108.0MHz

Signal-to-Noise Ratio: AM... 45dB

Usable Sensitivity: FM... IHF 1.3µV/13.2dBf

Signal-to-Noise Ratio: FM... Mono/Stereo 70dB/68dB

Usable Sensitivity: AM... Loop 500µV

Distortion: AM... 1kHz, 50% Mod. 0.8%

Distortion: FM... Mono/Stereo 0.2%/0.3%

Selectivity: AM... ± 10kHz, 30dB

Stereo Separation: FM... 40dB @ 1kHz

Selectivity: FM... ± 400kHz, 70dB

Image Rejection: FM... 80dB

IF Rejection: FM... 90dB

Amplifier Specifications

High Instantaneous Current Capability (HCC): ± 45 Amps

Thanks to the latest surround technology such as Dolby Digital EX, DTS-ES and our own Logic 7 processing, in addition to a seven-channel, high-current, ultrawide-bandwidth amplifier, the AVR 525 doesn't miss a beat. Make your program selections from a vast array of digital, analog and wide-bandwidth component video inputs, manage the bass with our Triple Crossover system, and extend the music to a second zone with A-BUS Ready technology or assignable rear-channel amplifiers. Wherever you want your music and movies, however loud you want them, the AVR 525 can handle the job.
