B8

Wireless Subwoofer

Introdução ao seu B8

Documentos & Downloads

Manuais

Outros

Especificações de Produto

Especificações Gerais

Low Frequency Transducer: 8-inch (200mm) Down-firing Cone

Amplifier Power: 200 Watts (continuous), 400 Watts (peak)

Frequency Response: 45Hz – 200Hz

Controls: Volume, Phase, Base Boost

Connections: LFE (RCA-type); left and right line-level (RCA-type)

Enclosure Type: Sealed

External Trigger Input Voltage: 3-30 Volts, AC or DC

Subwoofer Power Requirement: 120V, 60Hz (USA), 220V – 240V, 50/60Hz (EU)

Subwoofer Power Consumption: < 0.5W

Subwoofer Dimensions (H/W/D): 13 29/32” x 10 ½” x 10 ½” (353mm x 267mm x267mm)

Subwoofer Weight: 19.8 lbs (9kg)

Transmitter Power Requirement: 100 – 240V AC, 50/60Hz

Transmitter Power Consumption: < 0.5W

Transmitter Unit Dimensions (H/W/D): 1 3/8” x 5” x 3 1/2” (35mm x 127mm x 89mm)

Transmitter Unit Weight: 0.26 lbs (117g)

Transmitter Frequency Range: 2403 – 2472mHz

Max Transmitting Power: 10dBm

B8

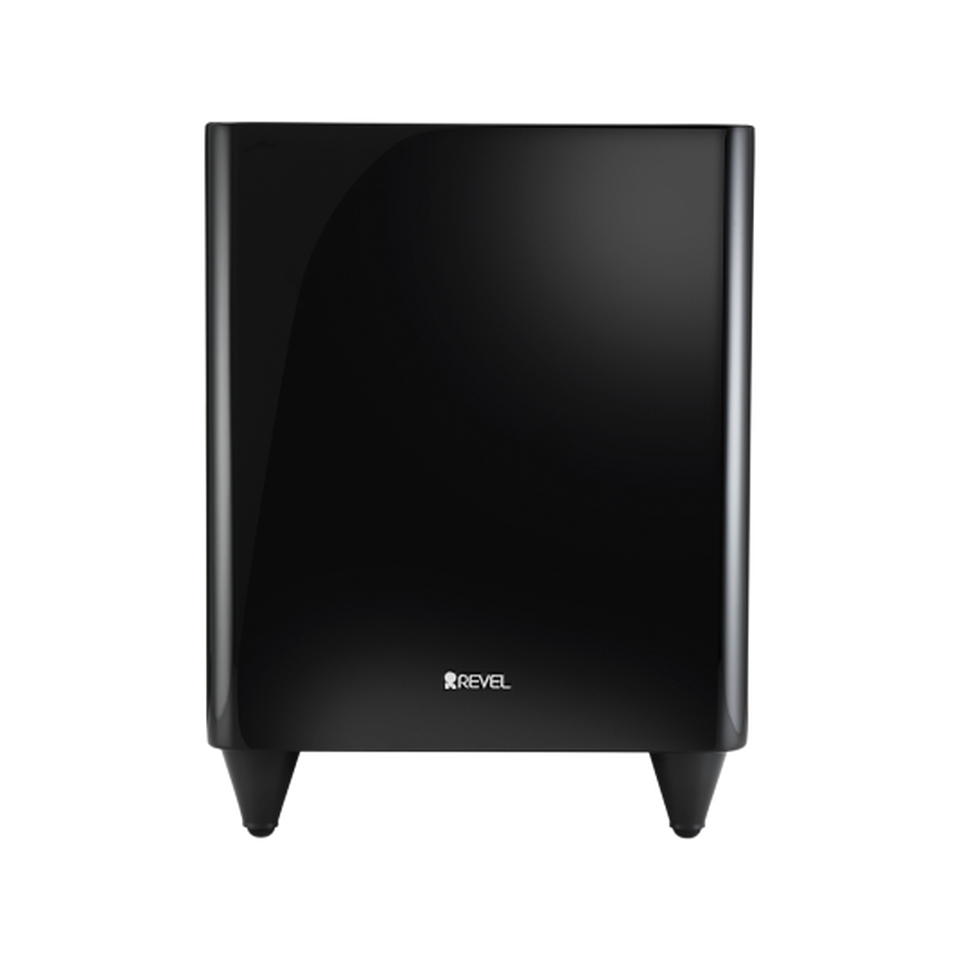

The B8 features an 8-inch down-firing cone transducer and built-in high-performance 200-watt amplifier for impactful and memorable sound quality deserving of the Revel name. The B8 is available in two automotive-grade, high-gloss finishes – white and black – for stylish and elegant appearance. The wireless transmitter and space-efficient design allow you to place it anywhere in your room without having to run a cable to it. Add a B8 to your M8 SP2 and SP5 Satellite Packages for a complete, multi-channel Revel home theater system at unprecedented affordability. The B8 can also be used to complement your Revel Concerta2 and Architectural Series loudspeakers.
