L41XC

Compact 2-way Extreme Climate Satellite Speaker

Documentos & Downloads

Manuais

Software

Outros

Especificações de Produto

Especificações Gerais

Frequency Response: 100Hz – 20kHz @-3dB

Crossover Frequencies: 5.5kHz

Finishes: Earthen Brown

High-frequency Driver Components: 0.75” Micro Ceramic Composite Aluminum Dome Tweeter

Low-frequency Driver Components: 4” Micro Ceramic Composite Aluminum Cone Woofer

Mounting: Sliding Collar, Deck Mounting Bracket, Ground Spike

Recommended Amplifier Power: 60W RMS; 100W RMS with High Pass Filter @100Hz

Sensitivity: 83dB (2.83V @1M) in Bypass mode

Voltage Gain: 70V

Weight: 9.9 lbs / 4.5kg

Dimensions (H x W x D): 11.3”/6.5”/9.2” (29.5cm/16.4cm/23.3cm)

Transformer Taps: 7.5W, 15W, 30W, 60W

Impedance: 4 Ohm in Bypass mode

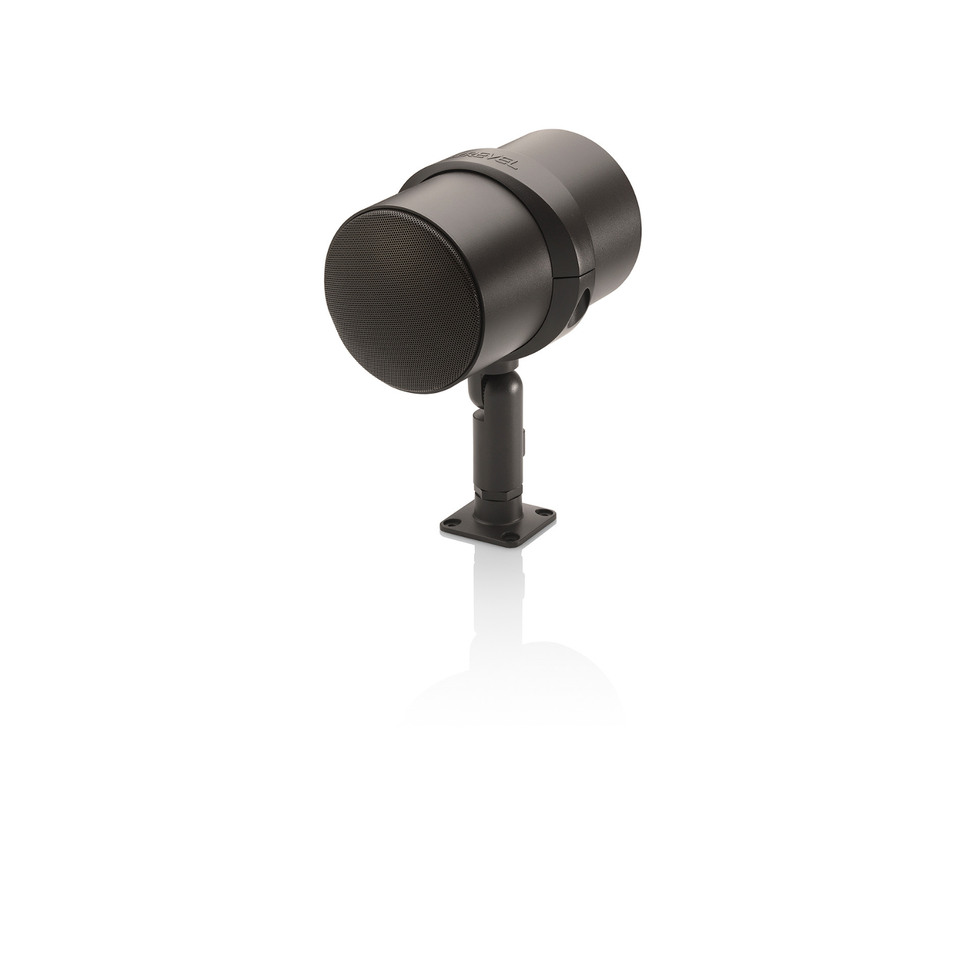

L41XC

The L41XC is a compact 2-way satellite speaker with sliding mounting collar, included ground spike and surface mounting bracket to provide maximum installation flexibility and position stability. A 3/4-inch aluminum dome tweeter provides crystal-clear, high-resolution detail, while a low-distortion 4-inch aluminum cone woofer delivers a powerful and deep bass response. Superior build quality means you get uncompromised performance and iconic Revel sound, even in the harshest environments.
