L42XC

2-way Extreme Climate Bollard Speaker with Integrated LED Lighting

Documentos & Downloads

Manuais

Software

Outros

Especificações de Produto

Especificações Gerais

Frequency Response: 80Hz – 20kHz @-3dB

Crossover Frequencies: 2.9kHz

High-frequency Driver Components: 1” Micro Ceramic Composite Aluminum Dome Tweeter

Low-frequency Driver Components: Dual 4” Micro Ceramic Composite Aluminum Cone Woofers

Mounting: Optional Deck Mount

Recommended Amplifier Power: 60W RMS; 125W RMS with High Pass Filter @80Hz

Sensitivity: 86dB (2.83V @1M) in Bypass mode

Voltage Gain: 70V

Weight: 20.7 lbs / 9.4kg

Dimensions (H x W x D): 33.7”/8.58”/8.58” (85.5cm/21.8cm/21.8cm)

Transformer Taps: 7.5W, 15W, 30W, 60W

Impedance: 4 Ohm in Bypass mode

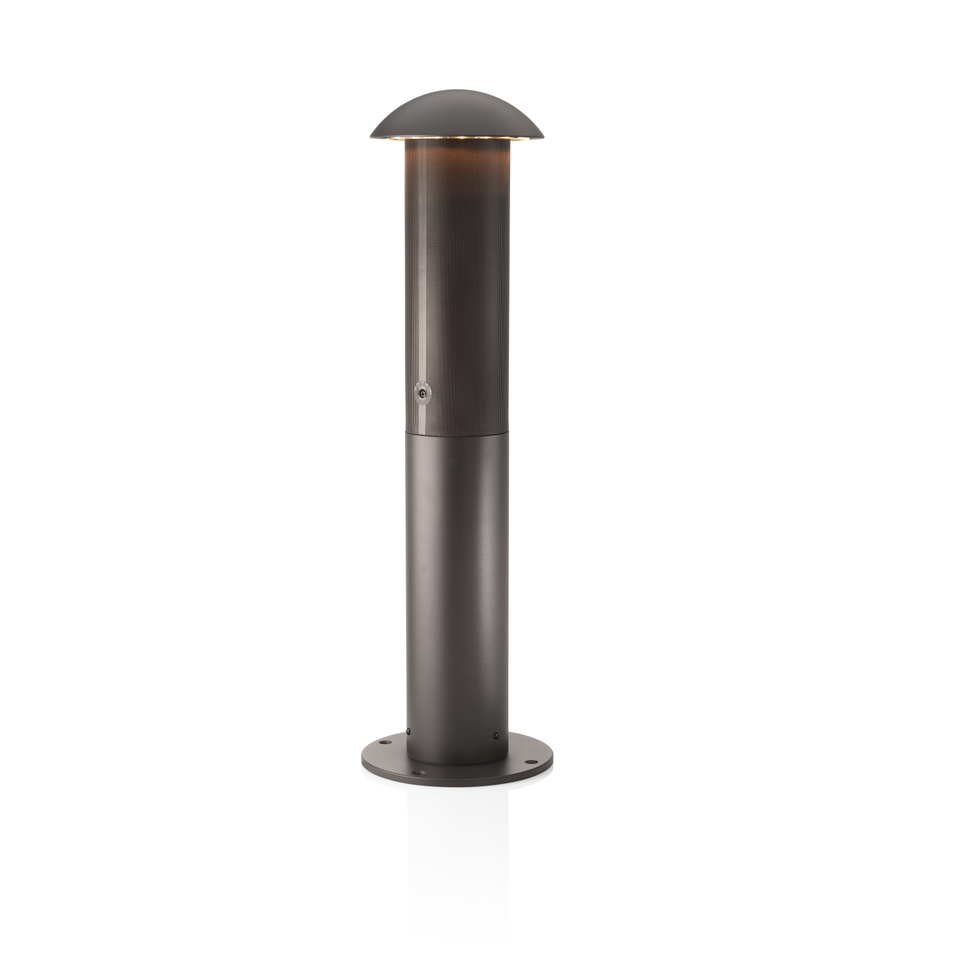

L42XC

The L42XC is a 2-way bollard speaker featuring integrated low-voltage LED, 360° down lighting with independent control, making it one of the only landscape products in the world that combines the enjoyment value of pristine audio with the added safety and security of illumination for your entertainment space. The sophisticated LED dimmable lighting can also be used in pathway or general landscape lighting applications, or to simply add relaxing ambience to your evening entertainment. Premium components, including dual 4-inch aluminum cone woofers and a 1-inch aluminum dome tweeter provide the memorable sonic experience Revel is known for, while unparalleled build quality ensures lasting brilliant performance in even the most challenging climate conditions. The L42XC can be buried up to half of its height for a reduced visual presence, or used with the optional deck mount as a freestanding tower on hard surfaces.
