TC 600

TC 600

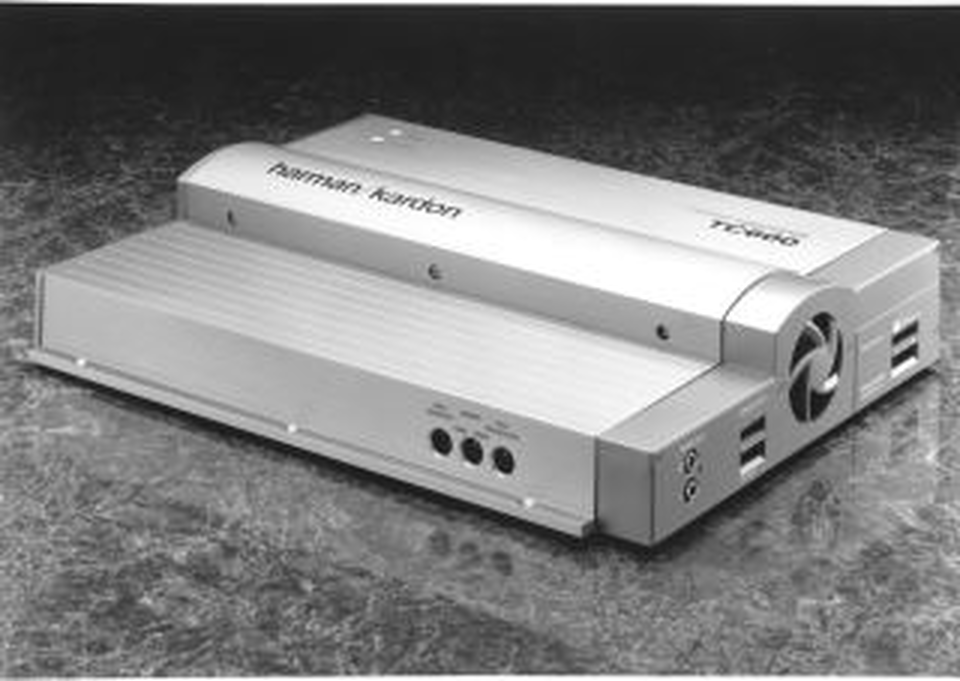

2-Channel Car Audio Amplifier (200 watts x 2)

Sold from 1991 until 1993

Documents & Downloads

Product Specifications

Amplifier Power (RMS)
200W x 2 channels @ 4 ohms
Amplifier Power (RMS)
300W x 2 channels @ 2 ohms
Amplifier Power (RMS)
600W x 1 channel @ 4 ohms
High Instantaneous Current Capability (HCC)
± 100 Amps
Total Harmonic Distortion
no more than 0.1% @ 4 ohms & 0.2% @ 2 ohms
Negative Feedback
25dB
Frequency Response
10Hz – 100kHz (+0/-3dB)
Signal-to-Noise Ratio
100dB (ref to rated power)
Input Sensitivity
0.25V to 2.5V, continuously variable
Input Impedance
CENTER PIN CONNECTOR (+) – 22k ohms OUTSIDE SHIELD (-) – 22k ohms
Power Supply
DC +14.4V (9-16V usable), negative ground
Power Requirements
AT IDLE – 7.5A
Power Requirements
FULL POWER MUSIC SIGNAL – 20A (4 ohms/channel), 30A (2ohms/channel)
Power Requirements
FULL POWER SINE WAVE – 60A (4 ohms/channel), 90A (2 ohms/channel)
MSRP U.S.
$1300 each
