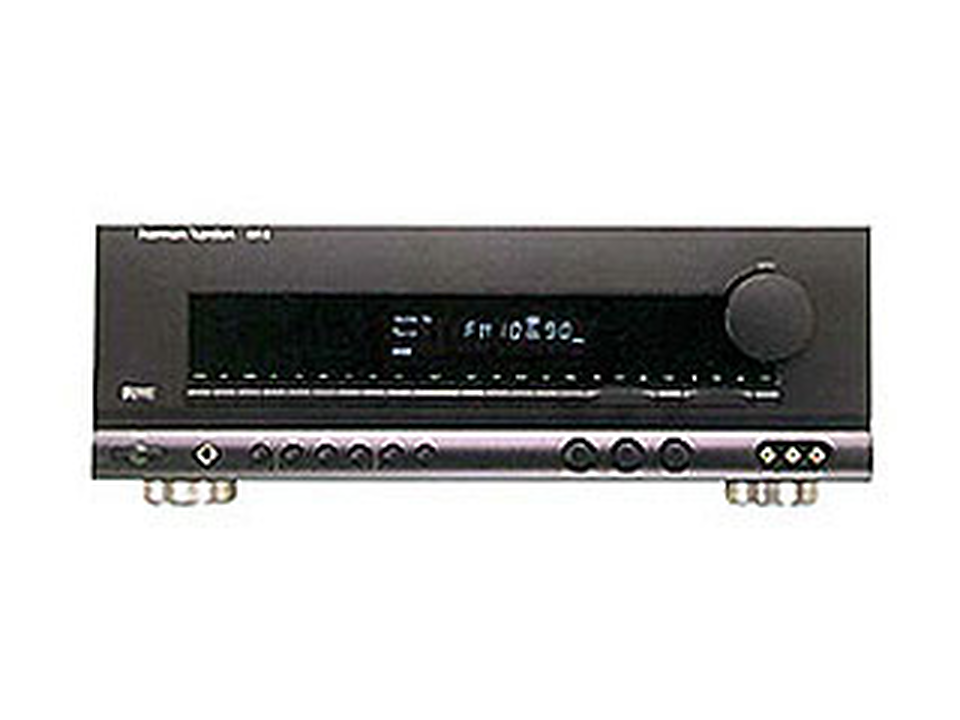

AVR 85

AVR 85

Audio/Video Receiver With Dolby Digital (90 watts x 2 | 85 watts x 5)

Sold from 1997 until 1998

Predecessor Product: AVR 80 II
Successor Product: AVR 7000

Documents & Downloads

Specifications

Power Requirements
120V AC/60Hz
Power Consumption
60W idle, 375W maximum
MSRP U.S.
$1700 each
Dimensions (H x W x D)
Width 17-1/2 inch (444mm)
Dimensions (H x W x D)
Height 6-1/4 inch (160mm) Height measurement includes feet and chassis.
Dimensions (H x W x D)
Depth18 inch (459mm) Depth measurement includes knobs, buttons and terminal connections.
Weight
32.6lbs (14.8kg)
Television Format
NTSC
Input Level/Impedance
1Vp-p/75 ohms
Output Level/Impedance
1V/75 ohms
Video Frequency Response
10Hz to 8MHz (-3dB)
Signal-to-Noise Ratio
65dB
Frequency Range
AM... 520 – 1710kHz
Frequency Range
FM... 87.5 – 108MHz
Signal-to-Noise Ratio
AM... 50dB
Usable Sensitivity
FM... IHF 1.3µV/13.2dBf
Signal-to-Noise Ratio
FM... 76dB Mono ( measured at amV RF Input Level)
Usable Sensitivity
AM... Loop 500µV
Distortion
AM... 1kHz, 30% Mod. 0.5%
Signal-to-Noise Ratio
FM... 68dB Stereo ( measured at amV RF Input Level)
Distortion (Mono/Stereo)
FM... 0.2%/0.5%
Selectivity
AM... ± 20kHz, 70dB
Stereo Separation
FM... 40dB @ 1kHz
Selectivity
FM... ± 400kHz, 65dB
Image Rejection
FM... 98MHz 50dB
Tuner Output Level
FM... 1kHz, ±75kHz Dev 800mV
Continuous Average Power (FTC) per Channel (stereo mode)
90 watts per channel 20Hz – 20kHz... @ <0.07% THD, both channels driven into 8 ohms
Front L & R Channels
85 watts per channel, @ 0.07% THD, 20Hz – 20kHz into 8 ohms
Center Channel
85 watts per channel, 20Hz – 20kHz into 8 ohms
Surround Channel
85 watts per channel, 40Hz – 20kHz into 8 ohms
High Instantaneous Current Capability (HCC)
± 65 Amps
Input Level/Impedance
200mV/50k ohms - Linear (High-Level)
Signal-to-Noise Ratio
95dB (IHF-A)
Analog Source Decoding
40dB
Dolby Digital
55dB
Frequency Response
7Hz – 80kHz (+0/-3dB @ 1 watt)
Transient Intermodulation Distortion (TIM)
Not Measurable
Rise Time
16µsec
Slew Rate
40V/µsec

One of our most powerful A/V receivers from Harman Kardon. The AVR85 provides a unique combination of power and multiroom control that makes it an ideal engine for high-performance audio and home-theater systems. Factory remanufactured.
