Conceal C62

Conceal C62

6,5" (165 mm) 2-element usynlig højttaler

Getting started with your Conceal C62

Product Registration

Register your product

Do you own this product? Register it here! And claim your warranty or service easily

Register now

Documents & Downloads

Specifications

Type
2-way In-Wall/In-Ceiling loudspeaker
Low Frequency Driver
6.5-inch (165mm) woofer with 1-inch (25mm) voice coil
High Frequency Driver
1.18-inch (30mm) voice coil transducer with neodymium magnet
Recommended Amplifier Power
50 - 100 WRMS
Impedance
4 Ohm
Loudspeaker Sensitivity
83 dB/1W/1m measured in-room
Frequency Response
45 Hz - 20 kHz (-6 dB) measured in-room
Crossover Frequency
600 Hz
Enclosure Type
Sealed, with wooden back-box
Protection
Two independent self-resetting devices (LF and HF)
Input Type
Five-way gold-plated spring-loaded binding posts
Warranty
5 Years
Panel Dimensions
11-7/8" H x 15-7/8" W x 3-7/8" D (302mm H x 403mm W x 98mm D)
Cut-out Dimensions
12” H x 16” W (305mm H x 406 W)
Mounting Depth
3-3/8-inches (86mm)
Product Weight
13.0 lbs (5.9kg)
Shipping Weight
15.6 lbs (7.1kg)

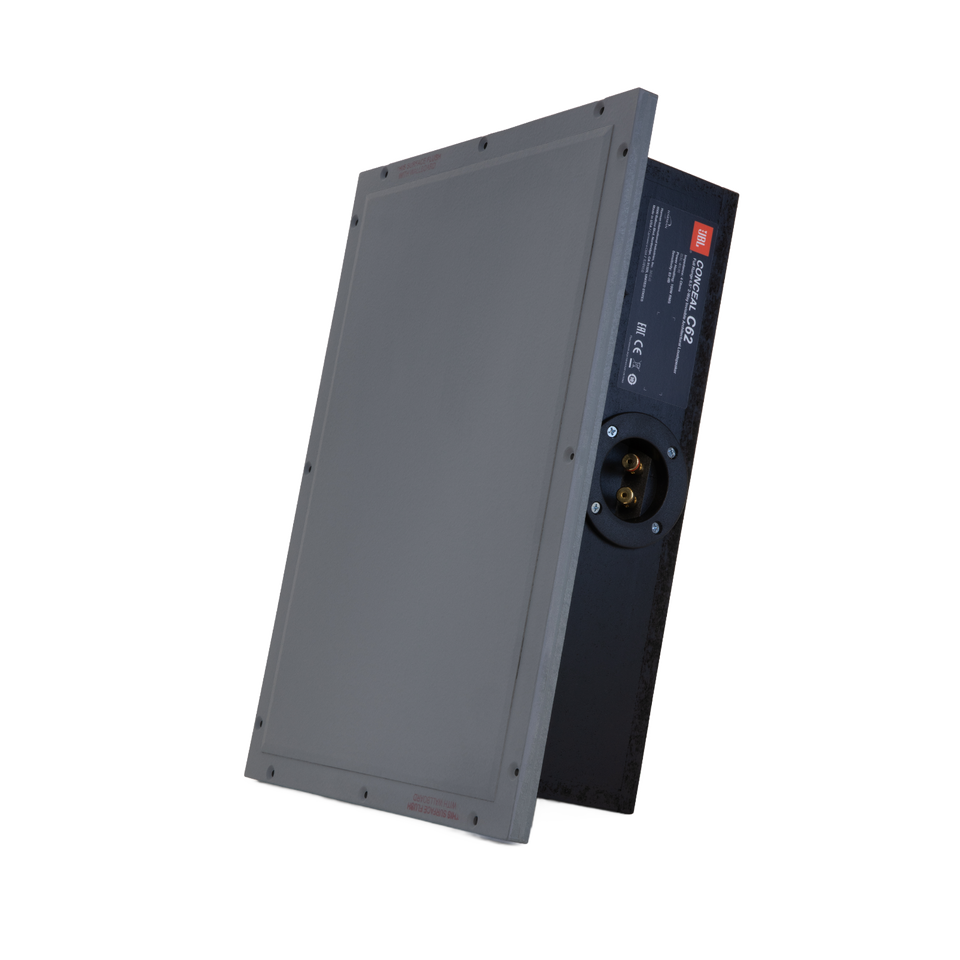

Conceal C62

JBL Conceal C62 Invisible Loudspeaker har et kompakt tovejs design, der er bygget op omkring en patenteret kompressionsstøbt skærm og Fidelity Glass™ på ydersiden, som kan males. Det færdige højttalerpanel er nemt at montere, og det forsvinder helt ind i de omgivende vægge og loft, hvilket giver optimal placering stort set overalt i hjemmet. JBL Conceal-serien er den ultimative løsning til højtydende arkitektonisk lyd.
