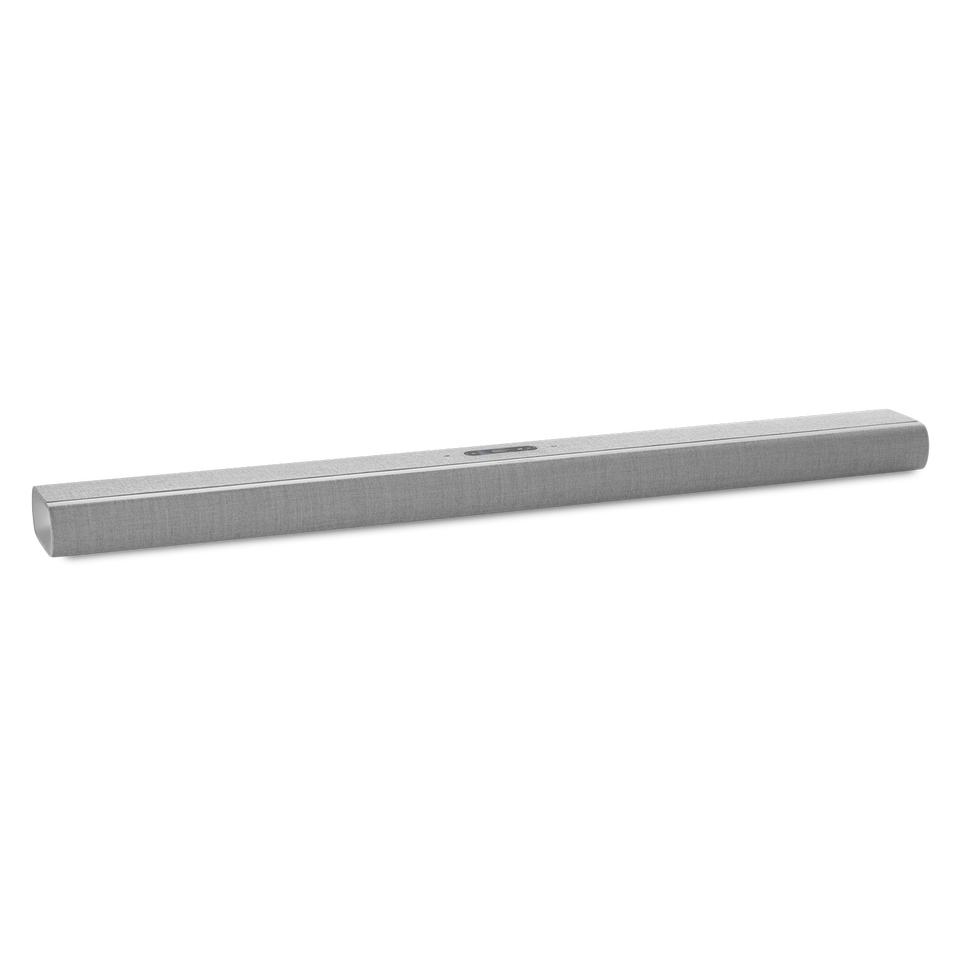

Harman Kardon Citation Multibeam™ 1100
Førsteklasses soundbar med MultiBeam™ og Dolby Atmos®
Getting started with your Harman Kardon Citation Multibeam™ 1100
Documents & Downloads
Specifications
- Strømforsyning
- 100-240 V AC, ~ 50/60 Hz
- Netværkets strømforbrug ved standby
- < 2,0 W
- Driftstemperatur
- 0 °C-45 °C
- Samlet højttalerudgangseffekt (maks. ved THD (total harmonisk forvrængning) 1 %)
- 630W
- Soundbar-udgangseffekt (maks. ved THD (total harmonisk forvrængning) 1 %)
- 8 x 60 W bashøjttaler og fuldskala og 3 x 50 W diskantenhed
- Soundbar-transducer
- 6 x (55 x 90) mm racetrack-enheder, 3 x 1" (25 mm) diskantenheder, 2 x 2,75" (70 mm) opadrettede fuldtone-enheder
- Frekvenskarakteristik
- 52 Hz-20 KHz (-6 dB)
- Lydindgange
- 1 optisk, Bluetooth, Chromecast built-in, AirPlay, Alexa MRM
- Mål (B x H x D)
- 1150 x 65 x 130 mm
- Vægt
- 4,6 kg
- Pakkens mål
- (B x H x D)
- Pakkens vægt
- 7,20 kg
- USB-port
- Type A (Kun for service)
- USB-strømdata
- 5 V DC, 0,5 A
- Bluetooth-version
- 5
- Bluetooth-profil
- A2DP 1.2, AVRCP 1.5
- Frekvensområde for Bluetooth-sender
- 2400 MHz-2483,5 MHz
- Bluetooth-sendereffekt
- <13 dBm (EIRP)
- Wi-fi-netværk
- IEEE 802.11 a/b/g/n/ac (2,4 GHz/5 GHz)
- 2,4G wi-fi-senders frekvensområde
- 2412-2472 MHz (2,4 GHz ISM-bånd, USA 11 kanaler, Europa og andre steder 13 kanaler)
- 2,4G wi-fi-sendereffekt
- <19 dBm (EIRP)
- 5G wi-fi-senders frekvensområde
- 5,15-5,35 GHz, 5,470-5,725 GHz, 5,725-5,825 GHz
- 5G wi-fi-sendereffekt
- <20 dBm (EIRP)
- 5G WISA-senders frekvensområde
- 5,15-5,35 GHz, 5,470-5,725 GHz, 5,725-5,825 GHz
- 5G WISA-sendereffekt
- <14 dBm (EIRP)
- HDMI-videoindgang
- 1
- HDMI-videoudgang (med Enhanced Audio Return Channel, eARC)
- 1
- HDMI HDCP-version
- 2.3
- HDR
- HDR10, Dolby Vision
Bliv omgivet af smuk 3D-lyd.
Din musik. Dine film. Dine spil. Nu løftet op på et helt nyt niveau. Med MultiBeam™-teknologi og 11 dynamiske enheder, herunder to opadrettede højdekanaler til Dolby Atmos®, leverer Harman Kardon Citation MultiBeam 1100-soundbaren fyldig bas og omsluttende 3D-surroundlyd som i biografen. Det elegante design matcher den smukke lyd perfekt. Intuitive betjeningsknapper, HDMI eARC-tilslutning og automatisk rumkalibrering gør opsætningen problemfri. Nyd musik i HD-kvalitet fra over 300 streamingtjenester med AirPlay, Alexa Multi-Room Music* og Chromecast built-in™. Soundbaren er kompatibel med højttalere, der understøtter stemmeassistenter, så du kan styre din musik med din stemme. Harman Kardon Citation MultiBeam 1100. Det er ikke bare lyd. Det er en oplevelse.
FAQs & How-Tos
-
The product packaging is made from FSC-certified material and printed with soy ink.
Was this helpful? Thank you for your feedback! -
Getting started with the checklist
- A Harman Kardon Citation device(s).
- Latest version of the Google Home app installed on your mobile device.
- Latest version of the Google app (Android only) installed on your mobile device
- A Google Account (you can create one online via Google).
- A mobile device with either iOS or Android support.
- Must have iOS 10 or higher
- Must have Android 5.0 and higher
- There is no support for PC set up.
- Your mobile device must support 5 GHz Wireless Network connection in order to set up our Harman Kardon Citation device. Note: Wireless Network with WPA2-Enterprise encryption is not supported.
- An internet connection from your local ISP (Internet Service Provider).
- Your Wireless Network must secured with WPA2 Encryption (Enterprise mode NOT supported).
- Availability and performance of certain features, services and applications are device- and network-dependent and may not be available in all areas; subscription(s) may be required, and additional terms, conditions and/or charges may apply.
Was this helpful? Thank you for your feedback! -
It is not possible to connect the Citation Multibeam 1100 to the Citation Towers.
Was this helpful? Thank you for your feedback! -
PureVoice is default ON when you turn on the soundbar. You may turn OFF PureVoice by using the LCD touch display. On the touchscreen, swipe to the Settings page, then tap Audio -> PureVoice to enable or disable PureVoice.
Was this helpful? Thank you for your feedback! -
It is possible to connect both HDMI and optical to the TV input at the same time, but HDMI will be prioritized over optical. Switching manually from HDMI to optical is not possible.Was this helpful? Thank you for your feedback!
-
PureVoice is designed to work with audio on the HDMI input. It is not active for Wi-Fi music or Bluetooth sources.
Was this helpful? Thank you for your feedback! -
The product does not have a built-in voice assistant. However, the product works with other voice-enabled products supporting Google Voice Assistant or Amazon Alexa.Was this helpful? Thank you for your feedback!
-
As a stand-alone soundbar, the product can support 5.0.2 channels. When connected to the optional Citation Sub or Citation Sub-S, the product can support 5.1.2 channels.
It is also possible to have physical rear surround channels by connecting the optional Citation Surround.
Was this helpful? Thank you for your feedback! -
Citation One and Citation 100
- Press the Bluetooth icon. Located on the top panel.
- Go to -menuMake sure Bluetooth is
- Find your Citation speaker and connect.
- You are now connected and ready to play music over Bluetooth, Enjoy!
Citation 300, 500, Bar and Towers
- Swipe up on the display to find Bluetooth icon.
- Tap Icon will light up Go to -menu Make sure Bluetooth is
- Find your Citation speaker.
- You are now connected and ready to play music over Bluetooth, Enjoy!
Was this helpful? Thank you for your feedback! -
To use Chromecast, you must continue the setup in the Google Home app first.
Configuring the speaker only with Apple WAC will not enable the Chromecast feature.
For this to happen, you must sign-in with your Google account.
You can quickly try out the Chromecast feature, and if you do not like it, reset your Citation or LINK speaker, and redo the configuration part on your Apple device.Was this helpful? Thank you for your feedback!
