JBL 4349
12" (300 mm) tovejs studiemonitor-højttaler
Getting started with your JBL 4349
Documents & Downloads
Specifications
- Type
- 2-way monitor loudspeaker
- Low Frequency Driver
- 12" (300mm) Pure Pulp cone woofer (JW300PG-8)
- High Frequency Driver
- D2415K, 1.5-inch (37.9mm) annular ring, Teonex® diaphragm compression driver with advanced HDI™ geometry horn molded in Sonoglass
- Recommended Amplifier Power
- 25 - 200 WRMS
- Impedance
- 8 Ohm
- Loudspeaker Sensitivity
- 91 dB/2.83V/1m
- Frequency Response
- 32 Hz - 25 kHz (-6 dB)
- Coverage Angle, -6 dB @ 20kHz
- 80 x 70 Degrees (Hor x Vert)
- Coverage Angle, -6 dB @ 10kHz
- 100 x 100 Degrees (Hor x Vert)
- Crossover Frequency
- 1.5 kHz
- Enclosure Type
- V-braced front-ported cabinet
- Grille Feature
- Monitor style to match horn mating features, supplied in dark blue (with walnut cabinet) and black (with black cabinet)
- HF Tone Control
- -1 dB to +1 dB in 0.5 dB increments from 1.5 kHz to 6 kHz
- UHF Tone Control
- -1 dB to +1 dB in 0.5 dB increments from 5 kHz on up
- Input Type
- Dual sets of gold-plated binding posts with shorting straps
- Warranty
- 5 Years
- Matching stand
- JS-120
- Product Weight
- 83 lb (37.7 kg)
- Dimensions with grille
- 29" H x 17.5" W x 12.5" D (736.6mm x 444.5mm x 317.5mm) Note

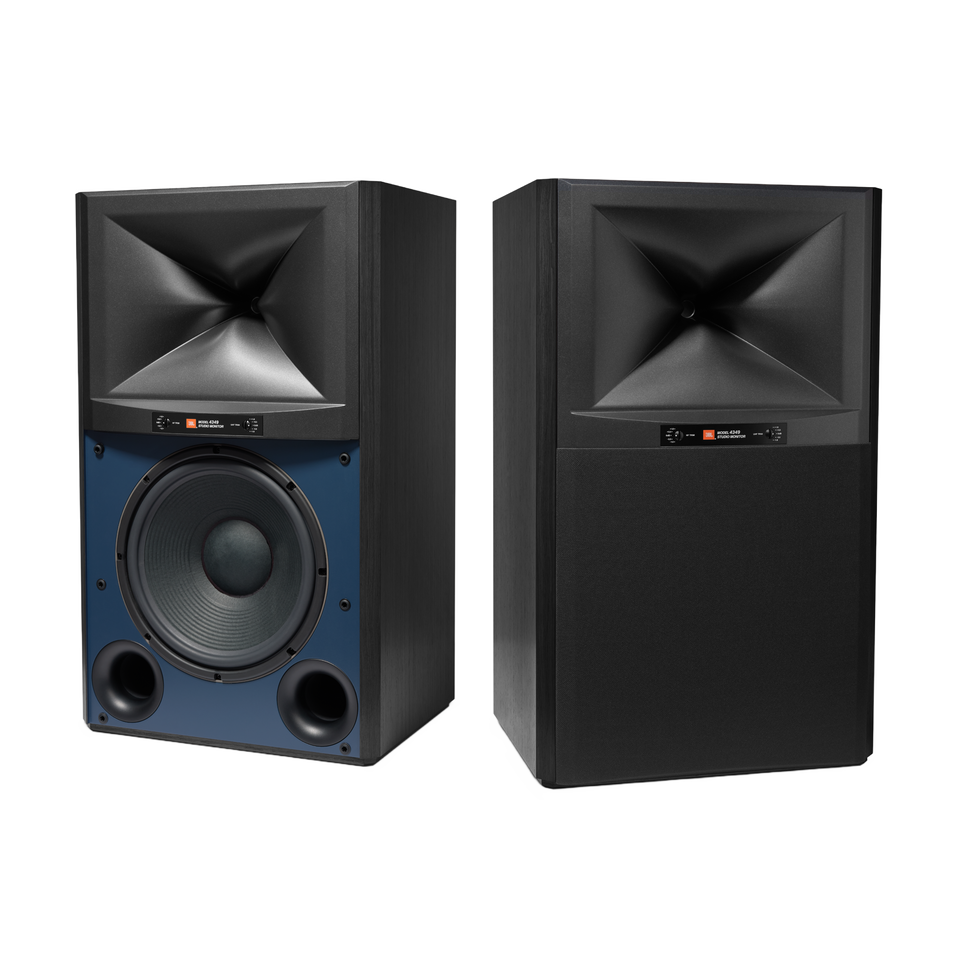

JBL 4349
4349-studiemonitoren er designet og udviklet på JBLs verdensberømte facilitet for akustisk teknik i Northridge i Californien, og indeholder et væld af patenterede JBL-akustikteknologier. Denne monitor-højttaler har tovejs design med patenteret High-Definition Imaging (HDI™) hornteknologi, den patenterede D2415K dobbelte 1,5" (38 mm) kompressionsdriver, og en 12" (300 mm) ren papirkegle-bashøjttaler med støbt ramme til kraftfuld dynamik og uovertruffen nøjagtig lydgengivelse.
