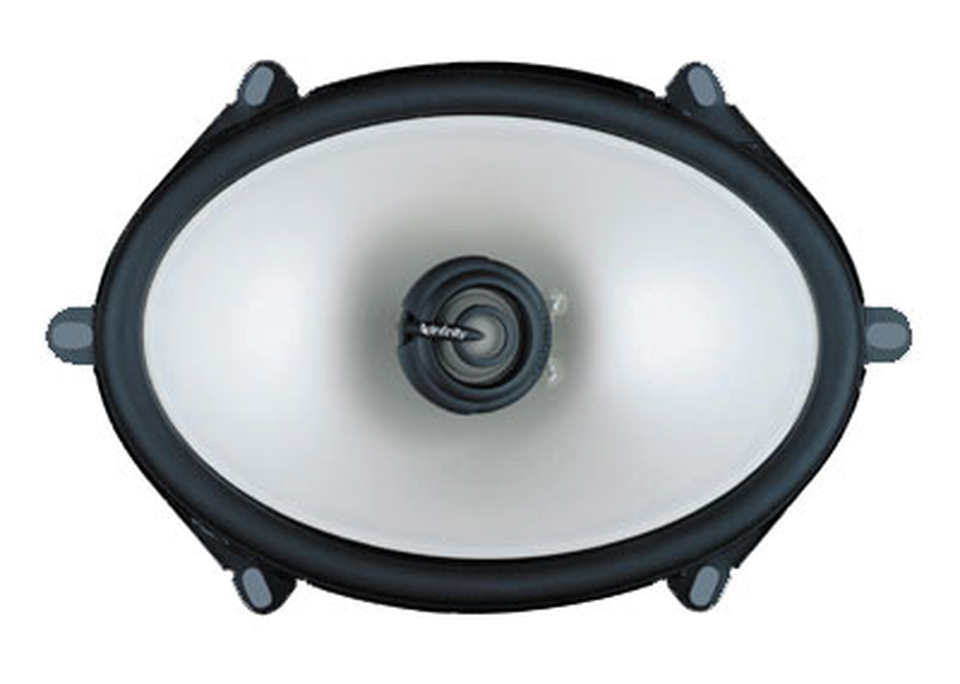

REFERENCE 5752CF

5 inch x 7 inch & 6 inch x 8 inch 2-Way

Documents & Downloads

Manuals

Owners Manual (English) 352.22 KB

Specifications

General Specifications

Recommended Amplifier Power (RMS): 60W

Power Handling (peak): 180W

Sensitivity (1 watt @ 1 meter): 92dB

Frequency Response: 54Hz – 20kHz (±3dB)

Nominal Impedance: 4 ohms

MSRP U.S.: $119.95 per pair

Dimensions

Mounting Depth: 2-3/8 inch

Plus One; Woofer Cones - Each speaker size uses a cone about .30 larger than competing models of the same size. This is accomplished by way of our new basket design and hi-roll surround. The benefits of Plus One; are greater bass output and a 2 - 3dB increase in efficiency versus competing brands.
