P26T

P26T

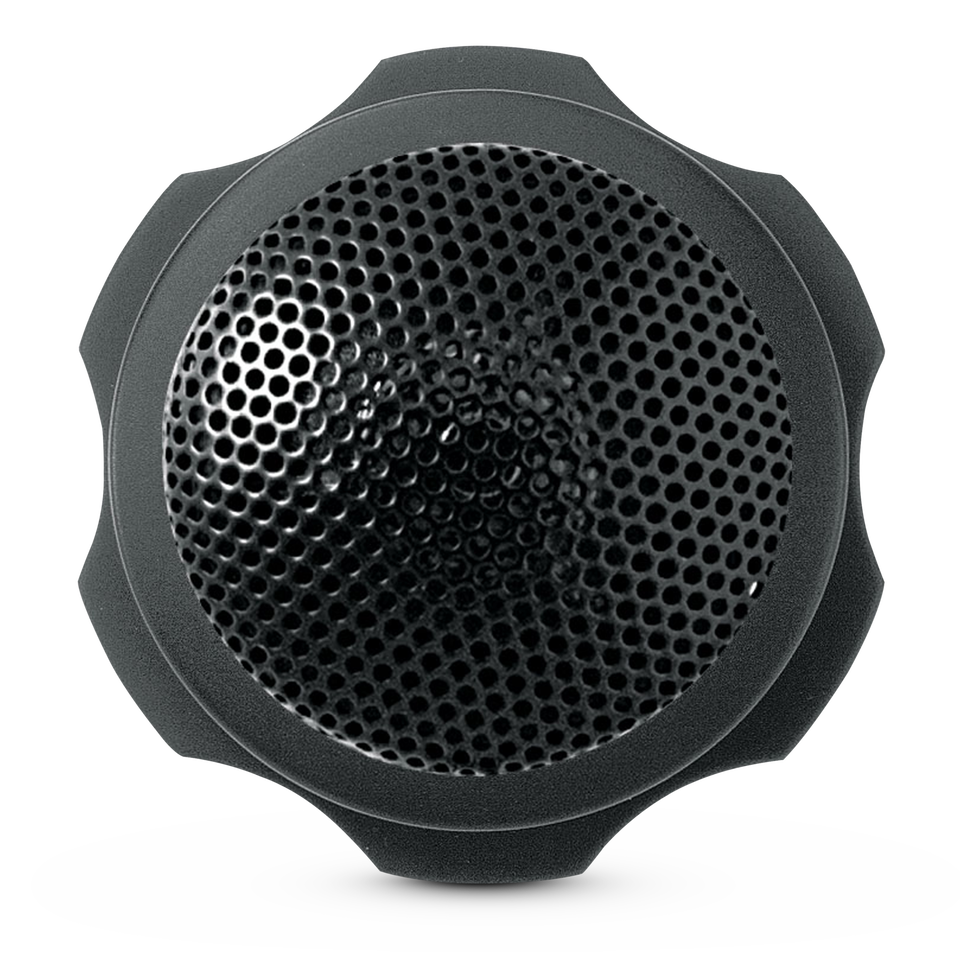

180-watt, 1" edge-driven dome tweeters

Sold from 2008 until now

Predecessor Product: POWER P332
Made in: China

Getting started with your P26T

Product Registration

Register your product

Do you own this product? Register it here! And claim your warranty or service easily

Register now

Documents & Downloads

Specifications

Series
Power Series
Size
1
Power Handling (Peak)
180W
Sensitivity
(2.83V@1m) 94dB
Frequency Response
2.5kHz–23kHz
Power Handling (RMS)
60W
Nominal Impedance
6 ohms
Mounting Depth (mm)
17
Mounting Depth (in)
11/16
Mounting Cutout Diameter Tweeter (mm)
47
External Diameter Tweeter (mm)
54.5
Mounting Cutout Diameter Tweeter (in)
1-7/8
External Diameter Tweeter (in)
2-3/16
Mounting Depth
1-3/16 inch
Cutout Dimensions
1-3/4 inch
Controls/Adjustments
None
Crossover Frequencies
Onboard
High-Frequency Transducer
25mm (1") edge-driven My-Ti™ dome, pivoting

1 inch (25mm) High-bandwidth edge-driven textile dome tweeter with I-Mount.

Forget the commonly used miniatures. The JBL® brand uses full edge-driven topology, textile-
The JBL® P26T has tweeter-level control. Use the simple switch to set the tweeter output level
You’ll have 60 watts RMS each and 180 watts of peak power handling, with tweeter protection
Nothing is over- or under-emphasized. With a frequency response of 2.5kHz to 23kHz, the JBL®
The I-Mount™ system allows for more precise imaging and simplifies tweeter installation with
