JBL Tune 520C USB-C

JBL Tune 520C USB-C

Wired on-ear headphones with Hi-Res Audio support, JBL Pure Bass Sound, comfort fit, USB-C connectivity, 3-button remote with microphone and EQ presets control.

Getting started with your JBL Tune 520C USB-C

Product Registration

Register your product

Do you own this product? Register it here! And claim your warranty or service easily

Register now

Documents & Downloads

Specifications

Driver size (mm)
32
Number of Microphones
1
Driver sensitivity at 1kHz/1mW (dB)
103
Dynamic frequency response range (Hz)
10Hz-40kHz
Impedance (ohms)
32
Ear Cup Depth (cm)
1.7
Ear Cup Depth (in)
0.7
Ear Cup External Height (cm)
7.3
Ear Cup External Height (in)
2.9
Ear Cup External Width (cm)
7.3
Ear Cup External Width (in)
2.9
Ear Cup Internal Height (cm)
3.2
Ear Cup Internal Height (in)
1.3
Ear Cup Internal Width (cm)
3.2
Ear Cup Internal Width (in)
1.3
Headphone cable length (cm)
120
Weight (g)
150
Built-in Microphone
Yes
Hands Free Call
Yes
JBL Pure Bass Sound
Yes
On-ear
Yes

Hi-Res audio, now available to go.

Add some music to your day with the grab-and-go convenience of JBL Tune 520C USB-C wired headphones. They're lightweight and comfortable enough to wear all day long, plus they fold up flat to fit perfectly in even the most overstuffed bag. Two 32mm dynamic drivers punch out big, powerful JBL Pure Bass Sound. High-Resolution Audio support means your music will always sound its best. Plug them into any device with a USB-C connection—from PCs and laptops to phones, tablets, and even gaming devices. Take crystal-clear calls on the fly through the conveniently placed microphone and use the easy three-button remote to control music playback, adjust the volume, and switch the EQ presets. All on a durable flat cable that won't get tangled in your bag. At work, at home, and especially on the go, the JBL Tune 520C USB-C is your everyday carry.

Get the full advantage of digital Hi-Res 96kHz/24bit audio from the DSP chipset.
Hear clear, powerful JBL Pure Bass Sound from a pair of 32mm dynamic drivers.
Need to connect to a PC, mobile or gaming device? USB-C connectivity ensures compatibility with a wide range of devices*. *Please check USB-C compatibility with your device.
Use the conveniently placed microphone to take crystal-clear calls on the fly. Or control your music playback, change the volume, or switch your EQ presets, all at your fingertips.
Use the default EQ preset for great, well-rounded sound right out of the box. Select Bass to enhance the bottom end and add more energy and excitement to your music. Or choose Vocal to enhance the midrange and hear bright, clear vocal sounds.
The padded on-ear design means you can wear them all day long without discomfort. And when you're not listening, they fold away flat for easy storage.
Our flat USB-C cable has a reinforced cable connection for durability and won't get tangled up in knots in your bag.

FAQs & How-Tos

1 results
  • How do you change earpads on your headphones?

    The way you remove and change the ear cushions on your headphones varies from on-ear headphones to over-ear headphones and also from product to product.

    When removing and replacing the ear pads you will see the following examples:



    Removing on-ear headphones

    Pull the ear cushion as you see on the below picture.



    The ear cushion will slide out of the hole when you have pulled it enough, which is the case with the picture below.



    When the earpad is completely removed it will look like the picture below.



    Removing over-ear headphones

    Pull the entire earpad off. You need to pull the material that is placed on your ear. Pull carefully so the plastic hooks does not snap off or break. When you have pulled the earpad of it will look like the picture below.



    Replacing new on-ear earpads

    Align the cushion with the hole all the way around the ear pads.



    Replacing new over-ear earpads

    Align the plastic hooks which are marked on the left side on the picture below with the holes that are marked on the right side of the picture.

Images & Videos

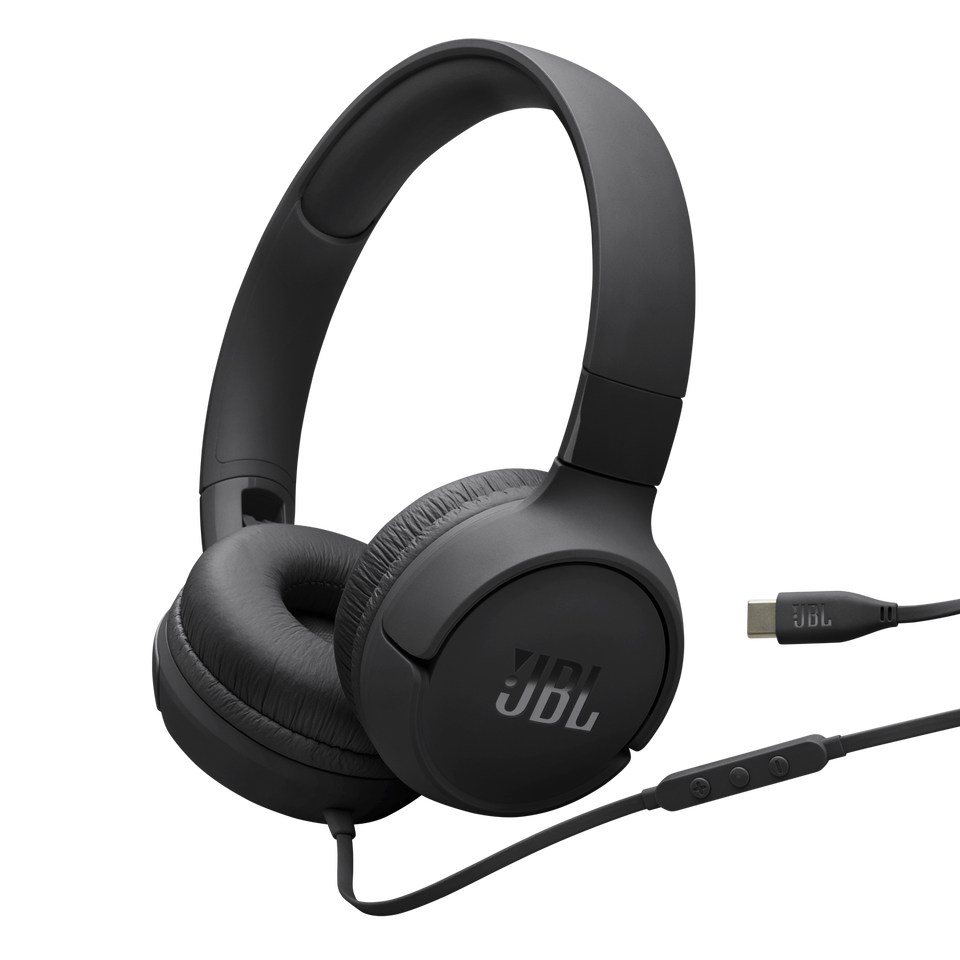

JBL Tune 520C USB-C - Black - Hi-Res wired on-ear headphones - Hero
  • JBL Tune 520C USB-C - Black - Hi-Res wired on-ear headphones - Hero
  • JBL Tune 520C USB-C - Black - Hi-Res wired on-ear headphones - Front
  • JBL Tune 520C USB-C - Black - Hi-Res wired on-ear headphones - Back
  • JBL Tune 520C USB-C - Black - Hi-Res wired on-ear headphones - Left
  • JBL Tune 520C USB-C - Black - Hi-Res wired on-ear headphones - Top
  • JBL Tune 520C USB-C - Black - Hi-Res wired on-ear headphones - Bottom
  • JBL Tune 520C USB-C - Black - Hi-Res wired on-ear headphones - Detailshot 1
  • JBL Tune 520C USB-C - Black - Hi-Res wired on-ear headphones - Detailshot 2
  • JBL Tune 520C USB-C - Black - Hi-Res wired on-ear headphones - Detailshot 3
  • JBL Tune 520C USB-C - Black - Hi-Res wired on-ear headphones - Detailshot 15
