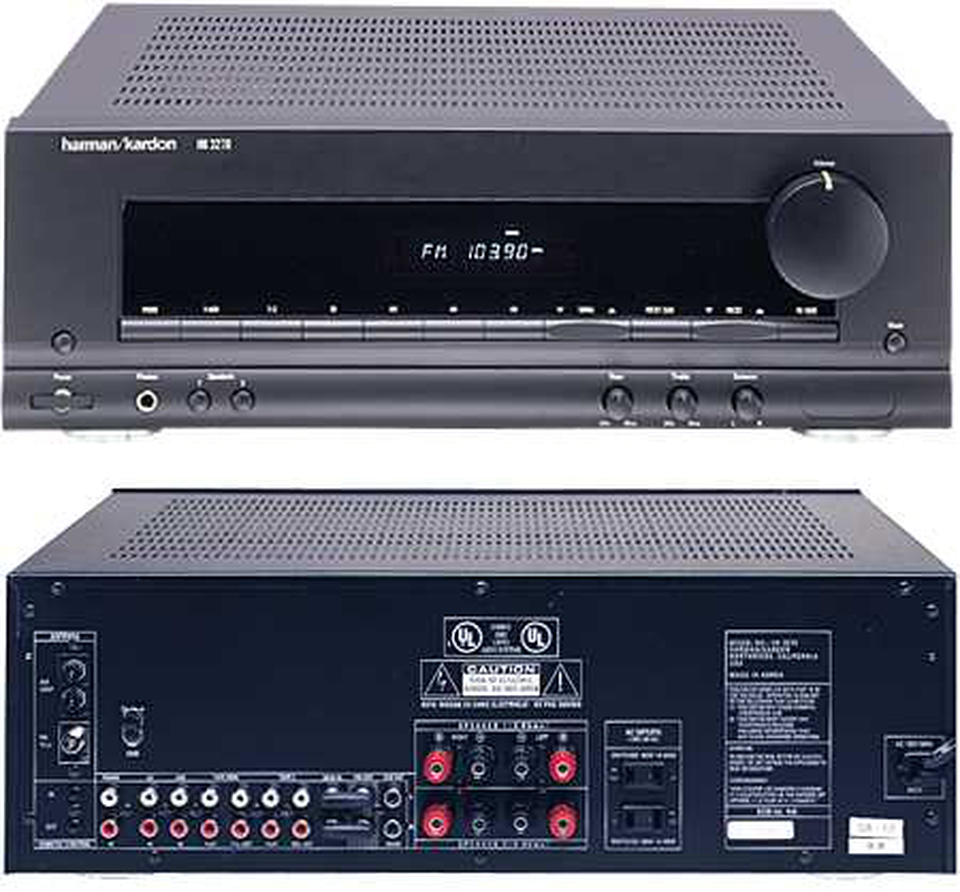

HK 3270

Stereo Receiver (65 watts x 2)

Sold from 1999 until 2000

Predecessor Product:	HK 3250
Successor Product:	HK 3370
Made in:	Korea

Documents & Downloads

Manuals

Owners Manual (English) 258.1 KB

Specifications

General Specifications

Power Requirements: AC12-V/60Hz

Power Consumption: 72W idle, 332W maximum (both channels driven)

MSRP U.S.: $349.95 each

Audio Specifications

Continuous Average Power (FTC) per Channel (stereo mode): 65 Watts/ch, 20Hz – 20kHz @ < 0.08% THD, both channels driven into 8 ohms

Amplifier Power (RMS): 95 Watts/ch, 20Hz – 20kHz @ <0.2% THD, both channels into 4 ohms

Input Level/Impedance: Linear (high level) 200mV/47k ohms

Signal-to-Noise Ratio: 95dB (IHF-A)

Frequency Response: 10Hz – 80kHz (±3dB @ 1 watt)

High Instantaneous Current Capability (HCC): ± 42 Amps

Transient Intermodulation Distortion (TIM): Unmeasurable

Rise Time: 16usec

Slew Rate: 40V/usec

Tuner Specifications

Frequency Range: FM... 87.5 – 108MHz

Usable Sensitivity: FM... IHF 1.12uV/12.3dBf

Signal-to-Noise Ratio: FM... MONO – 72dB

Signal-to-Noise Ratio: FM... STEREO – 70dB

Distortion: FM... Mono/Stereo 0.3/0.5%

Stereo Separation: FM... 40dB @ 1kHz

Selectivity: FM... ±400kHz, 65dB

Image Rejection: FM... >80dB

IF Rejection: FM... >100dB

Tuner Output Level: FM... 1kHz, ±100kHz Dev 500mV

Frequency Range: AM... 520 – 1710kHz

Signal-to-Noise Ratio: AM... >40dB

Usable Sensitivity: AM... Loop 500uV/M

Distortion: AM... 1kHz, 50% Mod 0.8%

Selectivity: AM... ±10kHz, >25dB

High-performance receiver for stereo enjoyment of music and movies. High-Current Capability Amplifier. Ultrawide-Bandwith-Amplifier Design. High-Quality Phono Input. Preamp Out/Main Amp Input Jacks. Subwoofer Output. A/B Speaker Switching. FM Stereo/AM Tuner with 30 Station Presets. Harman Kardon System Remote.
