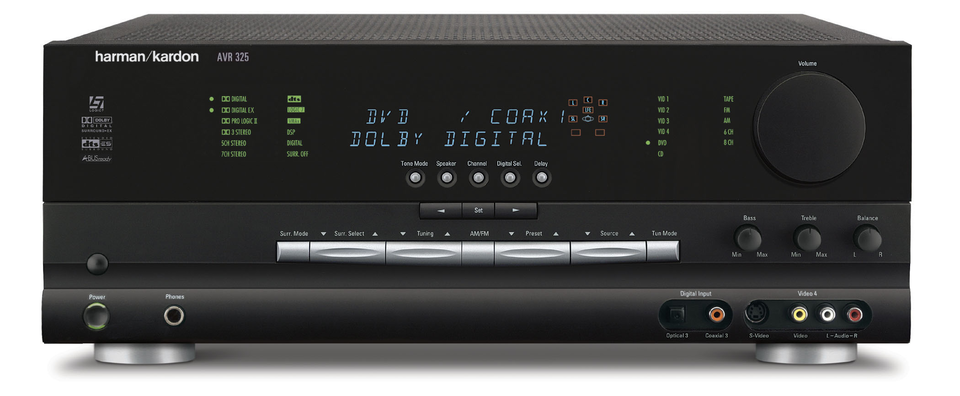

AVR 325

AVR 325

Audio/Video Receiver With Dolby Digital & DTS (65 watts x 2 | 50 watts x 7)

Sold from 2002 until 2003

Predecessor Product: AVR 320
Successor Product: AVR 330
Made in: China

Documents & Downloads

Specifications

Power Requirements
120V AC/60Hz
Power Consumption
118W @ idle, 890W @ rated output (7 channels driven)
MSRP U.S.
$899.95 each
Continuous Average Power (FTC) per Channel (stereo mode)
65 Watts per channel, 20Hz – 20kHz @ <0.07% THD, both channels driven into 8 ohms
Front L & R Channels
50 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
Center Channel
50 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
Surround Channels (L & R Side, L & R Back)
50 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
Input Level/Impedance
200mV/47k ohms - Linear (High-Level)
Signal-to-Noise Ratio
95dB (IHF-A)
Dolby Pro Logic I and II
40dB
Dolby Digital
55dB
DTS
55dB
Frequency Response
10Hz – 100kHz (+0/-3dB @ 1 watt)
Transient Intermodulation Distortion (TIM)
Unmeasurable
Slew Rate
40V/µsec
Width
17.3 inch (440mm)
Height
6.5 inch (165mm)
Depth
17.1 inch (435mm)
Weight
40 lb (18.1kg)
Dimensions:
Television Format
NTSC
Input Level/Impedance
1Vp-p/75 ohms
Output Level/Impedance
1V/75 ohms
Composite and S-Video
10Hz – 8MHz(–3dB)
Component Video
10Hz – 50MHz(–3dB)
Frequency Range
AM... 525 – 1710kHz
Frequency Range
FM... 87.5 – 108.0MHz
Signal-to-Noise Ratio
AM... 45dB
Usable Sensitivity
FM... IHF 1.3µV/13.2dBf
Signal-to-Noise Ratio
FM... Mono/Stereo 70dB/68dB
Usable Sensitivity
AM... Loop 500µV
Distortion
AM... 1kHz, 50% Mod. 0.8%
Distortion
FM... Mono/Stereo 0.2%/0.3%
Selectivity
AM... ± 10kHz, 30dB
Stereo Separation
FM... 40dB @ 1kHz
Selectivity
FM... ± 400kHz, 70dB
Image Rejection
FM... 80dB
IF Rejection
FM... 90dB
High Instantaneous Current Capability (HCC)
± 35 Amps

The AVR 325's seven-channel amplifier has all the muscle needed for the most demanding digital soundtracks, while an EzSet; remote and comprehensive menu system make setup easy. All the popular surround modes are available, along with assignable rear-channel amplifiers, an RS-232 port and a standard Zone II remote for the multizone system.

FAQs & How-Tos

1 results
  • The remote is only capable of operating one device at a time (unless you have programmed advanced functions such as Volume, Channel or Transport control Punch-Through). When you press the Source Selector to operate your other product, such as the DVD player, the remote cannot control any other product, including the AVR, until you press the AVR Button again. To avoid your problem in the future, always press the AVR Button or appropriate Source Selector before you enter any command.
