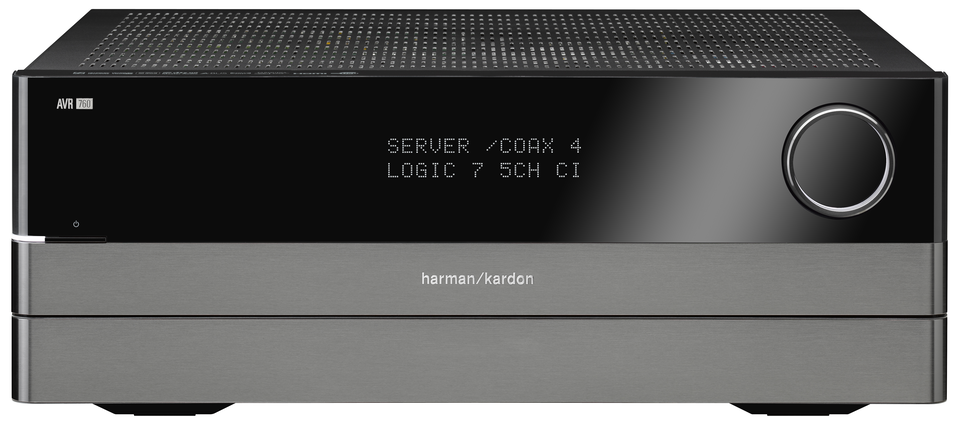

AVR 760

AVR 760

7 x 85W 7.2-ch AV receiver with HDMI 1.4, The Bridge II included

Documents & Downloads

Specifications

Type
7.2-Channel AVR
Continuous Average Power (FTC) per Channel (stereo mode)
100 x 2 / 20Hz – 20kHz, 8 ohms, both channels driven
Continuous Average Power (FTC) per Channel (surround modes)
85 x 7 / 20Hz – 20kHz, 8 ohms, all channels driven
Amplifier Type
High-Current ±60 amps
Total Harmonic Distortion
0.07% @ 8 ohms
Bandwidth
20Hz – 20kHz
Bandwidth @ 1W (-3dB)
10Hz – 130kHz
Signal-to-Noise Ratio
100dB (IHF-A)
Power Supply
Independent front & rear
Surround Modes
Dolby Digital Plus, Dolby TrueHD, Dolby Digital EX, Pro Logic IIx, Dolby Virtual Speaker, DTS-HD, DTS-HD Master Audio, DTS 5.1, DTS-ES 6.1 Discrete & Matrix, DTS 96/24, DTS Neo...6, Logic 7
Headphone Modes
2-Channel, Dolby HP
Multizone Capability
Audio/video, with remote
Assignable Rear-Channel Amplifiers
Yes
A-BUS Ready
Yes
EzSet
EzSet/EQ II
S-Video/Component Video Inputs
4
Analog Audio Inputs
6
Digital Audio Inputs
Rear panel 3/3
Digital Audio Inputs
Front panel 1/1
Digital Audio Outputs (Coax/Optical)
Rear panel 1/1
USB Port
Yes
Ethernet Input
Yes
Digital Input Polling
All video inputs
Direct Audio Inputs
7.1 With bass management
DMP The Bridge II Input
Yes
HDMI
1.3a With audio/video processing
HDMI
Inputs... 4
HDMI
Output... 1
Preamp Outputs
7.2 Channels
Component Video Inputs (Assignable)
3 @ 100MHz
Bass Management
Quad crossover
On-Screen Display
Yes, on HDMI and component
Input Titling
All inputs
DSP Processor
Dual TI DA 710
Output DACs
192kHz/24-bit
Video Processing / Conversion
Faroudja DCDi Cinema/scaling to 1080p
High-Resolution GUI
Yes
A/V Sync Delay
200mS
IEC Detachable Power Cord
Yes
System Remote
8-Device, backlit, learning & preprogrammed
IR In/Out Jacks
Yes
IR Carrier Output
Yes
Discrete Remote On/Off Codes
Yes
Low-Voltage Trigger Jacks
2
External Data Port
USB and RS-232
Speaker Terminals
Color-coded binding posts
Weight
23.6kg
Dimensions (H x W x D)
151mm x 440mm x 426mm

Harman Kardon® is one of the audio industry’s most-powerful and most-capable companies, and the AVR 760 is the most-powerful and most-capable A/V receiver it makes. So it should come as no surprise that the AVR 760 does almost everything you can imagine – including automatically adjusting volume levels when you switch between sources and channels, thanks to new Dolby Volume technology. Two onboard 32-bit DSP processors deliver other essential Dolby and DTS technologies, including Dolby TrueHD and DTS-HD. The latest version of our exclusive Logic 7 processing and Faroudja DCDi Cinema video processing are included to make any source material look as great as it sounds. Whatever input you throw at it – HDMI, analog, component or S-video sources; computer-based audio via a direct USB connection or from thumb drives; or your iPod using our The Bridge II docking station – the AVR 760 can handle it. You can even use a broadband connection to access a wide range of Internet radio stations. And the AVR 760 easily enables multiroom video and audio applications with Zone II and A-BUS® technology. With a true 85 watts of power to drive each of seven channels, dual subwoofer outputs and the EzSet/EQ II system to precisely tune the system’s performance parameters to the acoustic requirements of your space, the AVR 760 is the ideal receiver to satisfy a houseful of entertainment needs.
