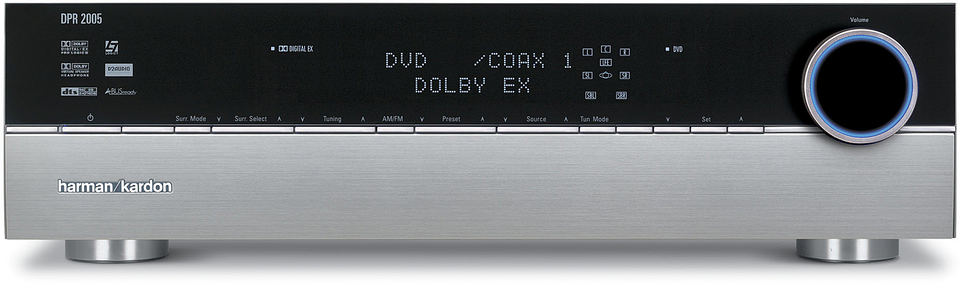

DPR 2005

DPR 2005

Digital Path Audio/Video Receiver With Dolby Digital & DTS (120 watts x 7)

Sold from 2004 until 2006

Predecessor Product: DPR 1005
Made in: China

Documents & Downloads

Specifications

Power Requirements
AC 120V/60Hz
Power Consumption:
Digital Inputs (coaxial/optical)
2/2 on Rear; 1 (switchable to output)/1 on front
Standby:
8.9W
Analog Inputs
1 A/V on front panel (switchable to output)
Analog Inputs
2 audio-only
Analog Inputs
5 A/V on rear panel
Analog Inputs
6-/8-channel input
Analog Inputs
tuner
Idle:
58W
Max (7 channels driven):
1073W
On-Screen Display
Yes
Multizone Capability
Audio; A-BUS Ready; RS-232 serial control port; surround back channels assignable to remote zone; Zone II remote
Auto Setup
EzSet remote
Remote Control
Backlit, eight-device, programmable learning remote(2-line LCD display)
Shipping Weight (System, Accessories, Packing)
26.4 lb (12.5kg)
MSRP U.S.
$1799.95 each
# of Amplifier Channels
7
Continuous Average Power (FTC) per Channel (stereo mode)
120 Watts per channel, 20Hz – 20kHz, @ <0.15% THD, both channels driven into 8 ohms
Front L & R Channels
120 Watts per channel @ <0.15% THD, 20Hz – 20kHz into 8 ohms
Center Channel
120 Watts @ <0.15% THD, 20Hz – 20kHz into 8 ohms
Surround Channels (L & R Side, L & R Back)
120 Watts per channel @ <0.15% THD, 20Hz – 20kHz into 8 ohms
Input Level/Impedance
200mV/47k ohms - Linear (High-Level)
Signal-to-Noise Ratio
97dB (IHF-A)
Surround System Adjacent Channel Separation:
Dolby Pro Logic I/II/IIx
40dB
Dolby Digital
55dB
DTS
55dB
Transient Intermodulation Distortion (TIM)
Unmeasurable
Width
17.3 inches (440mm)
Height
4.5 inches (114mm)
Depth
18.8 inches (476mm)
Weight
23.1 lb (10.5kg)
Dimensions:
Carton Dimensions
22.6 inches x 8.9 inches x 21.9 inches (573mm x 225mm x 555mm)
Television Format
NTSC
Input Level/Impedance
1Vp-p/75 ohms
Output Level/Impedance
1V/75 ohms
Video Frequency Response:
Composite and S-Video
10Hz – 8MHz (–3dB)
Component Video
10Hz – 50MHz (–3dB)
Frequency Range
AM... 520 – 1720kHz
Frequency Range
FM... 87.5 – 108.0MHz
Signal-to-Noise Ratio
AM... 45dB
Usable Sensitivity
FM... IHF 1.3µV/13.2dBf
Signal-to-Noise Ratio
FM... 70/68 dBA (Mono/Stereo)
Usable Sensitivity
AM... Loop 500µV
Distortion
AM... 1kHz, 50% Mod 0.8%
Distortion (Mono/Stereo)
FM... 0.2/0.3%
Selectivity
AM... ± 10kHz, 30dB
Stereo Separation
FM... 40dB @ 1kHz
Selectivity
FM... ± 400kHz, 70dB
Image Rejection
FM... 80dB
IF Rejection
FM... 90dB
Amplifier Power (RMS)
120 x 7 @ 8 ohms (20Hz – 20kHz, <0.15% THD) (all channels driven at full power)

Digital performance, stylishly presented. The DPR 2005 uses our digital path topology to link your program sources directly to a powerful amplifier without analog interference. Advanced digital processing handles all of the latest surround formats from Dolby and DTS, including Dolby Pro Logic IIx, Dolby Virtual Speaker and DTS 96/24. Of course, our proprietary Logic 7 technology is also present to give older stereo and matrix soundtracks a full 7.1 presentation. A wide range of multiroom options, including A-BUS Ready connectivity, assignable rear channels and a separate Zone II remote, lets you enjoy audio tracks throughout the house. If you want the latest technology in a compact yet elegant form, the DPR 2005 is the perfect choice.
