TRIO 135

Dual 3 inch Center / (2) 3 inch Full Range Surround Speakers

Sold from 2000 until 2001

Predecessor Product:	FLIX 10

Documents & Downloads

Manuals

Owners Manual (English) 124.11 KB

Specifications

General Specifications

MSRP U.S.: $199.95 per system

Dimensions

Weight: CENTER... 1.89 lb (0.86kg.)

Weight: SATELLITES... 1.1 lb (0.5kg.)

Dimensions (H x W x D): CENTER... 3-1/4 inch x 7-5/8 inch x 3-3/4 inch (83mm x 194mm x 95mm)

Dimensions (H x W x D): SATELLITES... 4-3/8 inch x 3-3/16 inch x 3-3/4 inch (111mm x 81mm x 95mm)

Satellite Speaker Specifications

Recommended Amplifier Power (RMS): 10 – 100

Nominal Impedance: 8 ohms

Sensitivity (2.83 volts @ 1 meter): 86dB

Frequency Response: 200Hz – 20kHz (-6dB)

High-Frequency Transducer (Tweeter): .5 inch (13mm) titanium-laminate dome, video-shielded

Midrange Transducer: 3 inch driver, video-shielded

Center Speaker Specifications

Recommended Amplifier Power (RMS): 10 – 100

Nominal Impedance: 8 ohms

Sensitivity (2.83 volts @ 1 meter): 86dB

Frequency Response: 200Hz – 20kHz (-6dB)

High-Frequency Transducer (Tweeter): .5 inch (13mm) titanium-laminate dome, video-shielded

Midrange Transducer: Dual 3 inch drivers, video-shielded

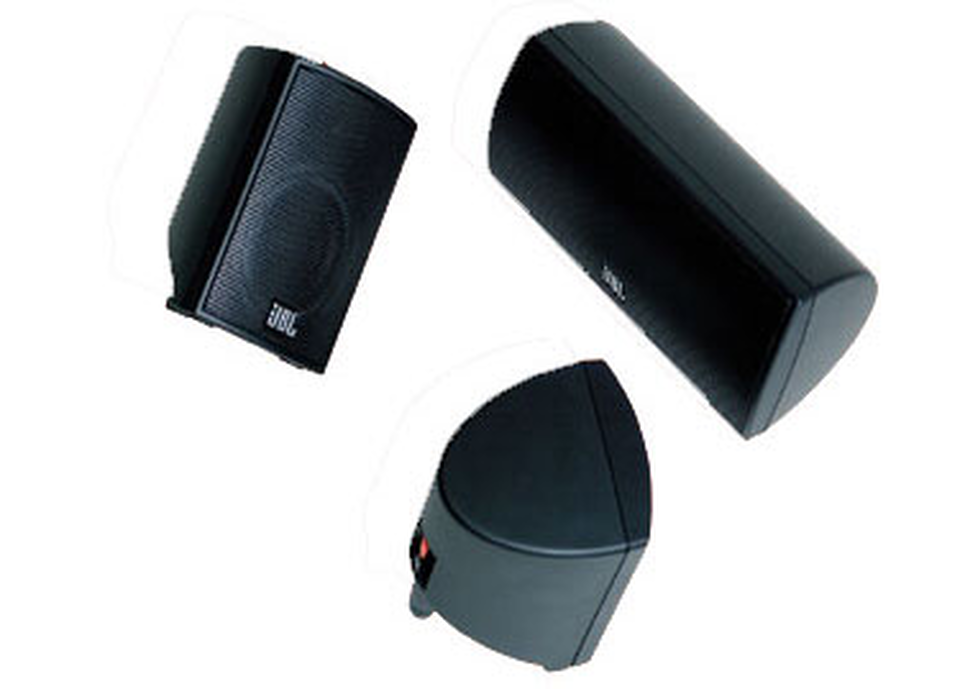

The people who made home cinema sound as good as the theater now make it easy. Add these two 3 inch satellites and dual woofer center speaker for dialogue to your existing two speaker system and you've got instant surround sound. Comes with wall mount brackets for the satellites and an adjustable support leg for the center. Video shielded.
