Support Overview / Speakers / In-Wall / In-Ceiling / OWS 1

OWS 1

2-Way 6-1/2 inch On-Wall Speaker

Documents & Downloads

Manuals

Owners Manual (English) 72.73 KB

Other

DIY Troubleshooting (English) 107.36 KB

Specifications

General Specifications

Finish: Black/Charcoal, White

Technology: CMMD

Frequency Response: 70 – 20kHz (±3dB)

Recommended Amplifier Power (RMS): 15 – 125 watts

Sensitivity (2.83 volts @ 1 meter): 90dB

Nominal Impedance: 8 ohms

Crossover Frequency(ies): 2,500Hz; 24dB/octave

Low-Frequency Transducer (Woofer): 6-1/2 inch (165mm) CMMD

MSRP U.S.: $319.95 per pair

Dimensions

Weight: 6.5 lb (3.0kg)

Dimensions (H x W x D): 14-1/2 inch x 9 inch x 4-1/2 inch

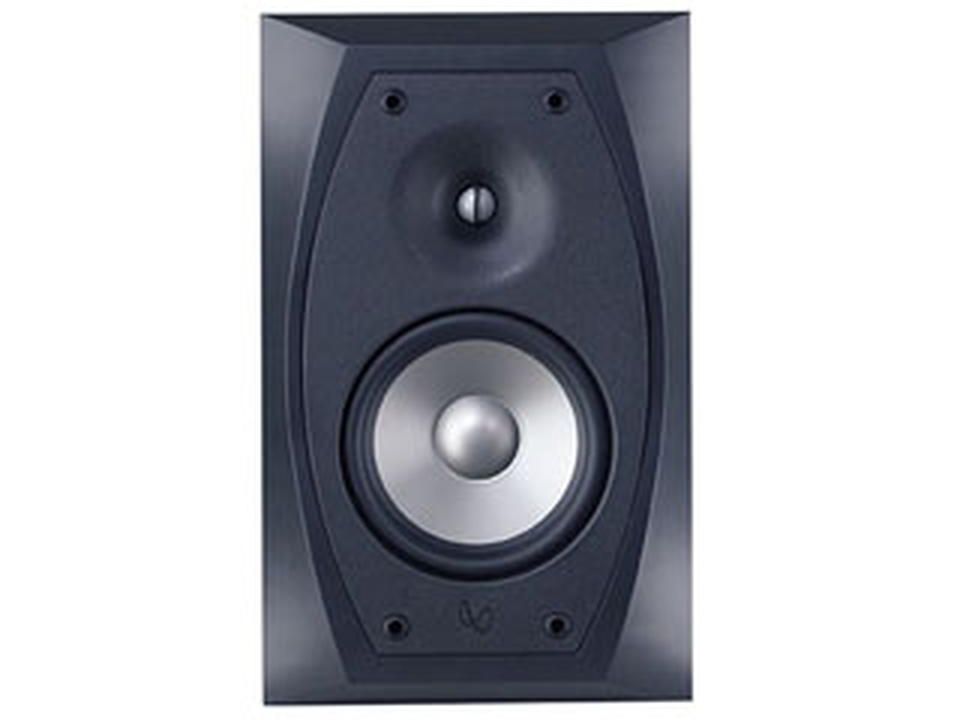

The OWS-1 is an on-wall speaker designed to complement any Infinity speaker series with CMMD; or MMD; drivers, in a variety of applications. Using an ultrathin enclosure that measures only 4-1/2 inch deep, the OWS-1 is ideal for use as a surround channel or as an alternative to in-wall speakers. The OWS-1 incorporates Infinity's proprietary Ceramic Metal Matrix Diaphragm (CMMD;) technology to eliminate unwanted resonances and deliver clear, undistorted sound. Available in a black or white finish, the OWS-1 fits easily into any decor.
