Support Overview / Speakers / In-Wall / In-Ceiling / SOUNDPOINT SP 8C

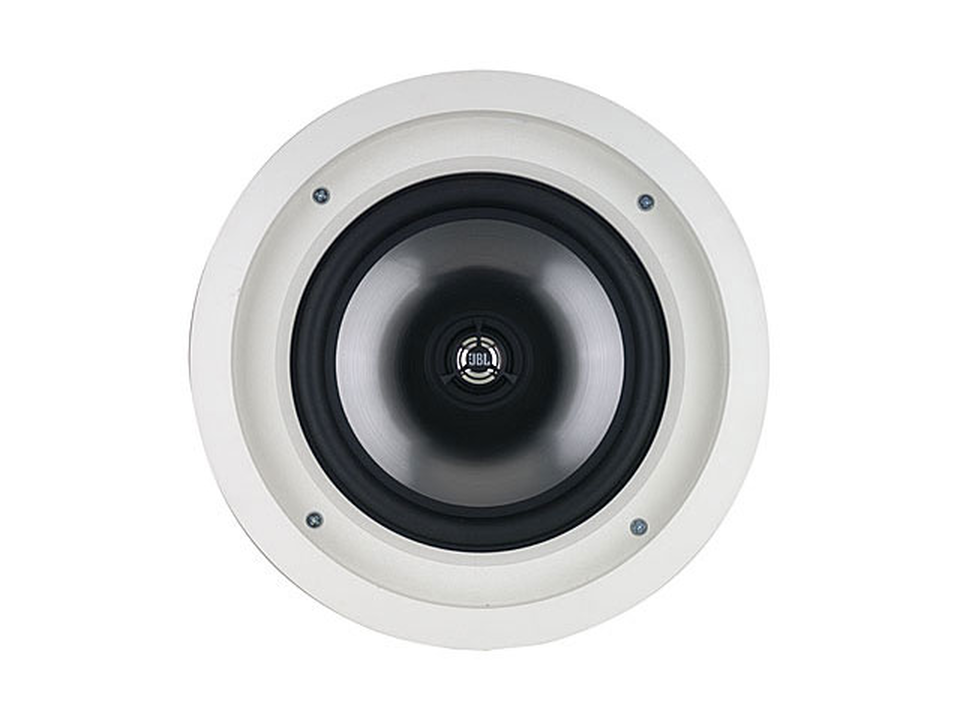

SOUNDPOINT SP 8C

2-Way 8 inch In-Ceiling Speaker

Sold from 2002 until 2006

Successor Product:	SOUNDPOINT SP 8C II
Made in:	China

Documents & Downloads

Manuals

Owners Manual (English) 92.43 KB

Other

DIY Troubleshooting (English) 46.22 KB

Specifications

General Specifications

Sensitivity (2.83 volts @ 1 meter): 89dB

Low-Frequency Transducer (Woofer): 8 inch Titanium-laminate cone with rubber surround

High-Frequency Transducer (Tweeter): 1 inch (25mm) Titanium-laminate dome with swivel mount

Recommended Amplifier Power (RMS): 100 Watts

Frequency Response: 32Hz – 20kHz (-10dB)

Crossover Frequency(ies): 2.4kHz

MSRP U.S.: $499.95 per pair

Dimensions

Plate Size (Diameter): 10-7/8 inch (275mm)

Mounting Depth: 4-1/4 inch (108mm)

Cutout Dimensions: 9-1/2 inch (240mm)

This 2-way in-ceiling loudspeaker delivers powerful, clear JBL sound in a spacesaving package. The Titanium-laminate cone woofer with rubber surround delivers tight bass for extended listening sessions. Includes integrated dog-ear brackets for retrofit applications. Optional snap-together rough-in frames (RIF8C) available separately for new construction.
