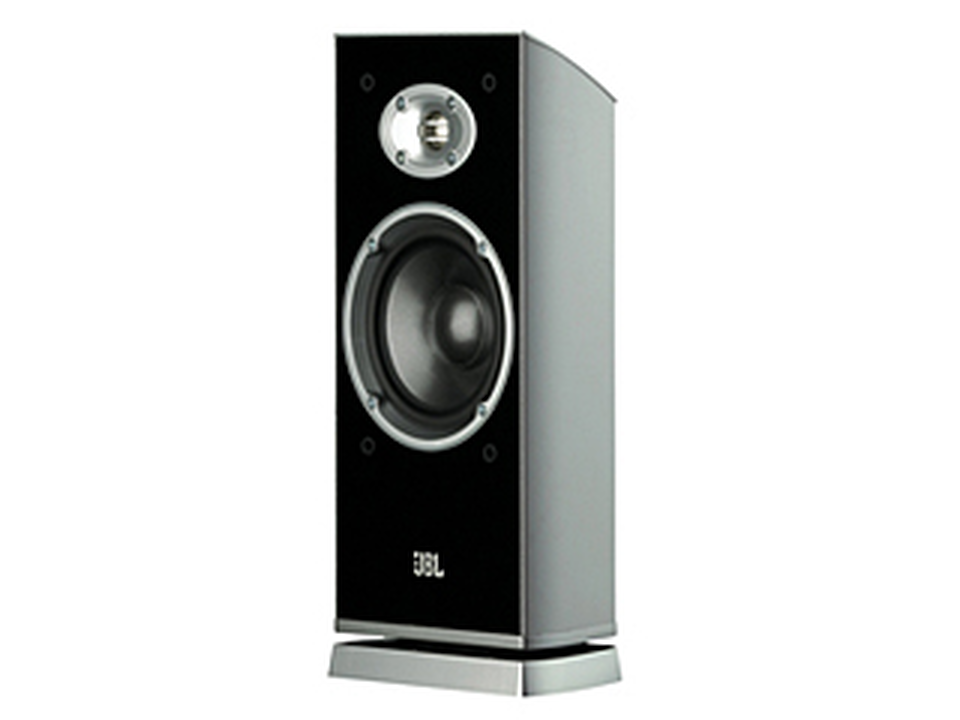

CINEMA SOUND CSB 5

2-Way, 5 inch (130mm) Bookshelf/On-Wall Loudspeaker

Sold from 2007 until 2011

Predecessor Product:	VENUE MONITOR
Successor Product:	CSB6
Made in:	China

Documents & Downloads

Manuals

Owners Manual (English) 878.4 KB

Specifications

General Specifications

Wall-Mount Capable: Bracket included

Weight (lb): 4.5 lb

Weight (kg): 2.1kg

Height (mm): 363mm

Width (mm): 155mm

Width ( in): 14-5/16"

Height (in): 6-1/8"

Frequency Response: 60Hz – 30kHz (-6dB)

Recommended Amplifier Power (RMS): 125 Watts

Power Handling (peak): 300 watts

Crossover Frequency(ies): 3.2kHz; 12dB/octave

Low-Frequency Transducer (Woofer): 5 inch (130mm) PolyPlas, video-shielded

High-Frequency Transducer (Tweeter): 3/4 inch (19mm) Titanium-laminate dome, video-shielded

MSRP U.S.: $399.95 per pair

Audio Specifications

Type: Bookshelf

Low-Frequency Transducer: 5" (130mm) Transducer with PolyPlas™ cone, neodymium magnet and HeatScape™ motor structure, video-shielded

High-Frequency Transducer: 3/4" (19mm) Titanium-laminate dome, video-shielded

Maximum Recommended Amplifier Power: 125

Frequency Response: 60Hz – 30kHz (–6dB)

Nominal Impedance: 8 Ohms

Sensitivity (2.83V@1m): 88

Designed to perfectly integrate with the latest flat-panel and plasma televisions, the JBL Cinema Sound; CSB5 brings JBL's professional experience to your home. Proprietary JBL technology, such as PolyPlas;-reinforced woofers and titanium-laminate tweeters mounted in Elliptical Oblate Spheroidal; (EOS;) waveguides, means your favorite music and movies sound just as the artist intended. The CSB5 features a silver enclosure with a high-gloss-black front panel and black grille to complement any living environment. Wall-mount brackets are included.
