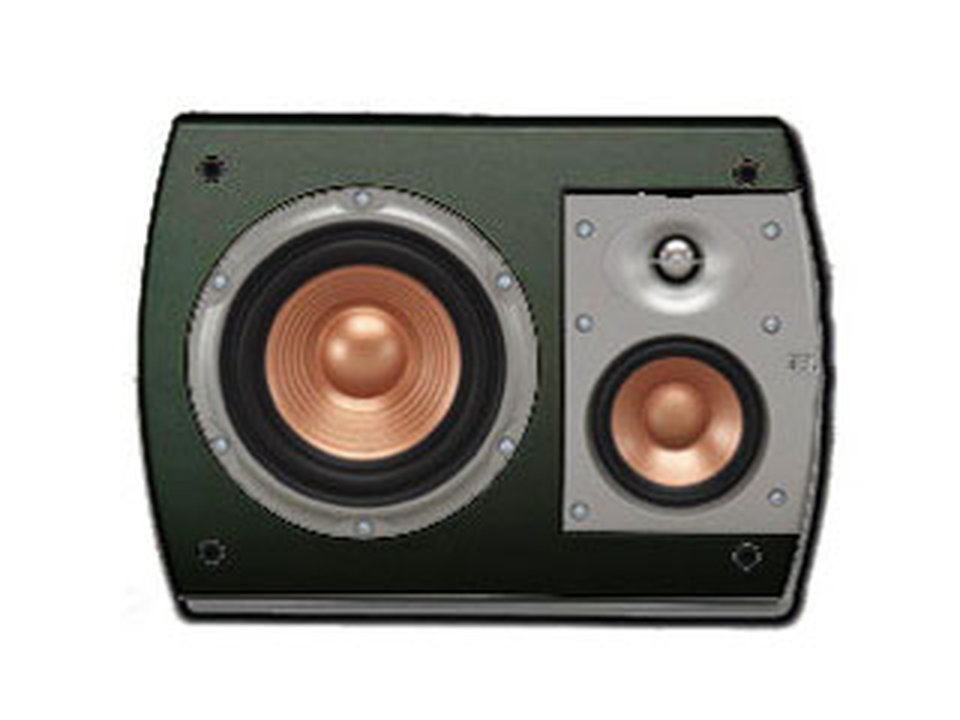

STUDIO S36

3-Way 6 1/2 inch Bookshelf/Surround Speaker

Sold from 2000 until 2001

Predecessor Product:	HP 6B
Successor Product:	STUDIO S36 II

Documents & Downloads

Manuals

Owners Manual (English) 70.58 KB

Other

DIY Troubleshooting (English) 107.94 KB

Specifications

General Specifications

Recommended Amplifier Power (RMS): 150 Watts

Nominal Impedance: 8 ohms

Sensitivity (2.83 volts @ 1 meter): 90dB

Frequency Response: 60Hz – 20kHz (-3dB)

Crossover Frequency(ies): 800Hz, 3200Hz

High-Frequency Transducer (Tweeter): 1 inch (25mm) Pure-titanium dome with EOS waveguide

Midrange Transducer: 4 inch PolyPlas cone

Low-Frequency Transducer (Woofer): 6 inch PolyPlas cone

MSRP U.S.: $449.95 per pair

Dimensions

Weight: 11 lb (5kg.)

Dimensions (H x W x D): 10-1/4 inch x 14-5/8 inch x 5 inch (260mm x 371mm x 127mm)

Your favorite albums were probably recorded using JBL Studio Monitors. Why not listen to them on speakers using the same technologies found in many professional recording studios? This 3-way 6 inch loudspeaker with Elliptical Oblate Spheroidal; (EOS) waveguide reproduces sound with unparalleled detail, thanks to a pure-titanium tweeter, PolyPlas; woofer, high-temp, oversized Kapton voice coils and low diffraction, IsoPower; baffle. Video shielded.
