Support Overview / Speakers / Stereo & Surround Speakers / Center / CC 3

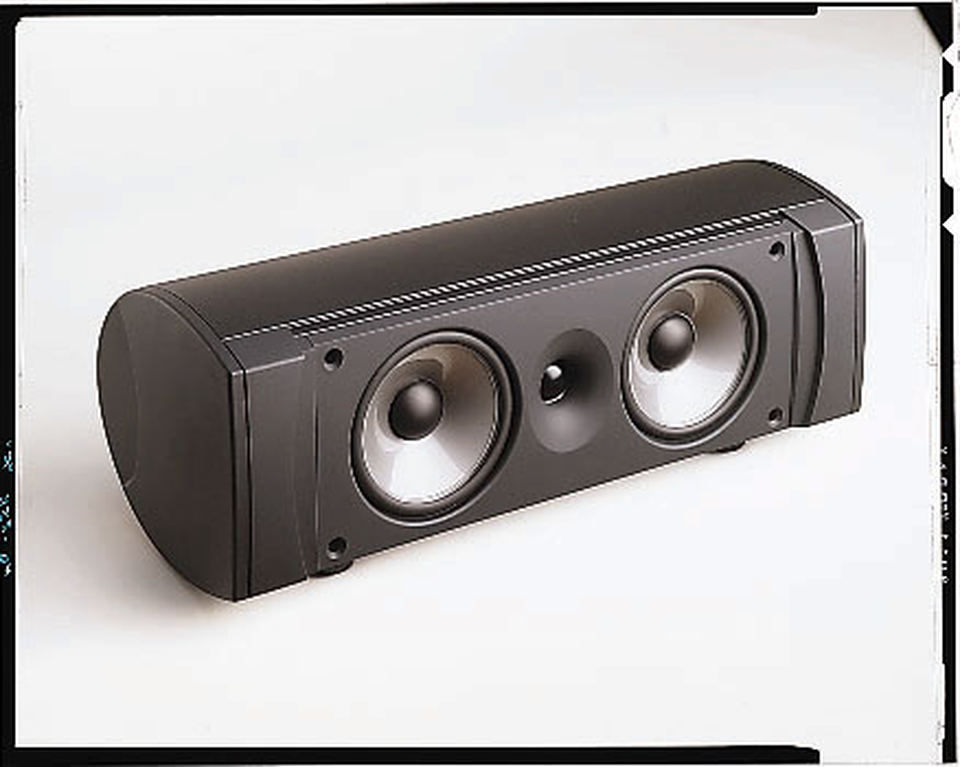

CC 3

2-Way 150 Watt Center Channel Speaker

Documents & Downloads

Manuals

Owners Manual (English) 524.73 KB

Other

DIY Troubleshooting (English) 318.65 KB

Specifications

General Specifications

Frequency Response: 80Hz – 20kHz

Sensitivity (2.83 volts @ 1 meter): 91dB

Nominal Impedance: 8 ohms

Crossover Frequency(ies): 2.8kHz

Recommended Amplifier Power (RMS): 10 – 150 Watts (@ 8 ohms)

Power Output: 111dB (spl on program)

Low-Frequency Transducer (Woofer): (2) 5-1/4 inch (125mm) magnetically shielded

High-Frequency Transducer (Tweeter): 1 inch (25mm) soft dome, neodymium magnet, magnetically shielded

MSRP U.S.: $549.95 each

The center channel is the soul of the home theater, carrying the actor's emotion over the roar of the action. No center channel ever had more soul than the CC-3, thanks to a power rating of up to 150 watts, two 5-1/4 inch bass drivers, and a 1 inch high-frequency driver. Fits seamlessly into any home theater setup. Prior season's model.
