TSS 1100

TSS 1100

Complete Multichannel Music and Home Theater Loudspeaker System (TSS CENTER 1100, TSS SAT 1100, TSS SUB 1100)

Sold from 2003 until 2006

Predecessor Product: ENTRA POINT 5 (FIVE)
Successor Product: TSS 1200
Made in: China

Documents & Downloads

Specifications

Enclosure Design
Aluminum
Finish
Charcoal, Platinum
Technology
MMD
MSRP U.S.
$1099.95 per system
Weight
CENTER... 4.5 lb (2.0kg)
Weight
SATELLITES... 4.5 lb (2.0kg)
Weight
SUBWOOFER... 44 lb (20kg)
Dimensions (H x W x D)
CENTER... 4-1/8 inch x 9-1/4 inch x 4-3/8 inch (105mm x 235mm x 111mm)
Dimensions (H x W x D)
SATELLITES... 9-1/4 inch x 4-1/8 inch x 4-3/8 inch (235mm x 105mm x 111mm)
Dimensions (H x W x D)
SUBWOOFER... 17-3/4 inch x 12 inch x 16-1/8 inch (451mm x 305mm x 410mm)
Frequency Response
29Hz – 150Hz (±3dB)
Amplifier Power (RMS)
250 watts
Subwoofer Transducer
12 inch MMD
Crossover Frequency(ies)
50Hz – 150Hz, 24dB/octave continuously variable
Frequency Response
120Hz – 20kHz (±3db)
Recommended Amplifier Power (RMS)
10 – 125 watts
Sensitivity (1 watt @ 1 meter)
89dB
Nominal Impedance
8 ohms
Crossover Frequency(ies)
3500Hz, 24dB/octave
Midrange Transducer
Dual 3-1/2 inch MMD, magnetically shielded
High-Frequency Transducer (Tweeter)
3/4 inch MMD, magnetically shielded
Frequency Response
120Hz – 20kHz (±3dB)
Recommended Amplifier Power (RMS)
10 – 125 watts
Sensitivity (2.83 volts @ 1 meter)
89dB
Nominal Impedance
8 ohms
Crossover Frequency(ies)
3500Hz, 24dB/octave
Midrange Transducer
Dual 3-1/2 inch MMD, magnetically shielded
High-Frequency Transducer (Tweeter)
3/4 inch MMD, magnetically shielded

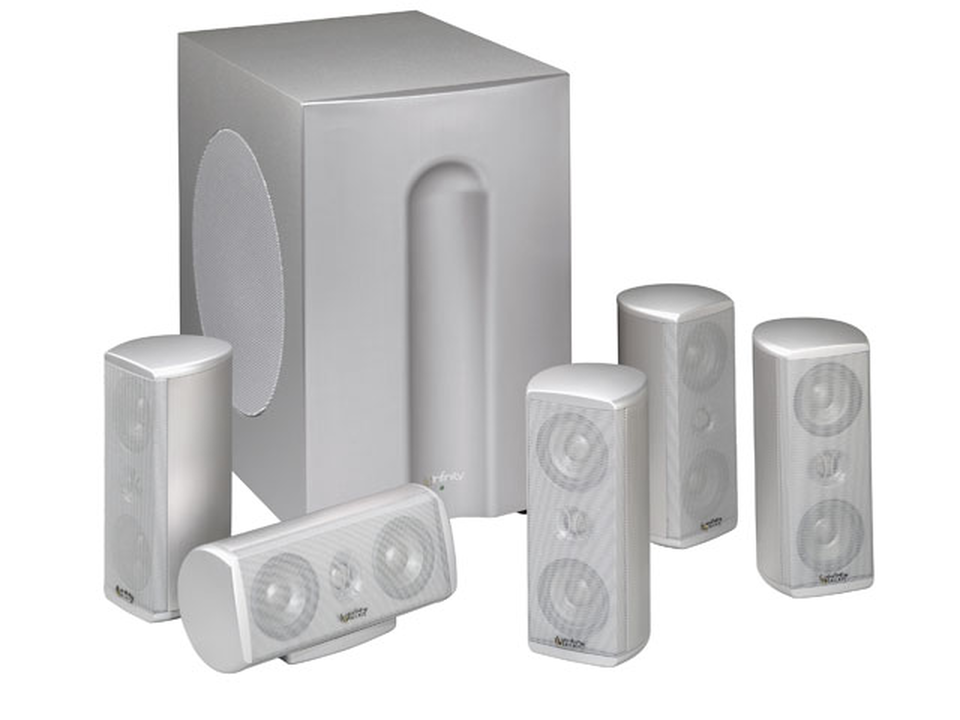

The Infinity Total Solutions; TSS-1100 is a complete multichannel music and home theater loudspeaker system featuring proprietary MMD; drivers. With their compact and versatile design, the satellite speakers can be placed virtually anywhere - on shelves, or mounted on a wall using the included bracket. The center channel can easily be placed on top of, or on a shelf below, the television.The included cradle allows you aim the center channel up when it is placed below the TV or down when it is placed above to direct the sound toward the listening area. The powered subwoofer delivers the bass impact and excitement for your favorite music and movie soundtracks. The satellites and center channel feature extruded and brushed aluminum enclosures. Available in platinum and charcoal finishes.
