SAT 500

SAT 500

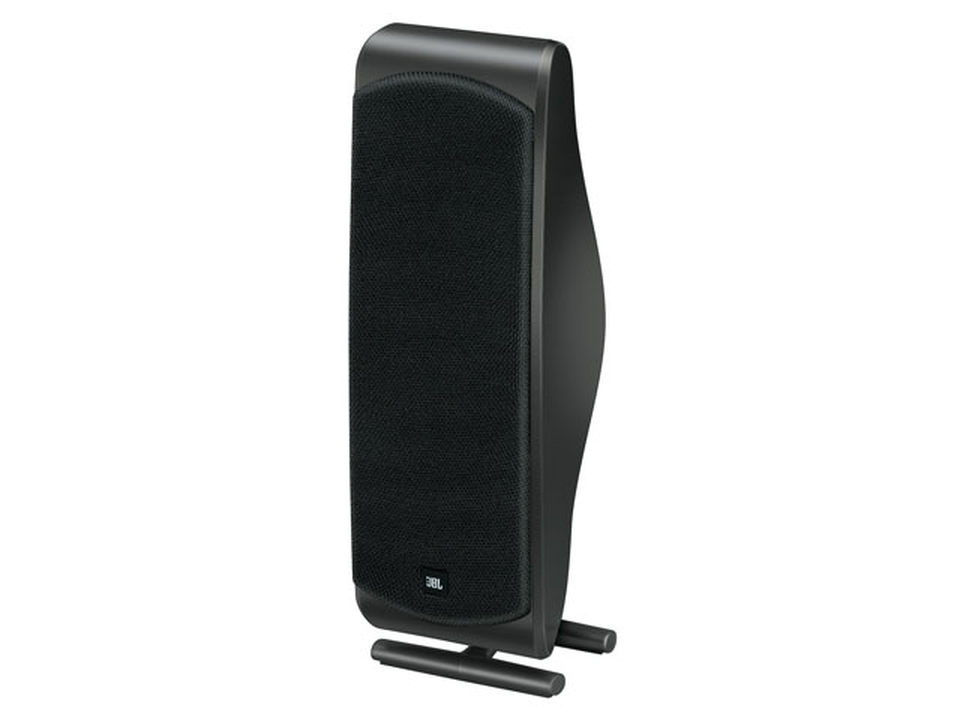

2-Way Dual 3-1/2 inch Wall-Mountable Satellite/Surround Speaker. Part of the SCS500 system.

Sold from 2007 until 2011

Predecessor Product: SAT 300
Made in: China

Documents & Downloads

Specifications

Series
Surround Cinema Sound Series
Wall-Mount Capable
Yes - Adjustable and Fixed Bracket Included
Optional Accessories
FS1000BK – Floor Stands
MSRP U.S.
$159.95 per pair
Sensitivity
(2.83V@1m) 88dB
Nominal Impedance
8 ohms
Frequency Response
(-6dB) 100Hz – 20kHz
Maximum Recommended Amplifier Power
100W
Height (in)
11-1/2
Depth (in)
3-1/2
Weight (kg)
1.4
Width ( in)
4
Depth (mm)
89
Height (mm)
292
Width (mm)
102
Weight (lb)
3
Weight
SATELLITES... 3 lb (1.4kg)
Dimensions (H x W x D)
11-1/2 inch x4 inch x 3-1/2 inch* (292mm x 102mm x 89mm*) *Not including shelf stand
Midrange Transducer
Dual 3" (75mm) drivers, video-shielded
High-Frequncy Transducer
1/2" (13mm) Titanium-laminate dome,
Recommended Amplifier Power (RMS)
100 Watts
Nominal Impedance
8 ohms
Sensitivity (1 watt @ 1 meter)
88dB
Frequency Response
100Hz – 20kHz (-6dB)
High-Frequency Transducer (Tweeter)
.5 inch (13mm) (13mm) Titanium-laminate dome, video-shielded
Midrange Transducer
Dual 3-1/2 inch (75mm) Drivers, video-shielded

The SCS SAT500 satellite speakers can be placed virtually anywhere – on shelves, or mounted on a wall using the included bracket. They are individually packaged so expanding to 6- or 7-channel home theater is easy.

Full-spectrum audio always requires bright, pronounced high-frequency sound. JBL® engineers use an extremely rigid titanium-laminate dome, reinforced with a foil laminate. Doing so ensures undistorted high-frequency response, even when you have the volume cranked.
Another high JBL standard: Because of its two-way speaker design and quality cabinetry, this speaker reproduces a full range of frequencies and lifelike imaging with clarity and presence.
Nothing is over- or under-emphasized. With a frequency response of 120Hz to 20KHz, this speaker reproduces a full sound range ? from deep bass tones to ultrahigh frequencies.
You can put the speaker anywhere that makes sense. It’s magnetically shielded for safe placement near your TV or display. You can also mount it on your wall, place it on your desk with an optional shelf stand or set it on the floor with an optional tower stand.
The elegant JBL® SCSSAT500.5 system looks at home in any listening environment and will complement the newest flat-screen plasma and LCD TVs in your home audio setup.
