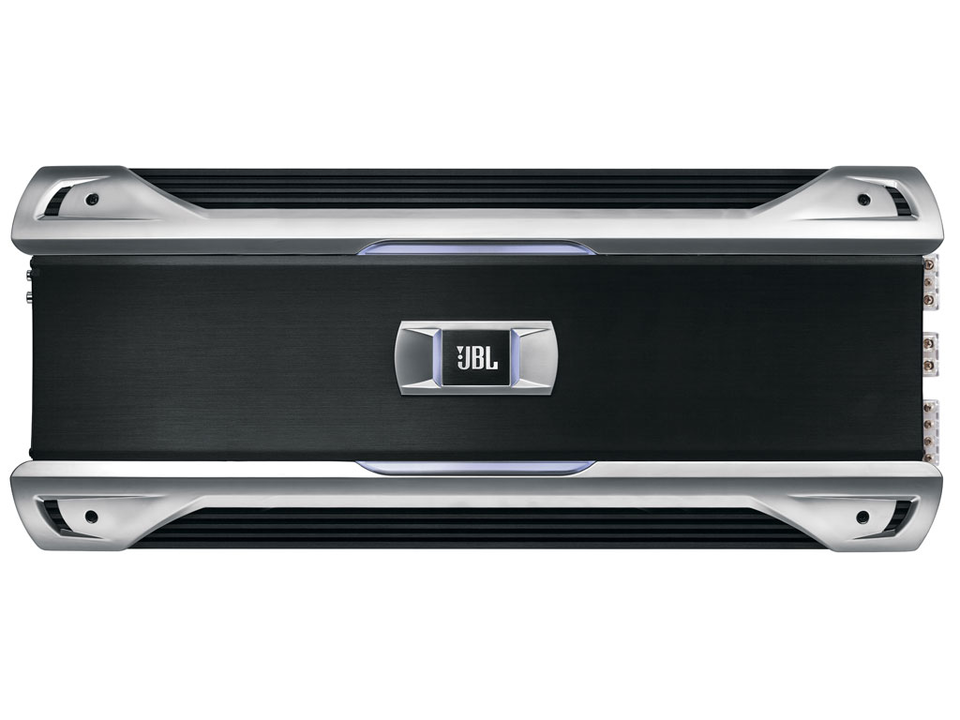

GRAND TOURING GTO 24001

GRAND TOURING GTO 24001

2400 Watt Mono Subwoofer Amplifier

Sold from 2009 until 2011

Predecessor Product: POWER BPX 2200.1
Successor Product: GTO-1001EZ
Made in: China

Documents & Downloads

Product Specifications

Series
GTO
Width( in)
10-3/8
Maximum input signal
6V
Amplifier Power (RMS)
1750W x 1 channel @ 4 ohms 2400W x 1 channel @ 2 ohms
Signal-to-Noise Ratio
97dBA (reference rated power into 4 ohms)
Total Harmonic Distortion
0.5% (rated power @ 4 ohms)
Frequency Response
20Hz – 320Hz (–3dB)
MSRP U.S.
$1200 each
4-Ohm Power Output
1700W RMS x 1 channel
2-Ohm Power Output
2400W RMS x 1 channel
Total Peak Power Output (watt)
2400
Signal-to-Noise Ratio
97dBA
Frequency Response (-3dB)
20Hz–320Hz
THD + N
0.50%
Input Sensitivity
200mV
Total Peak Power Output
2400
Frequency Response
20Hz–320Hz
Maximum Input Signal
6V
Height (mm)
53
Width (mm)
263
Depth (mm)
630
Height (in)
2-1/8
Depth (in)
24-13/16
Width (in)
10-3/8
Dimensions
630mm x 263mm x 53mm (L x W x H)

Massive bass power that puts you in the driver’s seat.

2400 Watt Mono Subwoofer Amplifier with built-in variable electronic crossover, Dynamic Bass Optimization Circuit (DBO) crossover and included Remote Bass Level control.

Cars are small, and the space inside them is a challenge to any audio engineer – even JBL engineers. But the GTO24001 gives you big, commanding sound. You’ll have 2400 watts of RMS at an impedance of two ohms and 1700 at four ohms.
The GTO24001’s variable electronic crossover (at 12 decibels per octave) lets you optimize tuning based on your speaker’s location and components. And you can do it easily – even if you’re not an audio engineer.
Dynamic Bass Optimization (DBO) is a JBL technology that lets you fine-tune your system’s bass output better than conventional bass-equalization circuits can. It includes a frequency control for the high-pass filter and a boost control that provides up to 12 decibels of bass boost.
With a frequency response of 20Hz – 320Hz, the GTO24001 reproduces virtually all deep bass tones cleanly. Its full-range preamp outputs allow for multiple hookups without high-loss Y-adapters or signal splitters. Music reaches the amp and passes through it with clarity and fidelity.
The GTO24001 includes a remote bass-level control connector for on-the-fly bass-output changes. Plug the optional remote level control into the connector, and you can adjust the level of bass as you drive.
