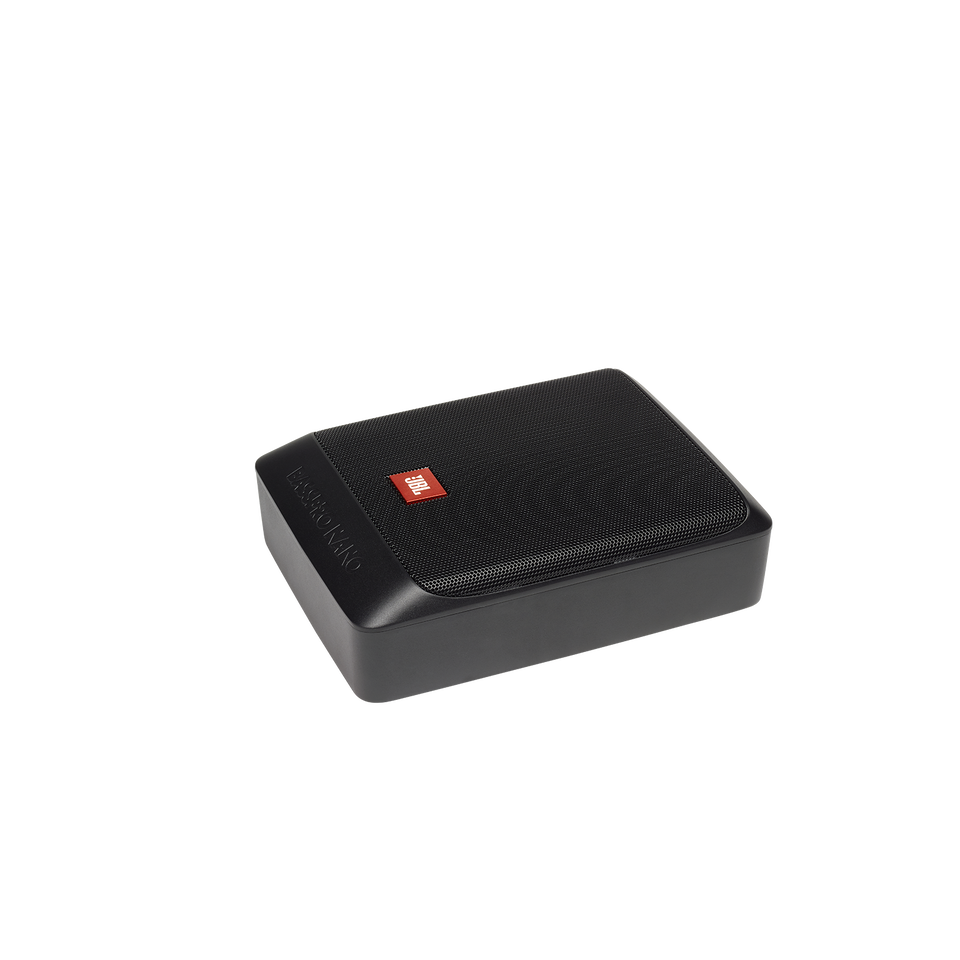

JBL BassPro Nano
Ultra-Compact Under Seat Powered Subwoofer System
Sold from 2019 until now
Documents & Downloads
Product Specifications
- Driver Complement
- 6"x8"(152mmx203mm) Subwoofer
- Amplifier Power
- 100Wrms; 200W Max
- Frequency Response
- 30Hz – 150Hz
- Fuse
- 15A
- Maximum Current Draw
- 13 A
- Quiescent Current Draw
- <600 mA
- Input Sensitivity
- 0.1 V – 4.0 V Low-Level Input; 0.25 V – 20V High-Level Input
- Crossover Frequency
- 50 Hz – 150 Hz
- Crossover Slope
- 12 dB/octave
- Bass Boost
- 0dB to + 12dB @ 50Hz
- Dimensions (L x W x H)
- 10-1/4" x 7-11/16" x 2-15/16"(260.0mm x 195.0mm x 74.6mm)
- Weight
- 7.78 lbs (3.53kg)
Deep Bass Without Taking Up Space
JBL's BassPro NANO delivers deep bass and takes up little space. JBL's smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Its rugged all-die-cast aluminum enclosure with anodized textured matte black finish, which looks great. Powered by a 100Watt Amplifier, BassPro Nano delivers punchy, tight bass you would expect from JBL, all while running cool and drawing minimal current from your vehicles charging system.
JBL BassPro Nano delivers bumping bass and takes up little space. The on-board 100Wrms amplifier has been performance matched to subwoofer to deliver the amount of clear, tight bass.
The BassPro Nano employs high-pass filters and limiters that deliver exceptional at-the-limits performance.
The rugged all-die-cast aluminum enclosure design in anodized textured matte black not only minimizes size but also eliminates rattles to deliver clear bass from tiny space.
Bass Volume Remote control is included to let you adjust the sound from the driver's seat.
