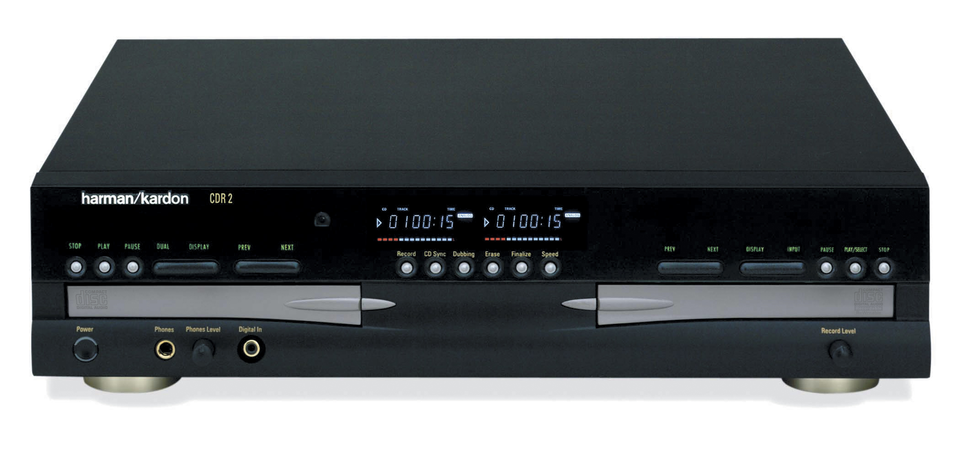

CDR 2
2-Drawer CD-R & CD-RW Player/ Recorder
Sold from 1999 until 2000
| Successor Product: | CDR 30 |
|---|---|
| Made in: | USA |
Documents & Downloads
Product Specifications
- Digital Input Sample Rates
- RECORD... 32kHz – 96kHz
- Frequency Response
- 2Hz – 20,050Hz
- Playback Sampling Frequency
- 44.1kHz
- Power Requirements
- AC 120V/60Hz
- D/A Conversion
- 96kHz, Multi-Bit Delta-Sigma Conversion
- Power Consumption
- 48 Watts
- Signal-to-Noise Ratio
- 105dB (playback)
- Signal-to-Noise Ratio
- RECORD... 91dB (recording - analog)
- Oversampling
- 128 Times
- Playback Dynamic Range
- 105dB
- Signal-to-Noise Ratio
- RECORD... Equal to Source (digital dub mode)
- Signal-to-Noise Ratio
- RECORD... Source – 10dB (digital external source)
- Total Harmonic Distortion
- 0.005%/-88dB (playback)
- Analog Audio Output
- 2V RMS, (±2dB)
- Recording Dynamic Range
- RECORD... 91dB
- Digital-Coaxial Output
- 0.5Vpp/75 ohms
- Total Harmonic Distortion
- RECORD... 0.005%/-85dB (recording)
- Headphone Output
- 1V RMS/32 ohms Load
- Input Sensitivity
- RECORD... ANALOG - 330mV RMS 47k ohms = 0dB
- Digital Inputs (Direct Recording)
- RECORD... 44.1kHz, ±100ppm/min.
- MSRP U.S.
- $799.95 each
- Width
- 17.3 inch (440mm)
- Height
- 4.4 inch (112mm)
- Depth
- 14.2 inch (363mm)
- Weight
- 13.2lb (6kg)
World's First CD-R Audio Deck with 4x Dub Speed (2x for CD-RW). Front-Panel Coax Digital Input. Audiophile-Grade, 24-Bit/96kHz AKM D/A and A/D Converters. Serial-Copy Management System. Headphone Output with Level Control. Repeats Entire Disk, Track, or A-B Selection. Prior season's model.
