Product Specifications
- Power Requirements
- AC 120V/60Hz
- Power Consumption
- 65W idle, 540W maximum (5 channels driven)
- Digital Inputs (coaxial/optical)
- 2/2 on rear; 1/1 on front
- HDMI
- Two inputs/1 output, switching only. Simplay HD verified.
- Analog Inputs
- 1 A/V on front panel
- Analog Inputs
- 2 audio-only
- Analog Inputs
- 3 A/V on rear panel
- Analog Inputs
- 6-channel input
- Analog Inputs
- The Bridge/DMP
- Analog Inputs
- tuner
- On-Screen Display
- Yes
- Multizone Capability
- No
- Auto Setup
- No
- Remote Control
- Ten-device, programmable remote
- Shipping Weight (System, Accessories, Packing)
- 26 lb (11.8kg)
- MSRP U.S.
- $349.95 each
- # of Amplifier Channels
- 5
- Continuous Average Power (FTC) per Channel (stereo mode)
- 40 Watts per channel, 20Hz – 20kHz, @ <0.07% THD, both channels driven into 8 ohms
- Front L & R Channels
- 30 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Center Channel
- 30 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Surround Channels
- 30 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Input Level/Impedance
- 200mV/47k ohms - Linear (High-Level)
- Signal-to-Noise Ratio
- 100dB (IHF-A)
- Surround System Adjacent Channel Separation:
- Dolby Pro Logic I and II
- 40dB
- Dolby Digital
- 55dB
- DTS
- 55dB
- Frequency Response
- 10Hz – 130kHz (+0/-3dB @ 1 watt)
- Transient Intermodulation Distortion (TIM)
- Unmeasurable
- Slew Rate
- 40V/µsec
- Width
- 17-5/16 inch (440mm)
- Height
- 6-1/2 inch (165mm)
- Depth
- 15 inch (382mm)
- Weight
- 21.12 lb (9.6kg)
- Dimensions:
- Carton Dimensions (W x H x D)
- 22 inch x 10-1/2 inch x 18-3/4 inch (559mm x 267mm x 476mm)
- Television Format
- NTSC
- Input Level/Impedance
- 1V p-p/75 ohms
- Output Level/Impedance
- 1V/75 ohms
- Video Frequency Response:
- Composite and S-Video
- 10Hz – 8MHz (–3dB)
- Component Video
- 10Hz – 100MHz (–3dB)
- HDMI
- Switching
- Frequency Range
- AM... 520 – 1720kHz
- Frequency Range
- FM... 87.5 – 108.0MHz
- Signal-to-Noise Ratio
- AM... 45dB
- Usable Sensitivity
- FM... IHF 1.3µV/13.2dBf
- Signal-to-Noise Ratio
- FM... Mono/Stereo 70/68dB
- Usable Sensitivity
- AM... Loop 500µV
- Distortion
- AM... 1kHz, 50% Mod 0.8%
- Distortion
- FM... Mono/Stereo 0.2/0.3%
- Selectivity
- AM... ± 10kHz, 30dB
- Stereo Separation
- FM... 40dB @ 1kHz
- Selectivity
- FM... ± 400kHz, 70dB
- Image Rejection
- FM... 80dB
- IF Rejection
- FM... 90dB
- Amplifier Power (RMS)
- 30 x 5 @ 8 ohms (20Hz – 20kHz, <0.07% THD) (all channels driven at full power)
- High Instantaneous Current Capability (HCC)
- ± 25 Amps

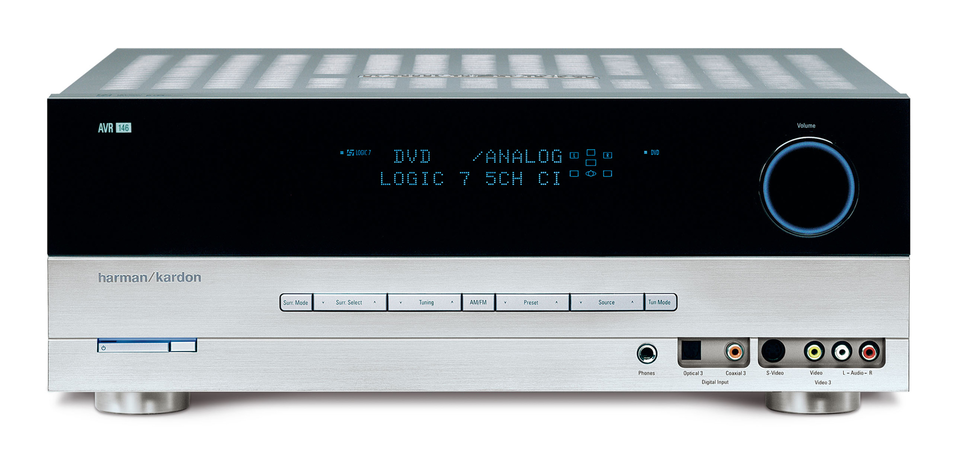

Affordably priced, but full-featured. The AVR 146's sonic quality and sophisticated features make it an exceptional value. From two-input, Simplay HD;-verified HDMI; switching to the latest Cirrus Logic 49510 DSP, A/V Sync Delay and a high-current amplifier, the AVR 146 is modest in price, but high in performance.
