Product Specifications
- Power Requirements
- 120V/60Hz
- Power Consumption
- 119W idle 694W maximum (2 channels driven)
- MSRP U.S.
- $2799.95 each
- Continuous Average Power (FTC) per Channel (stereo mode)
- 125 watts per channel into 8 ohms @ 20Hz – 20kHz, <0.07% THD, both channels driven
- Surround System Adjacent Channel Separation:
- Pro Logic Decoding
- 40dB
- Dolby Digital
- 55dB
- DTS
- 55dB
- Frequency Response
- 10Hz – 100kHz (+0/-3dB @ 1 watt)
- Transient Intermodulation Distortion (TIM)
- Unmeasurable
- Slew Rate
- 40V/µsec
- Front L & R Channels
- 110 watts per channel into 8 ohms @ 20Hz – 20kHz, <0.07% THD, all channels driven
- Center Channel
- 110 watts per channel into 8 ohms @ 20Hz – 20kHz, <0.07% THD, all channels driven
- Surround Channels
- 110 watts per channel into 8 ohms @ 20Hz – 20kHz, <0.07% THD, all channels driven
- Input Level/Impedance
- 200mV/47k ohms - Linear (High-Level)
- Signal-to-Noise Ratio
- 95dB (IHF-A)
- Weight
- 53 lb (24kg)
- Dimensions (H x W x D)
- 7-5/8 inch x 17-5/16 inch x 20-1/2 inch (194mm x 440mm x 521mm)
- Television Format
- NTSC
- Input Level/Impedance
- 1Vp-p/75 ohms
- Output Level/Impedance
- 1V/75 ohms
- Composite and S-Video
- 10Hz – 8MHz (–3dB)
- Component Video
- 10Hz – 30MHz (–3dB)
- Image Rejection
- FM... 80dB
- IF Rejection
- FM... 90dB
- Frequency Range
- AM... 520–1710kHz
- Frequency Range
- FM... 87.5–108.0MHz
- Signal-to-Noise Ratio
- AM... 45dB
- Usable Sensitivity
- FM... IHF 1.3µV/13.2dBf
- Signal-to-Noise Ratio
- FM... 70/68 dBA (Mono/Stereo)
- Usable Sensitivity
- AM... Loop 500µV
- Distortion
- AM... 1kHz, 50% Mod. 0.8%
- Distortion (Mono/Stereo)
- FM... 0.2/0.3%
- Selectivity
- AM... ± 10kHz, 30dB
- Stereo Separation
- FM... 40dB @ 1kHz
- FM Adjacent Channel Selectivity
- FM... #ERROR!
- High Instantaneous Current Capability (HCC)
- ± 85 Amps

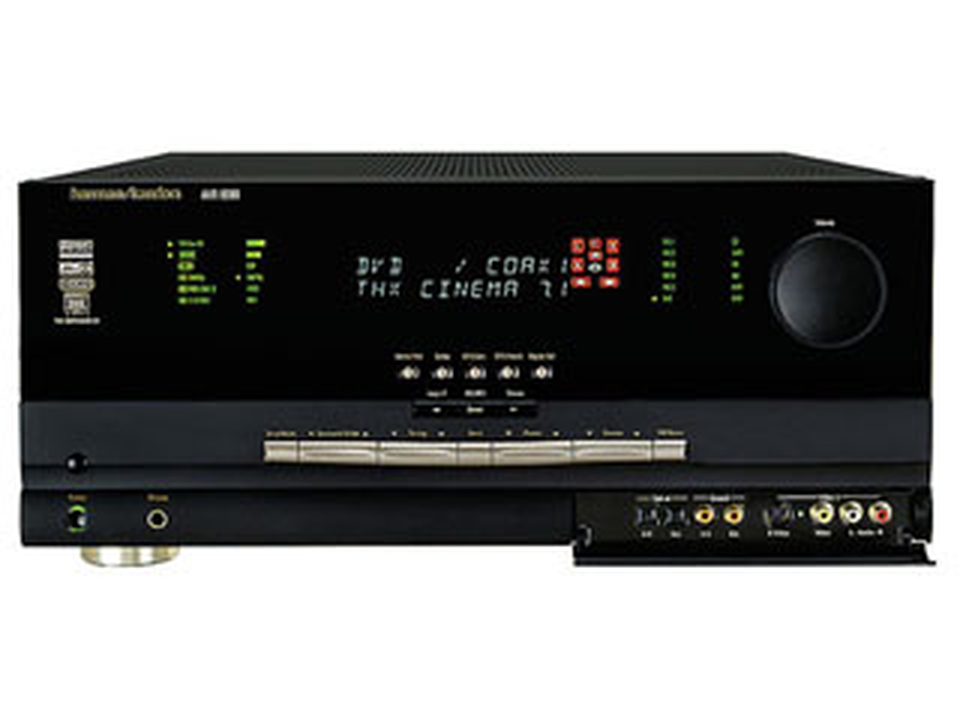

See and hear it all, the way it was meant to be seen and heard! The AVR 8000 turns any input source, from the latest Dolby Digital Surround EX; soundtrack to a vintage two-channel recording, into a stunning entertainment experience. Dual 24-bit, twin-core Cirrus processors are combined with 192kHz/24-bit audiophile-grade digital-to-analog converters to extract a clarity that less advanced circuitry can't handle, while a high-current, ultrawide-bandwidth amplifier delivers the power. Sophisticated installations will benefit from three wide-bandwidth component video inputs, our exclusive front-panel digital inputs and outputs, and a multizone system complete with video and audio outputs, while everyone will enjoy the precision sound imaging made possible by the combination of THX Ultra processing and DTS or Logic 7 decoding.
