Product Specifications
- Power Requirements
- AC 120V/60Hz
- Power Consumption:
- Digital Inputs (coaxial/optical)
- 2/2 on Rear; 1/1 on front
- Standby:
- 8.9W
- Analog Inputs
- 1 A/V on front panel (switchable to output)
- Analog Inputs
- 2 audio-only
- Analog Inputs
- 5 A/V on rear panel
- Analog Inputs
- 6-/8-channel input
- Analog Inputs
- tuner
- Idle:
- 52W
- Max (7 channels driven):
- 760W
- On-Screen Display
- Yes
- Multizone Capability
- Audio; A-BUS Ready; RS-232 serial control port; surround back channels assignable to remote zone; Zone II remote
- Auto Setup
- EzSet remote
- Remote Control
- Backlit, eight-device, programmable learning remote(2-line LCD display)
- Shipping Weight (System, Accessories, Packing)
- 26.4 lb (12 kg)
- MSRP U.S.
- $1499.95 each
- # of Amplifier Channels
- 7
- Continuous Average Power (FTC) per Channel (stereo mode)
- 70 Watts per channel, 20Hz – 20kHz, @ <0.15% THD, both channels driven into 8 ohms
- Front L & R Channels
- 70 Watts per channel @ <0.15% THD, 20Hz – 20kHz into 8 ohms
- Center Channel
- 70 Watts @ <0.15% THD, 20Hz – 20kHz into 8 ohms
- Surround Channels (L & R Side, L & R Back)
- 70 Watts per channel @ <0.15% THD, 20Hz – 20kHz into 8 ohms
- Input Level/Impedance
- 200mV/47k ohms - Linear (High-Level)
- Signal-to-Noise Ratio
- 97dB (IHF-A)
- Surround System Adjacent Channel Separation:
- Dolby Pro Logic I/II/IIx
- 40dB
- Dolby Digital
- 55dB
- DTS
- 55dB
- Transient Intermodulation Distortion (TIM)
- Unmeasurable
- Width
- 17.3 inches (440mm)
- Height
- 4.5 inches (114mm)
- Depth
- 18.8 inches (476mm)
- Weight
- 23.1 lb (10.5kg)
- Dimensions:
- Carton Dimensions
- 22.6 inches x 8.9 inches x 21.9 inches (573mm x 225mm x 555mm)
- Television Format
- NTSC
- Input Level/Impedance
- 1Vp-p/75 ohms
- Output Level/Impedance
- 1V/75 ohms
- Video Frequency Response:
- Composite and S-Video
- 10Hz – 8MHz (–3dB)
- Component Video
- 10Hz – 50MHz (–3dB)
- Frequency Range
- AM... 520 – 1720kHz
- Frequency Range
- FM... 87.5 – 108.0MHz
- Signal-to-Noise Ratio
- AM... 45dB
- Usable Sensitivity
- FM... IHF 1.3µV/13.2dBf
- Signal-to-Noise Ratio
- FM... 70/68 dBA (Mono/Stereo)
- Usable Sensitivity
- AM... Loop 500µV
- Distortion
- AM... 1kHz, 50% Mod 0.8%
- Distortion (Mono/Stereo)
- FM... 0.2/0.3%
- Selectivity
- AM... ± 10kHz, 30dB
- Stereo Separation
- FM... 40dB @ 1kHz
- Selectivity
- FM... ± 400kHz, 70dB
- Image Rejection
- FM... 80dB
- IF Rejection
- FM... 90dB
- Amplifier Power (RMS)
- 70 x 7 @ 8 ohms (20Hz – 20kHz, <0.15% THD) (all channels driven at full power)

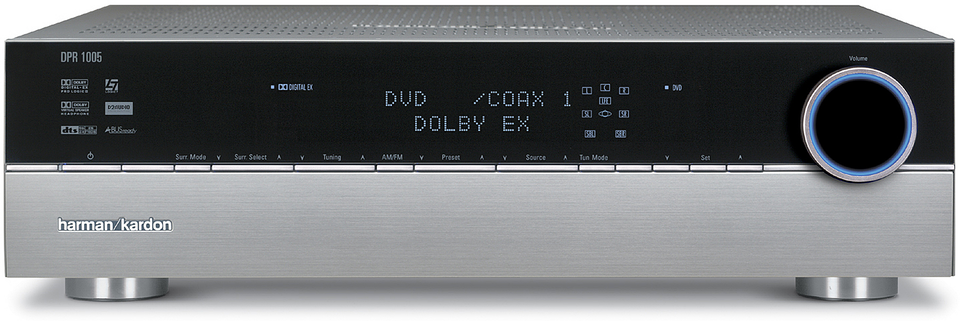

Digitally delightful. If you've always wanted a feature-packed audio/video receiver, but never thought one could fit in a small space, the DPR 1005 is a digital dream come true. Thanks to our digital path technology, you have access to a wide range of inputs and processing modes to power your system without missing a beat. Along with assignable, HD-compatible component video inputs, renameable audio inputs, and a full palette of surround sound modes and control options, the DPR 1005 excels at doing what you demand from your audio products - reproducing the original performance or movie soundtrack as it was meant to be heard!
