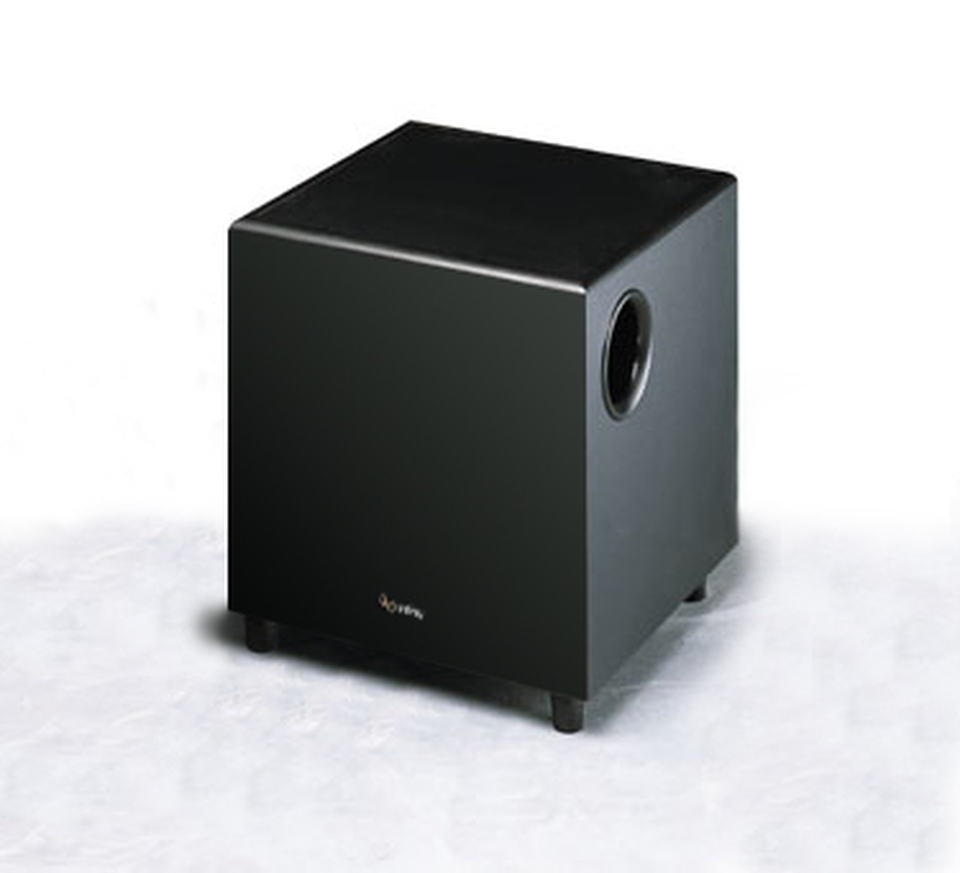

Complete Minuette System/ BU-2 Powered Sub (6-PC) (BU2,MINUETTE CENTER,MINUETTE LMPS)

Sold from 1997 until 1999

Successor Product: HTS 20
Made in: USA

Documents & Downloads

Product Specifications

MSRP U.S.
$999.95 per system
Subwoofer Transducer
specially designed 12 inch poly-cone
Crossover Frequency(ies)
coninuously variable, 50 – 200Hz
Frequency Response
30Hz – 150Hz (±3dB)
Sensitivity
LINE LEVEL... 70mV RMS
Sensitivity
HIGH LEVEL... 1.7V RMS
Nominal Impedance
5k ohms (low level),12k ohms (high level)
Amplifier Power (RMS)
100 watts
Frequency Response
150Hz – 20kHz
Crossover Frequency(ies)
5kHz
Sensitivity (2.83 volts @ 1 meter)
87dB
Nominal Impedance
8 ohms
Recommended Amplifier Power (RMS)
15 – 80 watts RMS
Low-Frequency Transducer (Woofer)
3.5 inch paper cone
High-Frequency Transducer (Tweeter)
.5 inch (13mm) polycarbonate dome (w/acoustic lens)
Frequency Response
150Hz – 20kHz
Crossover Frequency(ies)
5kHz
Sensitivity (1 watt @ 1 meter)
87dB
Nominal Impedance
compatible w/8 ohms
Recommended Amplifier Power (RMS)
Use w/amps rated betwn 15 – 80 watts RMS
Low-Frequency Transducer (Woofer)
3.5 inch shielded
High-Frequency Transducer (Tweeter)
.5 inch (13mm) polycarbonate dome (w/acoustic lens)
