CAS 3.1
3-Way 9 inch In-Wall Loudspeaker
Documents & Downloads
Product Specifications
- Finish
- White
- Low-Frequency Transducer (Woofer)
- 9 inch CMMD
- Technology
- CMMD
- Midrange Transducer
- 3-1/2 inch CMMD
- High-Frequency Transducer (Tweeter)
- 1 inch (25mm) CMMD
- Frequency Response
- 32Hz – 22kHz (±3dB)
- Sensitivity (2.83 volts @ 1 meter)
- 90dB
- Recommended Amplifier Power (RMS)
- 15 – 200 Watts
- Nominal Impedance
- 8 ohms
- Crossover Frequency(ies)
- 400Hz, 2800Hz 24dB/octave
- MSRP U.S.
- $999.95 each
- Weight
- 15 lb
- Dimensions
- Wall Cutout – 19-1/8 inch x 12-1/2 inch
- Dimensions (H x W x D)
- Outer – 22-1/8 inch x 14-7/8 inch x 3-1/2 inch* (*Depth excludes grille)

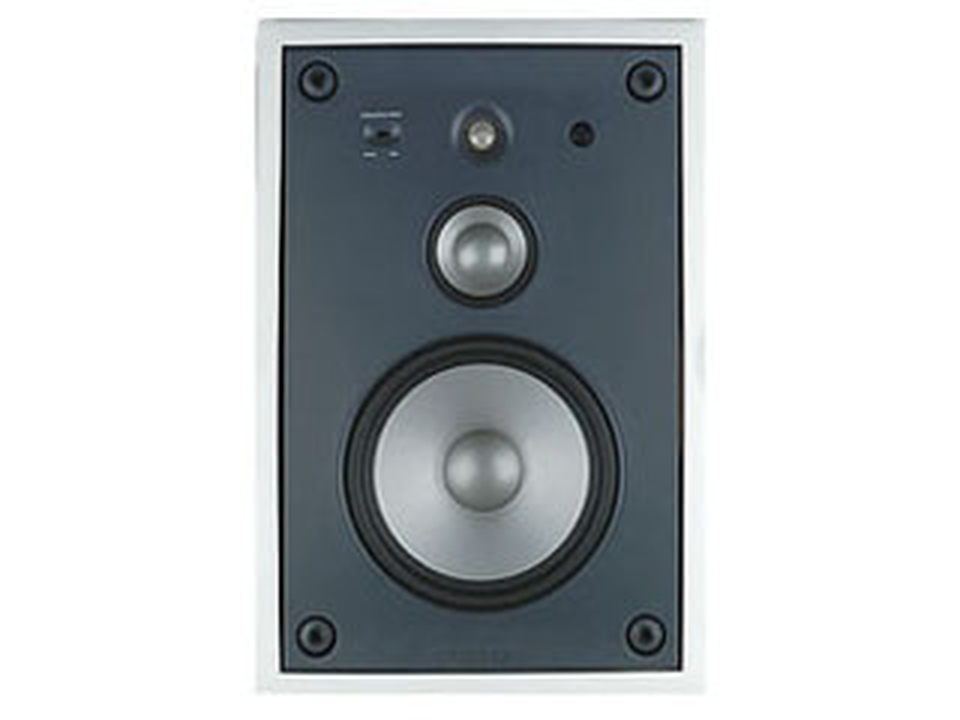

3-Way 9 inch in-wall loudspeaker incorporating Infinity's proprietary CMMD; driver technology, Baffle Isolation System; and Listening Window Selector.
