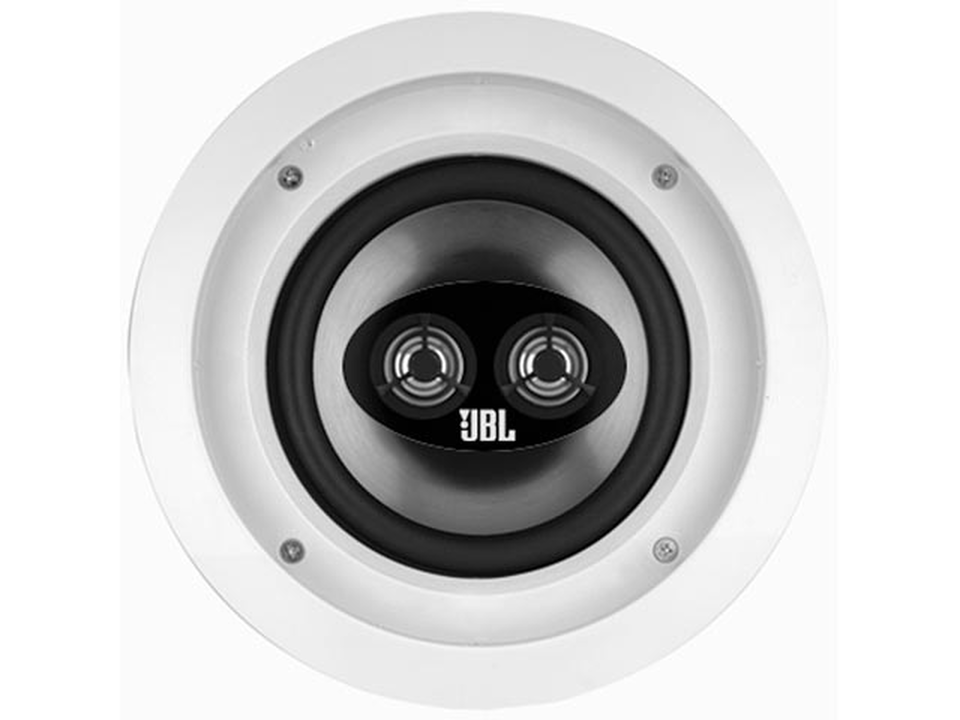

PERFORMANCE INTEGRATOR IS 6DT
2-Channel, Dual-Tweeter/Dual-Voice-Coil In-Ceiling Speaker
Sold from 2006 until 2012
Documents & Downloads
Product Specifications
- Recommended Amplifier Power (RMS)
- 100 Watts total (50WPC)
- Sensitivity (2.83 volts @ 1 meter)
- 88dB
- Frequency Response
- 40Hz – 20kHz (-10dB)
- Crossover Frequency(ies)
- 2.6kHz
- High-Frequency Transducer (Tweeter)
- Dual 3/4 inch titanium-laminate domes with swivel mounts
- Low-Frequency Transducer (Woofer)
- 6-1/2 inch Titanium-laminate cone with rubber surround
- MSRP U.S.
- $199.95 per pair
- Plate Size (Diameter)
- 9-3/16 inch (233mm)
- Mounting Depth
- 4-1/4 inch (108mm)
- Cutout Dimensions
- 7-7/8 inch (200mm)
JBL Integrator Series loudspeakers are made up of lightning-fast titanium-dome tweeters with proprietary EOS waveguides, titanium-laminate-cone woofers and outstanding frequency response. The IS6DT is a stereo version of the IS6C ceiling speaker, providing a single speaker solution for remote rooms in distributed audio systems or for the rear channels of a home theater system. Optional rough-in-frames are available for new construction.
