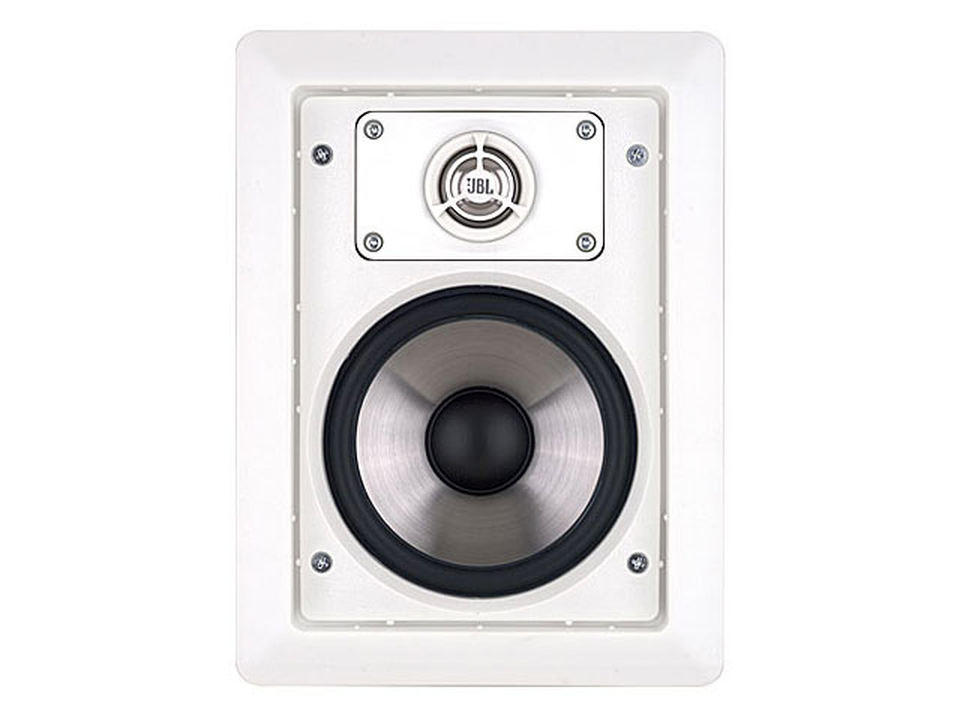

SOUNDPOINT SP 5

2-Way 5-1/4 inch In-Wall Speaker

Sold from 2001 until 2006

Predecessor Product:	AS 5
Successor Product:	SP5II
Made in:	China

Documents & Downloads

Other

DIY Troubleshooting (English) 121.84 KB

Product Specifications

General Specifications

Sensitivity (2.83 volts @ 1 meter): 87dB

Low-Frequency Transducer (Woofer): 5-1/4 inch Titanium-laminate cone with rubber surround

High-Frequency Transducer (Tweeter): 1 inch (25mm) Titanium-laminate dome with EOS waveguide and swivel mount

Recommended Amplifier Power (RMS): 60

Frequency Response: 45Hz – 20kHz (-10dB)

Crossover Frequency(ies): 2.4kHz

MSRP U.S.: $249.95 per pair

Dimensions

Plate Size (W x H): 7-1/2 inch x 10 inch(191mm x 254mm)

Mounting Depth: 3-3/4 inch (95mm)

Cutout Dimensions: 6-1/8 inch x 8-11/16 inch(156mm x 221mm)

This 2-way in-wall loudspeaker delivers powerful, clear JBL sound in a spacesaving package. The Titanium-laminate cone woofer with rubber surround delivers tight bass for extended listening sessions. Includes integrated dog-ear brackets for retrofit applications. Optional snap-together rough-in frames (RIF5) available separately for new construction.
