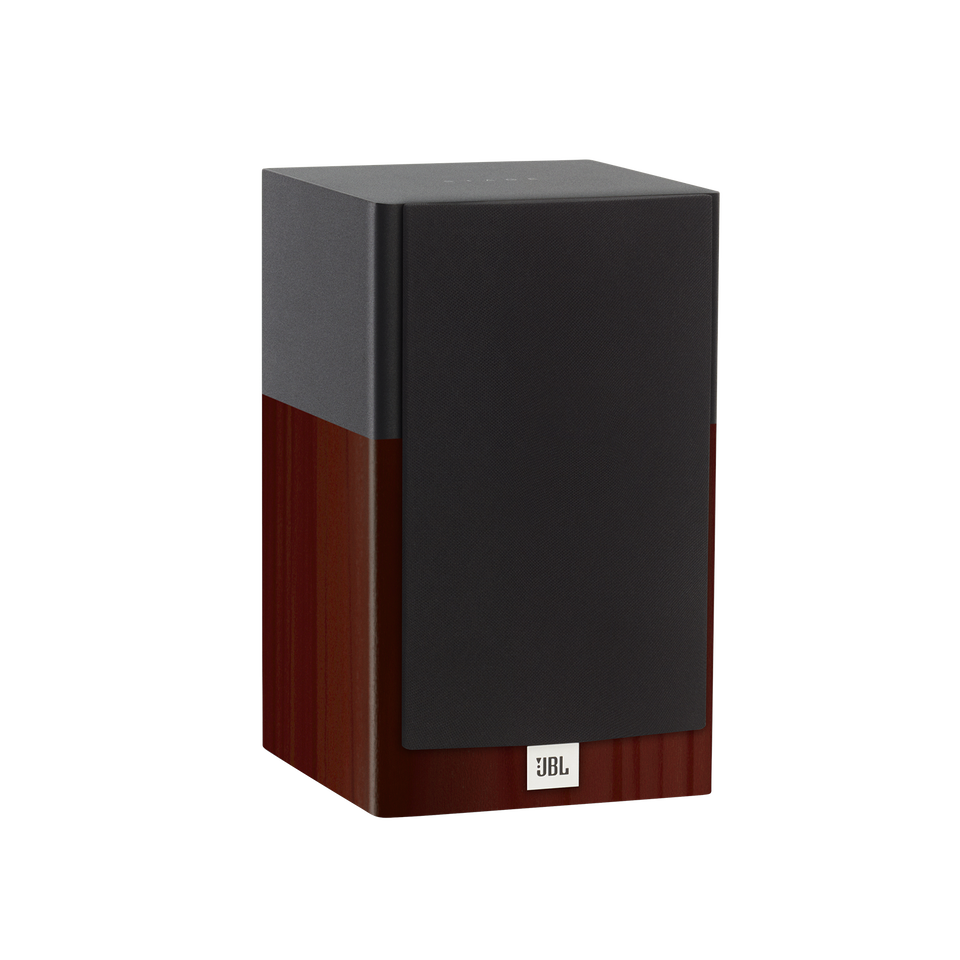

JBL Stage A120

4.5-inch (114mm) 2-way Bookshelf Loudspeaker

Sold from 2018 until now

Getting started with your JBL Stage A120

Documents & Downloads

Other

Product Specifications

General Specifications

2 way, 4.5" woofer, 1" aluminum tweeter bookshelf/surround loudspeakers

4.5" (114mm) Polycellulose Low-Frequency Woofer

New High Definition Imaging (HDI) Waveguide

1” (25mm) Aluminum Dome Tweeter

Recommended Amplifier Power: 20 – 125W

Frequency Response: 60Hz – 40kHz

Sensitivity: 86dB @ 1M, 2.83V

Nominal Impedance: 6 Ohms

Crossover Frequencies: 3.2kHz

Enclosure Type: Bass-Reflex via Rear-Firing Tuned Port

Dimensions (W x D x H): 170 x 170 x 285mm

Weight (each): 8.40 lbs (3.81kg)

Country of origin: China

JBL A120

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the Stage A120 is the 4.5-inch 2-way bookshelf loudspeaker of the JBL Stage Series. The narrow footprint features a 2-way design with patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Aluminum dome tweeter, and 4.5-inch (114mm) Polycellulose cone woofers for signature JBL bass.
