Voice2

Voice2

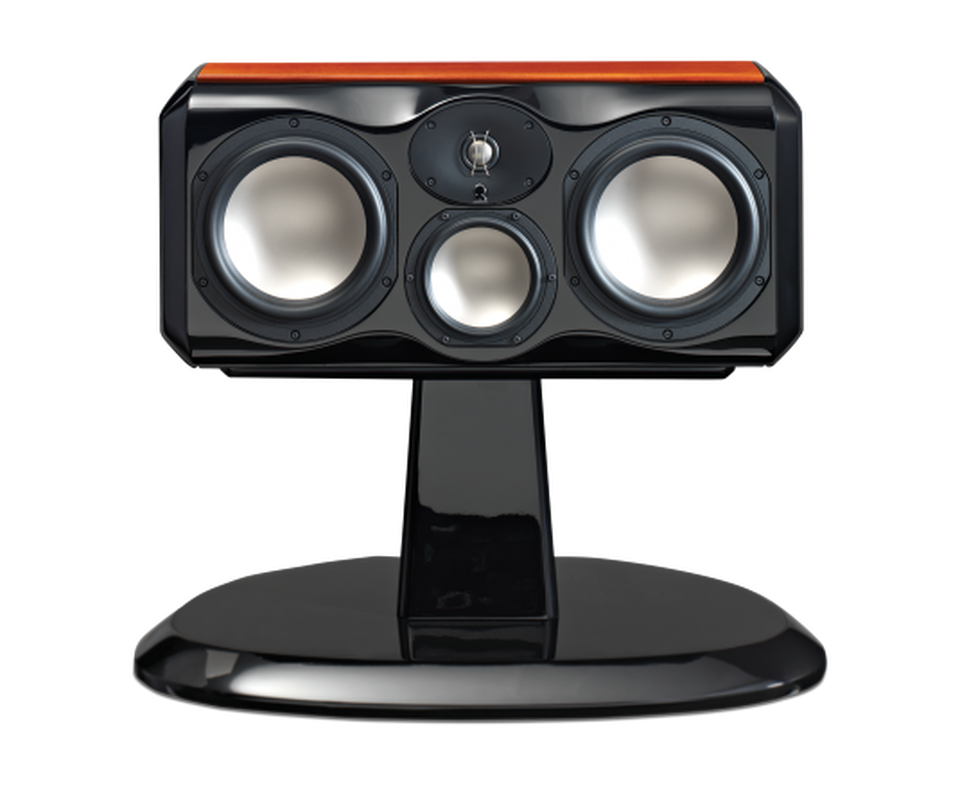

Ultima2 Loudspeaker Series, 3-Way Center Channel Loudspeaker

Documents & Downloads

Product Specifications

Frequency Response
3 dB from 60 Hz to 45 kHz ±0.5 dB from 65 Hz to 18 kHz ±1.0 dB from 65 Hz to 20 kHz
Height
14.7" (37.3 cm)
Width
25.5" (64.8 cm)
Depth
14" (35.6 cm)
Weight
62 lb (28.2 kg) Shipping weight
Crossover Frequencies
Three-way, high-order acoustic response @ 235 Hz and 2 kHz
Finishes
Piano black or mahogany finish
High-frequency Driver Components
1" (2.5 cm) beryllium tweeter
Nominal Impedance
6 ohms (nominal) 3.6 ohms (minimum @ 90 Hz)
Low Frequency Extension
-10 dB at 36 Hz -6 dB at 49 Hz -3 dB at 60 Hz
Low-frequency Driver Components
Two 8" (20 cm) titanium cone woofers
Mid-frequency Driver Components
5 ¼" (13.3 cm) titanium cone midrange
Sensitivity
89 dB SPL with 2.83 V @ 1m (4 pi anechoic)
Optional Accessories
Optional Floor Pedestal for Voice2 • Adds 24.2" (61.4 cm) to Voice2 height • Piano black finish only

Voice2

In a multichannel system, no single speaker is charged with a more important mission than the center channel. Often carrying as much as 75% of a modern cinema soundtrack at any one instant, the center channel is the acoustical anchor for the entire system. Which is why Revel created the Voice2 loudspeaker. Built with the same exacting standards for tonal accuracy resident in every Ultima2, the Voice2 enjoys an effortless command of dynamic contrasts, textural detail and resolving power. And its unflagging output permits it to articulate every musical crescendo and blockbuster special effect that comprise today’s multichannel and surround-sound experience. Drawn from Revel’s remarkable new family of Ultima2 transducers, Voice2 sports a pair of 8-inch woofers, and a 5 1/4-inch midrange and huge 2-inch diameter flat-wire voice coils. Voice2 offers not only an extraordinarily wide dynamic range, but the luxury of compression-free performance. Add the pristine resolution of the pure beryllium 1-inch Ultima2 series dome tweeter and computer-optimized high-order filter networks, and the Revel Ultima Voice2 will reproduce the softest utterance or the loudest concussion. By any standard Voice2 provides an elevated sonic experience at the most demanding output levels.
