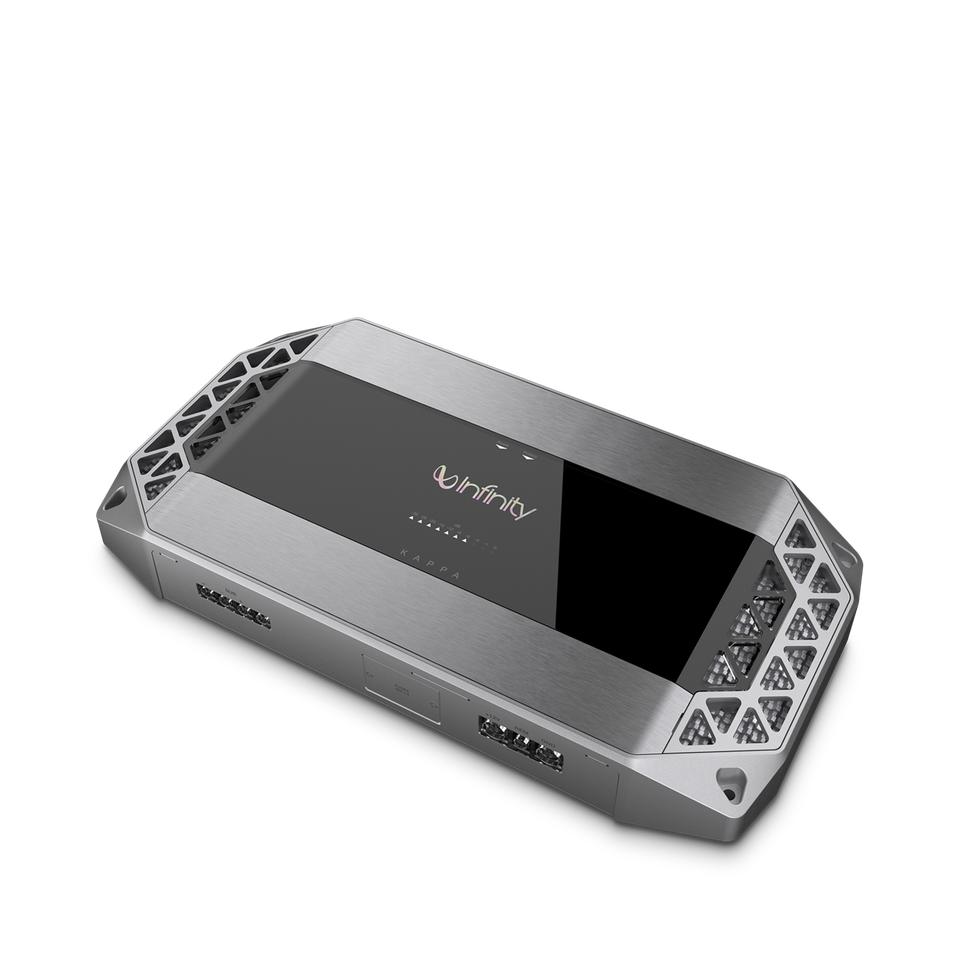

K1000

High-performance mono car audio subwoofer amplifier

ドキュメントとダウンロード

マニュアル

マニュアル（日本語） (英語) 2.15 MB

その他

製品情報 (英語) 860.55 KB

製品仕様

仕様一覧

Max Power: 2600W Peak

Signal-to-Noise Ratio: >80dB (ref 1W output @ 2Ω)

High-Efficiency, Low Distortion Class D Design

Noise-Rejecting Differential Inputs

Active LPF, variable 32 – 320Hz

Variable Line-Level and Speaker-Level Inputs (0.2 to 20V input range)

スピーカー仕様

Power Output, 2Ω: 1000Wrms x 1, <0.1% THD+N

Power Output, 4Ω: 700Wrms x 1, <0.1% THD+N

Kappa mono and full-range, multi-channel amplifiers deliver the efficiency and power you expect from Class D amps—and the performance you expect from Infinity.. Each model in the lineup will accept both high-level or low-level inputs, allowing the JBL Stadium amplifiers to be added to virtually any car audio system, including factory installed systems. The 2-, 4- and 5-channel amplifiers offer Bluetooth® audio streaming, exclusive Clari-Fi™ music restoration technology that analyzes and improves the audio quality of compressed files in real time, a multi-pairing Party Mode that lets anyone in the car stream music, and a cabin-mounted control panel. Kappa amplifiers give you the power to shape your car audio experience in new ways.

Class D amplification

Every Kappa amplifier, including the full-range models, is a Class D. These high-efficiency, low-heat amps generate a lot of power without drawing much current, and feature small footprints.

Upgradable firmware

Kappa amplifiers incorporate a mini-USB port that enables you to easily upgrade firmware.

ADAS Input

Four-channel, priority inputs on the full-range Kappa amplifiers override the playing source when a signal is detected from Advanced Driver Assistance Systems.

DBO™ (Dynamic Bass Optimizer)

Kappa amps feature a subsonic filter in with variable frequency and Q. For sealed enclosures, set the Frequency Control to 35Hz, and then adjust the Boost Control to your preference. For vented enclosures, set the Frequency Control to 10Hz below the port tuning, then adjust the Boost control to your preference.

Sleek design

Sometimes, an amp can be as stylish as it powerful. With brushed steel and screwdriver access concealed by a magnetically attached panel, Kappa amplifiers have a clean, streamlined industrial design.
