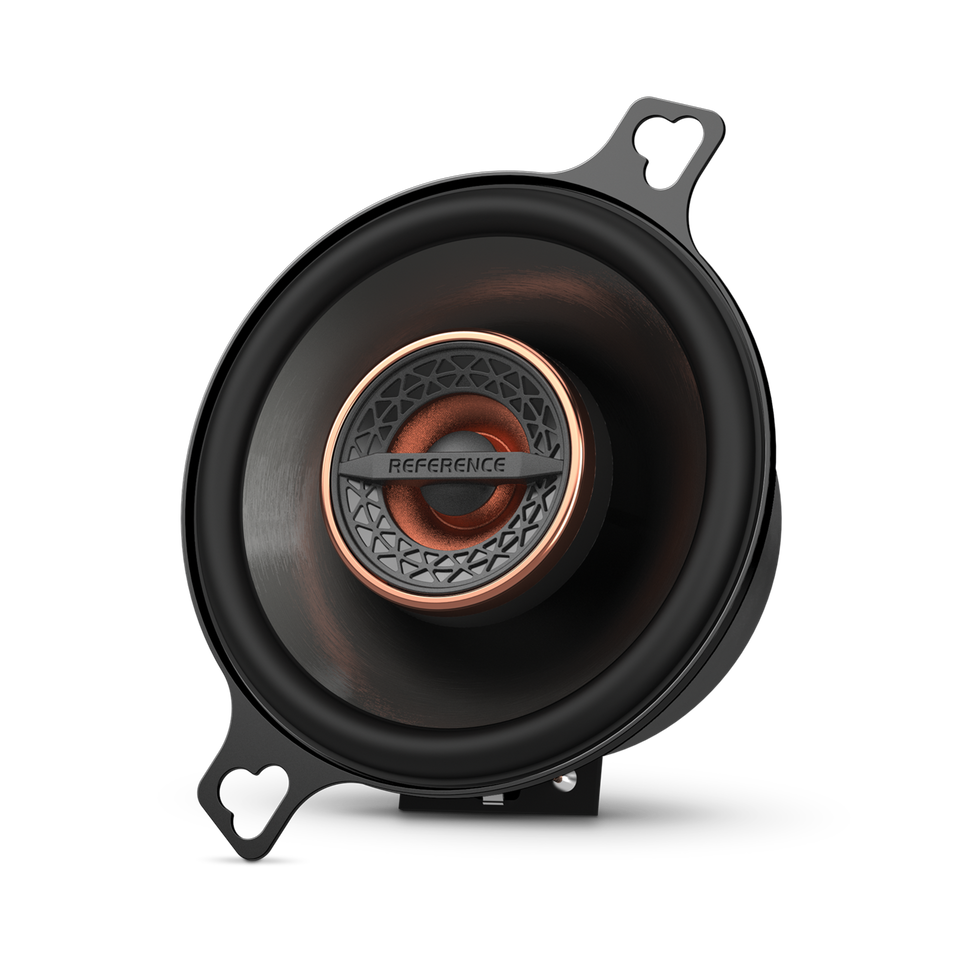

Reference 3022cfx

3-1/2" (87mm) coaxial car speaker

ドキュメントとダウンロード

マニュアル

マニュアル（日本語） (英語) 9.42 MB

その他

Infinity Passive Speaker Warranty Card 52.51 KB

製品仕様

仕様一覧

Description: 3-1/2" (87mm) coaxial car speaker

Power Handling: 25W RMS, 75W peak

Sensitivity (@ 2.83V): 91dB

Frequency Response: 85Hz – 21kHz

Impedance: 3.0 ohms

Accurate, high performance sound

New Reference speakers are designed to deliver Infinity’s signature sound in more vehicles. They feature edge-driven textile tweeters for smooth, clear highs and the larger models ofter an adjustable tweeter output level control for optimization based on installation location. Oversized Plus One™ woofers offer more surface area for higher bass output and enhanced midrange performance. Plus our newly engineered basket is optimized to fit most factory openings. Available in a range of standard sizes—3", 4", 5-1/4", 6-1/2", 6" x 8" and 4" x 6" coaxial, 6" x 9" 3-way, and 5-1/4", 6-1/2", and 6" x 9" component—they’re the perfect upgrade from factory speakers.

Edge-driven, textile tweeters

The tweeters in Infinity Reference speakers play smooth, never-harsh regardless of output level.

Adjustable tweeter output level

The larger Reference coaxial models and the component systems offer a tweeter output level control of 0dB or +3dB to optimize system linearity based on installation location.

Plus One™ woofer cone architecture

Harman’s patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other cones in its class — the result is higher sensitivity, increased low-frequency output and greater musical character.

Optimized Frame Size

Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit in just about any vehicle on the road today. That means signature Infinity sound in more vehicles.
